Plan Overview
A Complete Attached Casita In 450 Square Feet
The plan uses a 15-foot by 30-foot overall casita extent alongside an existing residence.
A 128-square-foot bedroom, full bath, closet, laundry, and open living and kitchen area create an independent suite.
Laundry Included
A dedicated laundry area is shown in the source layout.
Attached Design
The plan is configured to connect with an existing building.
Interior & Exterior Renderings

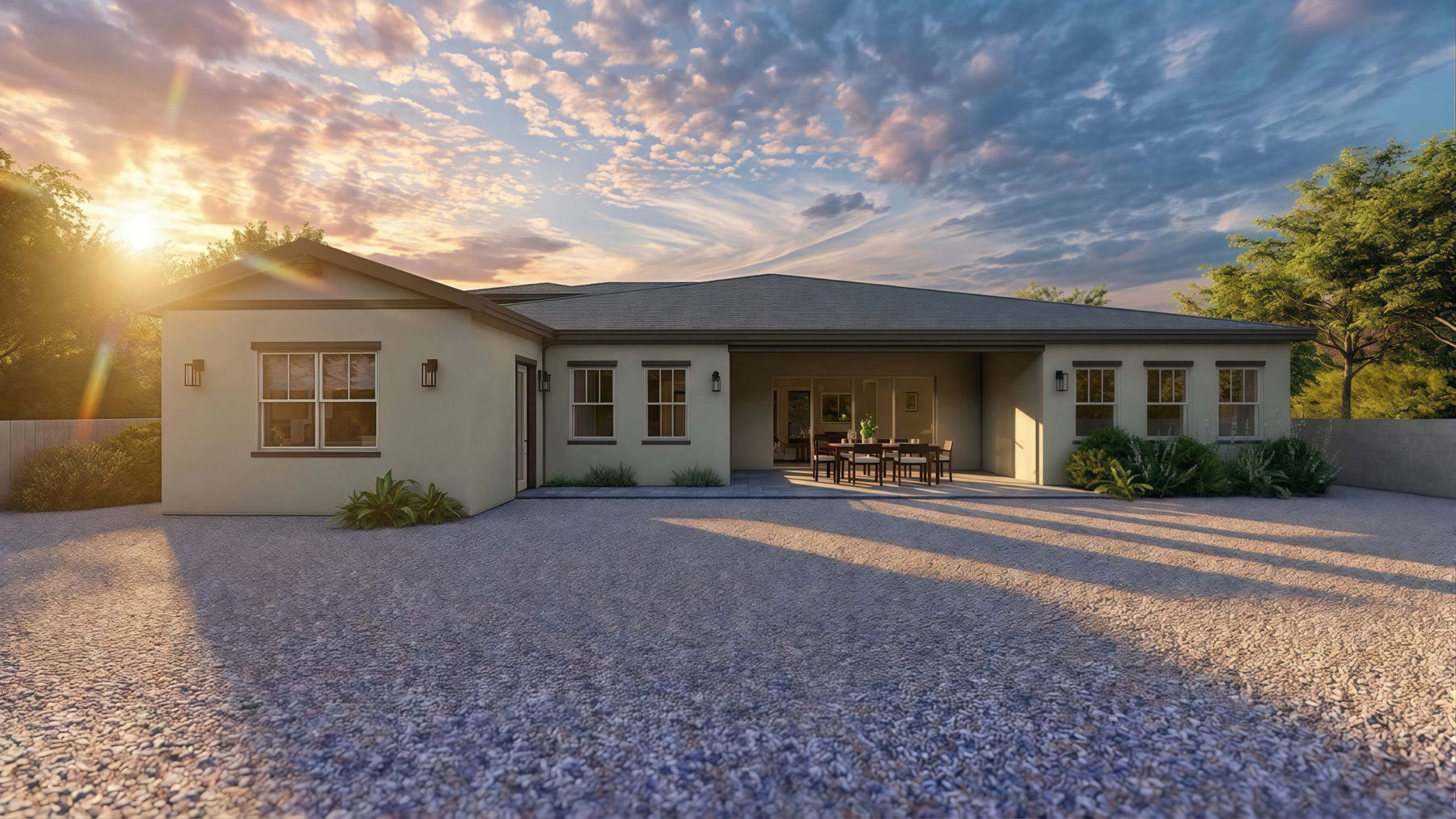

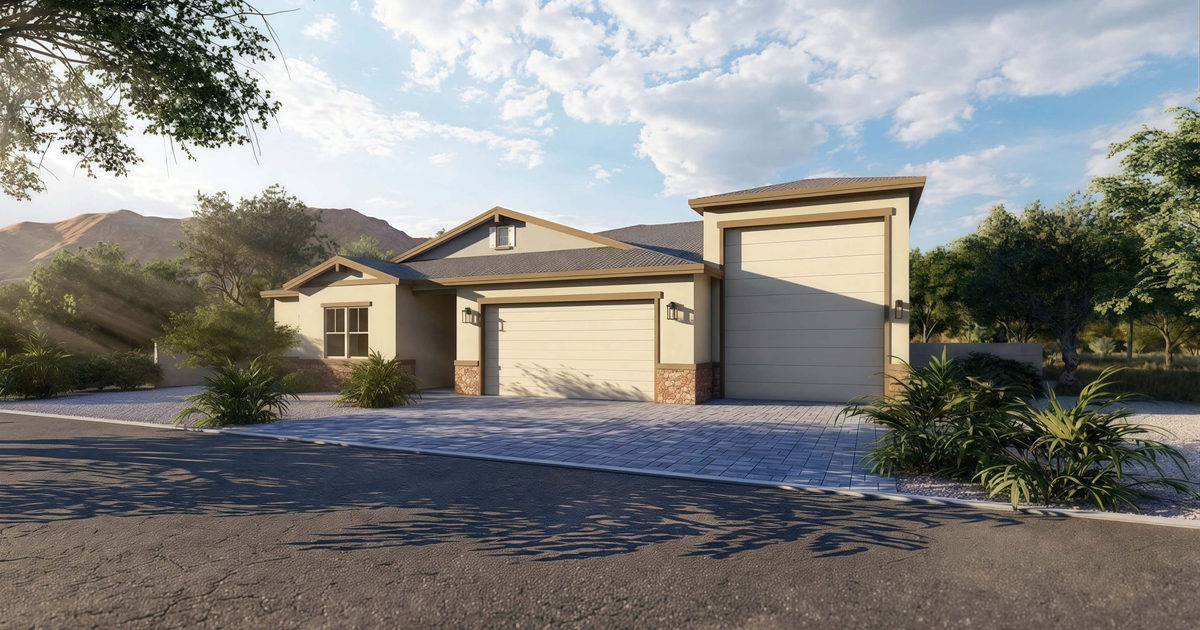

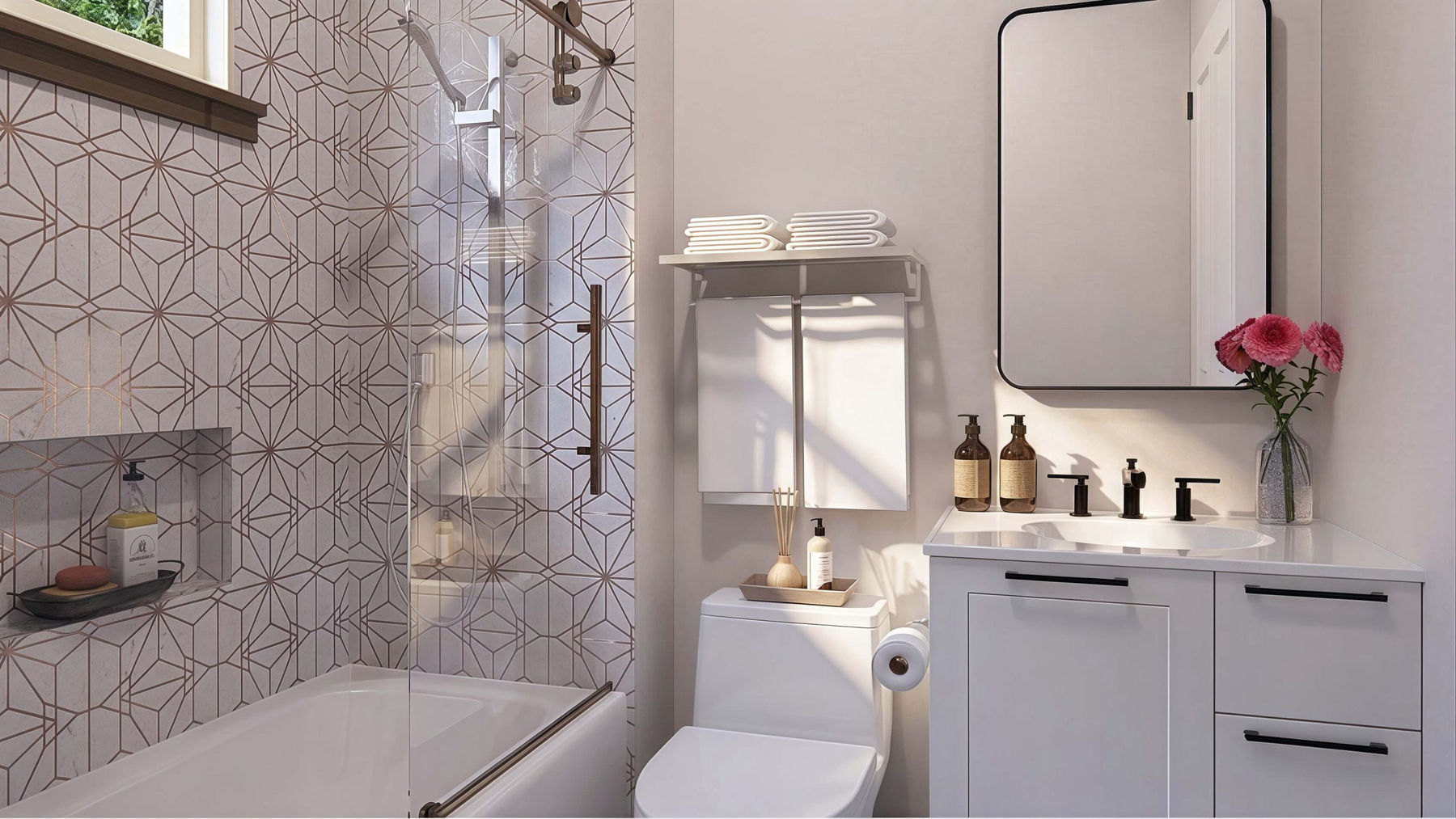

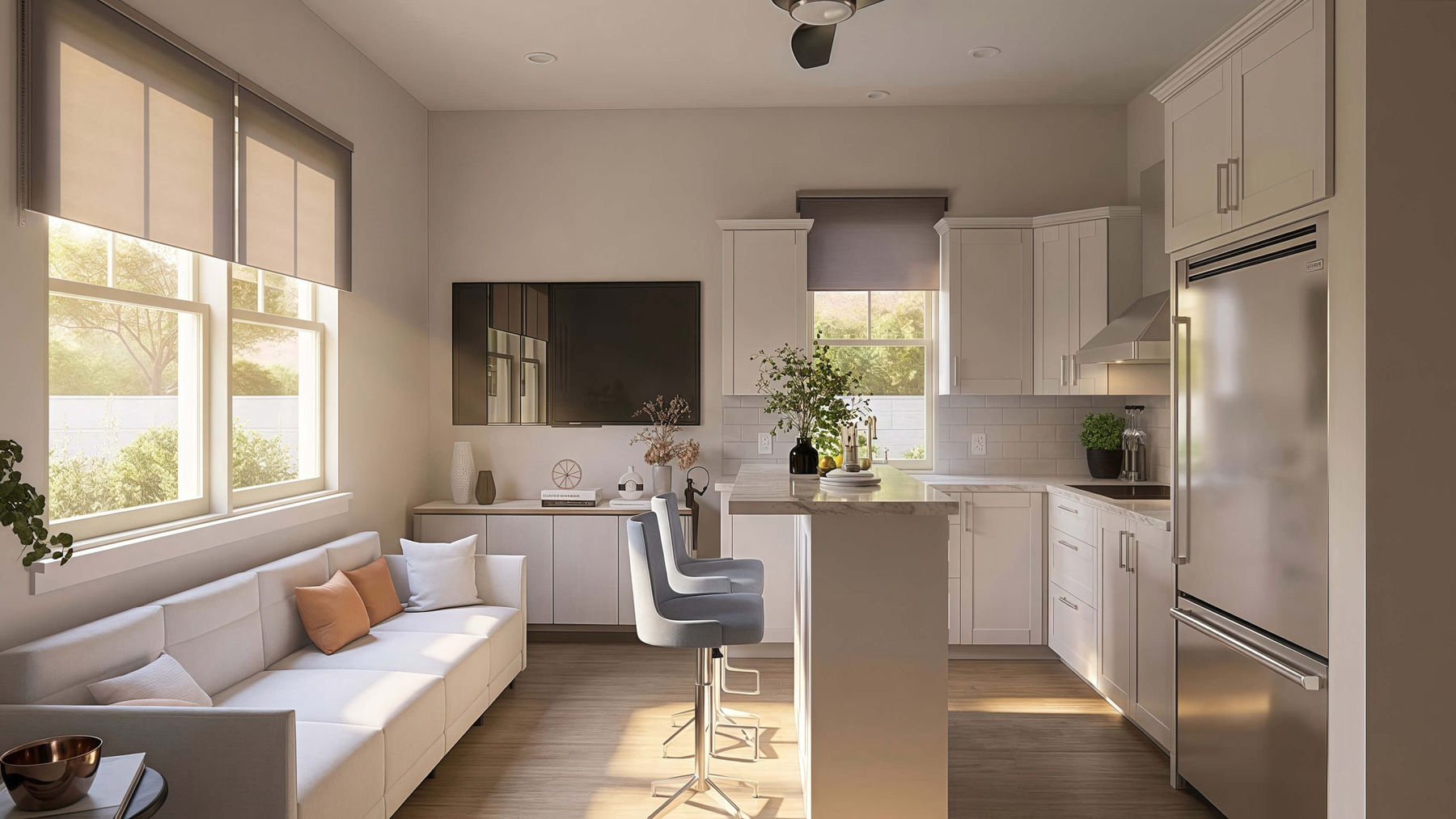

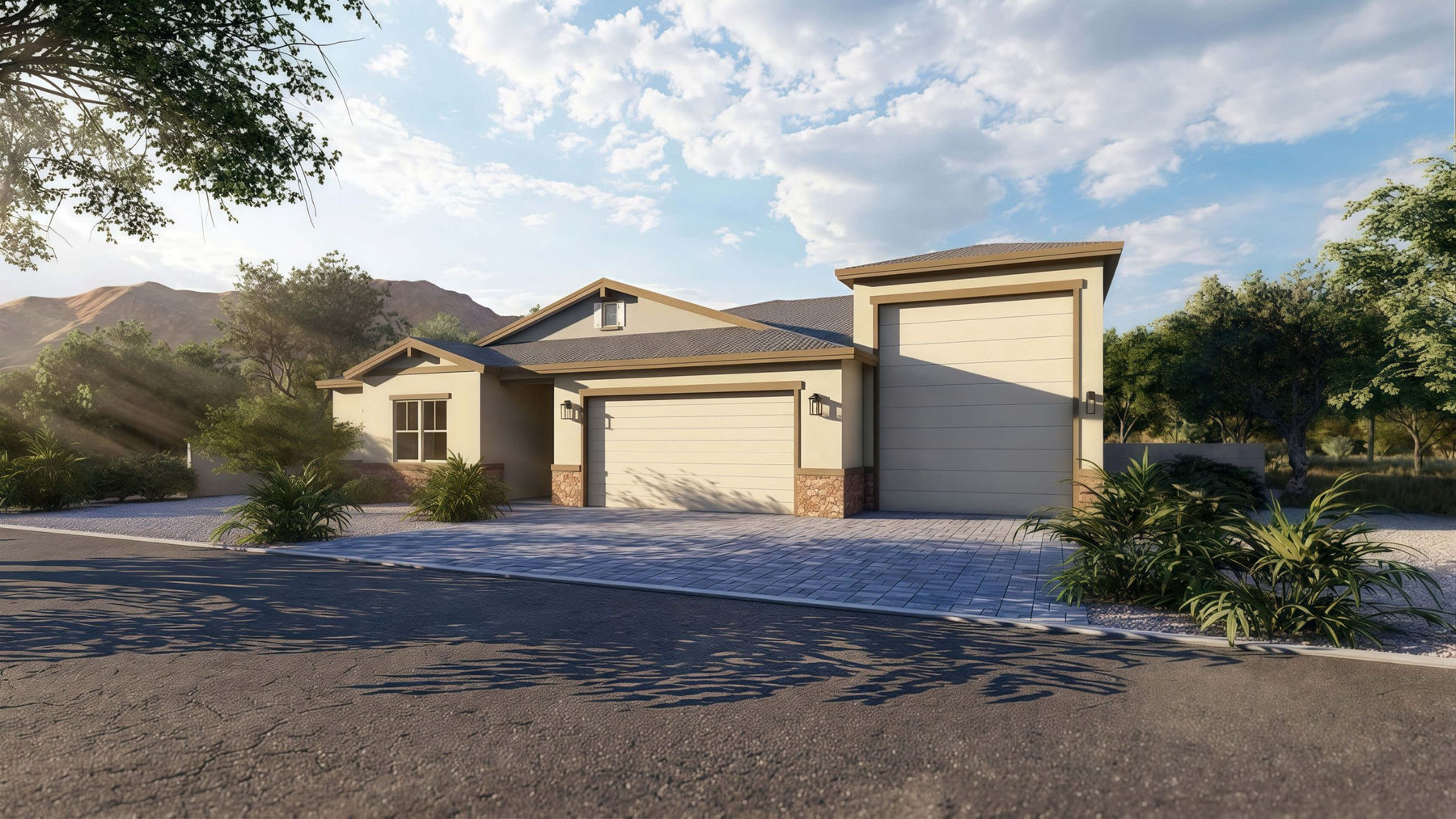

450 Sq Ft 15' x 30' Attached One-Bedroom Casita Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

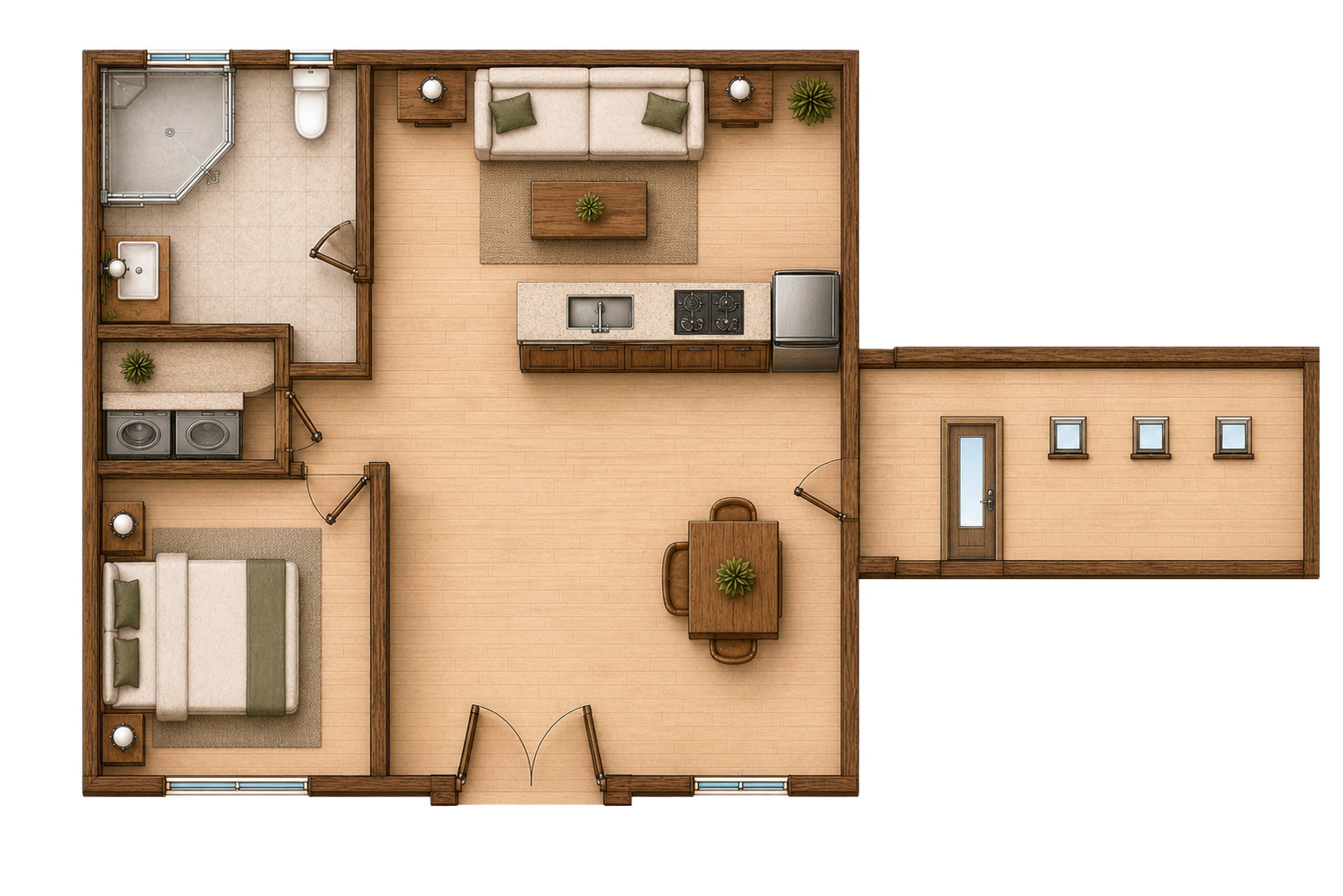

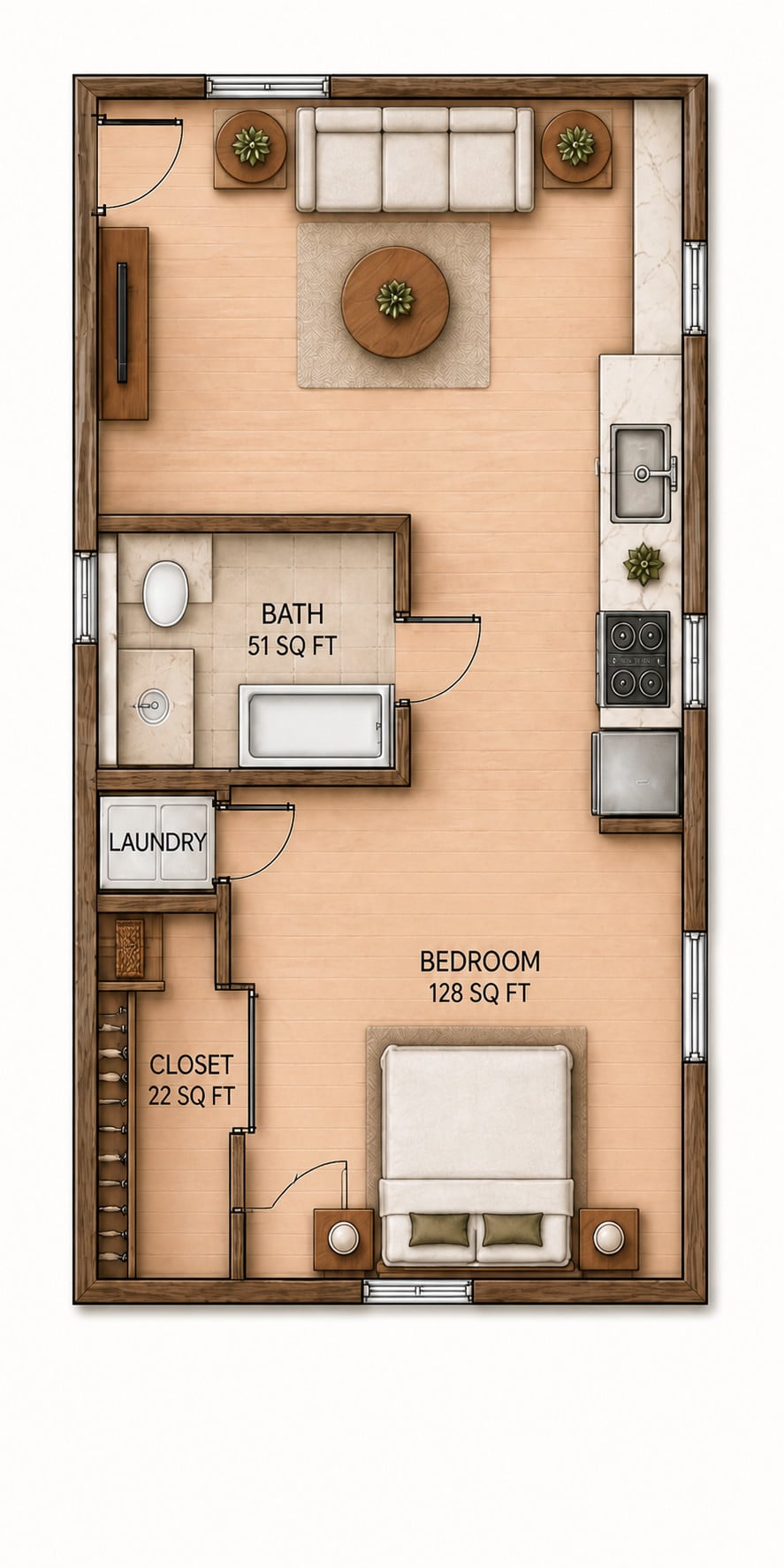

Floor Plan
Clean Layout Reference

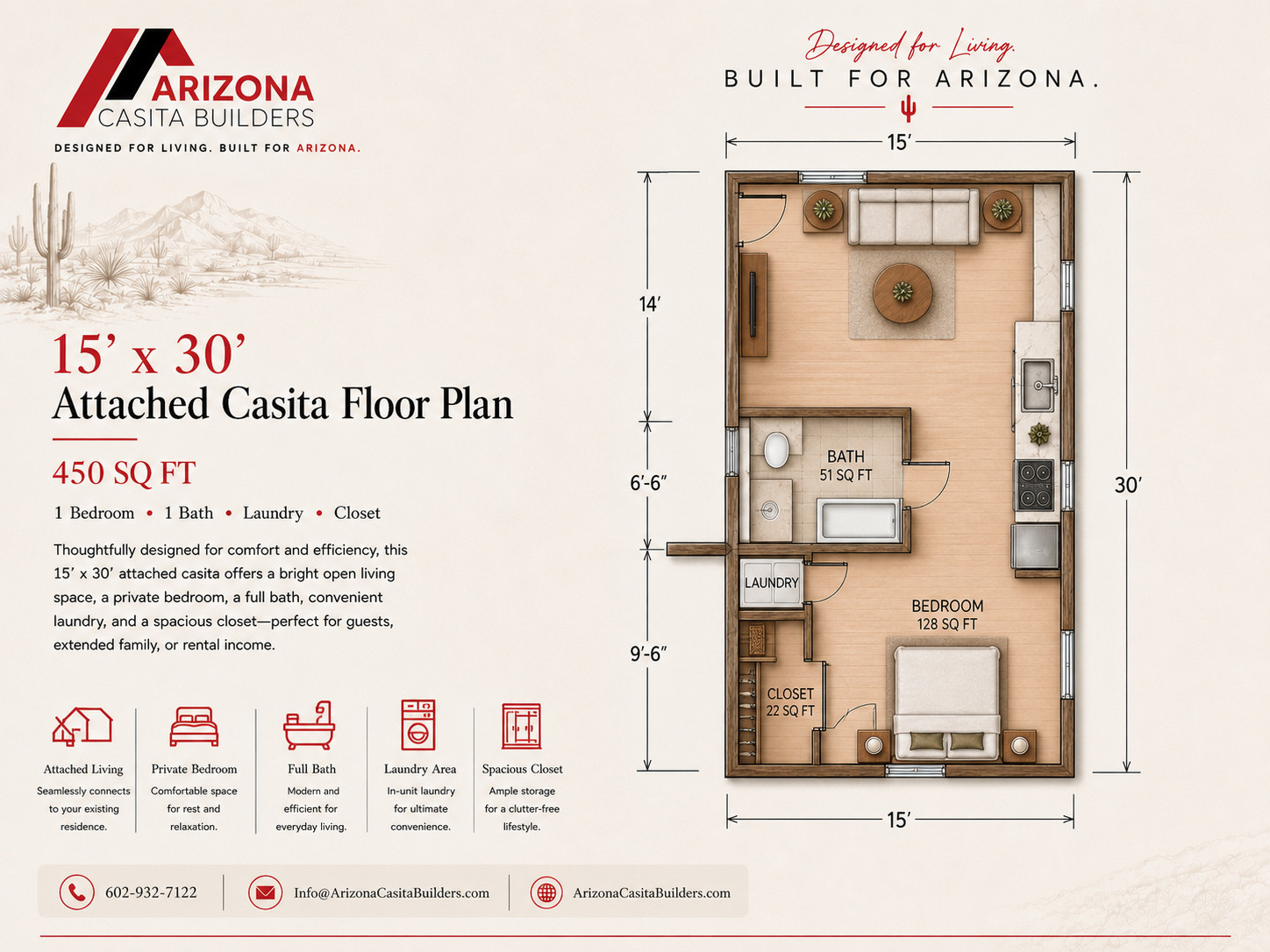

The source documents a 15-foot by 30-foot attached casita extent with one bedroom, one bath, laundry, closet, and open living area.
Build Quality
Designed For Arizona

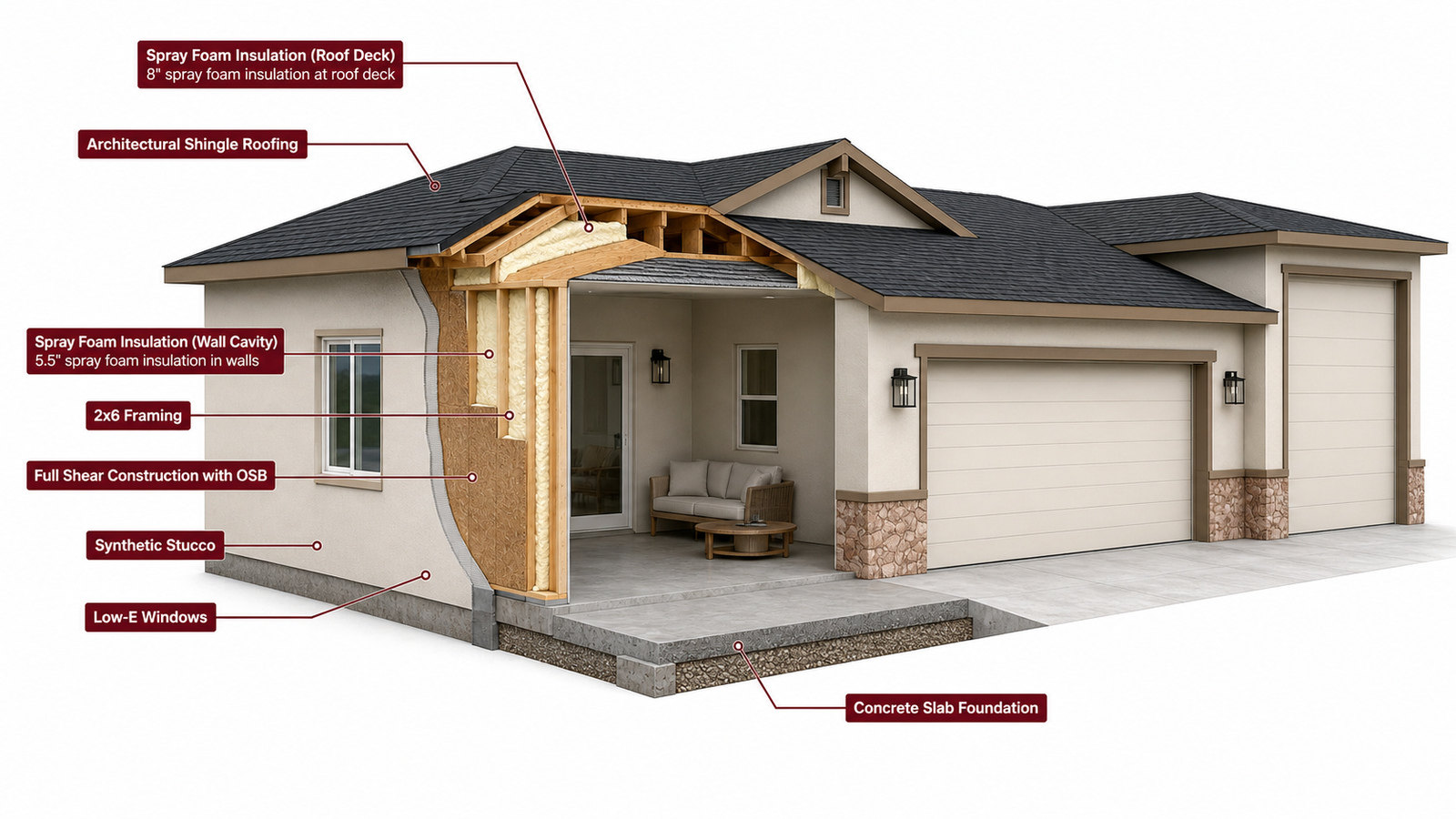

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
