Plan Overview
Compact Studio With A Breezeway Connection
The enclosed footprint measures 16 by 18 feet; the source title totals 323 square feet when the 35-square-foot breezeway is included.
The interior is labeled as a 164-square-foot gym or living room and includes a bathroom plus 54 square feet of storage.
Flexible Program
No bedroom is labeled; the primary room is shown as gym or living space.
Attached Context
A 7-foot breezeway span connects toward an existing garage.
Interior & Exterior Renderings
288 Sq Ft 16' x 18' Attached Studio Casita Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.
Floor Plan
Clean Layout Reference
The plan shows a 16-by-18-foot casita footprint, 7-foot breezeway span with 5-foot depth, and a 323-square-foot source total including breezeway.
Build Quality
Designed For Arizona

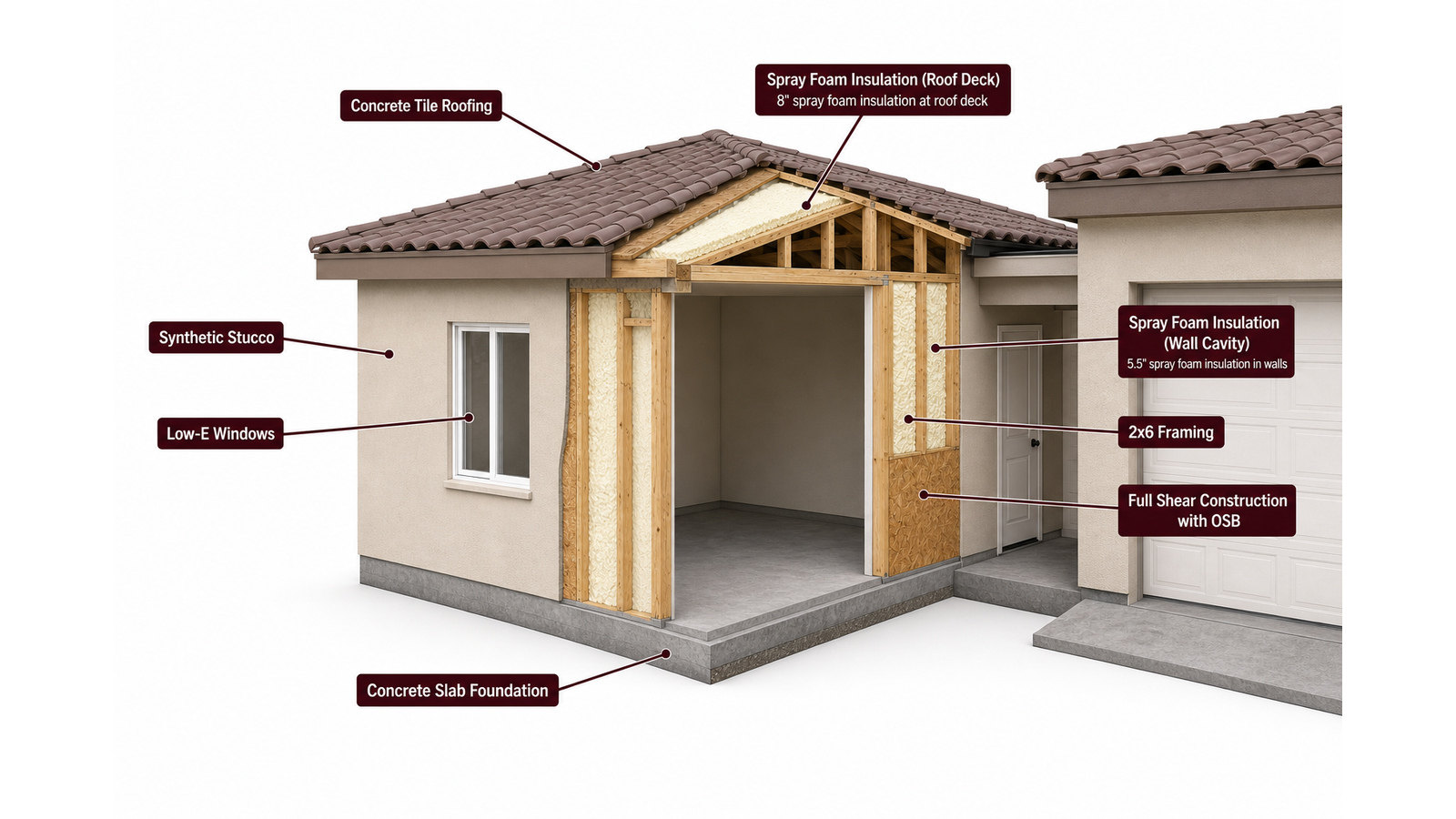

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
