Plan Overview
A Straightforward Plan With A Shaded Porch
The enclosed casita measures 20 by 30 feet and totals 600 square feet.
A 6-by-10-foot covered porch extends the overall envelope to 26 by 30 feet and creates a welcoming outdoor transition.
Covered Arrival
The porch provides a shaded transition at the primary exterior opening.
Covered Porch
The approximately 60-square-foot porch adds shaded outdoor space without interrupting the efficient interior layout.

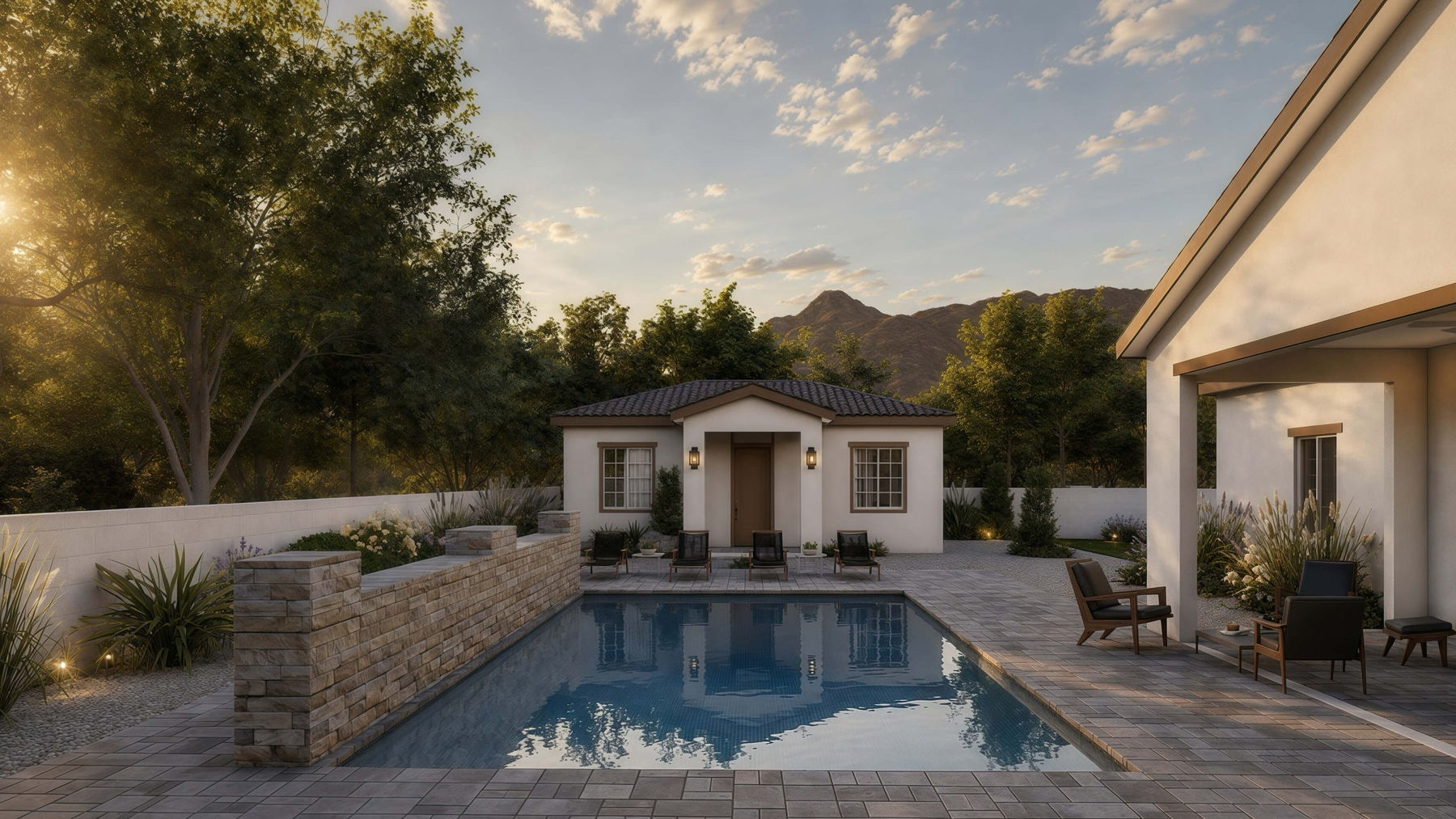

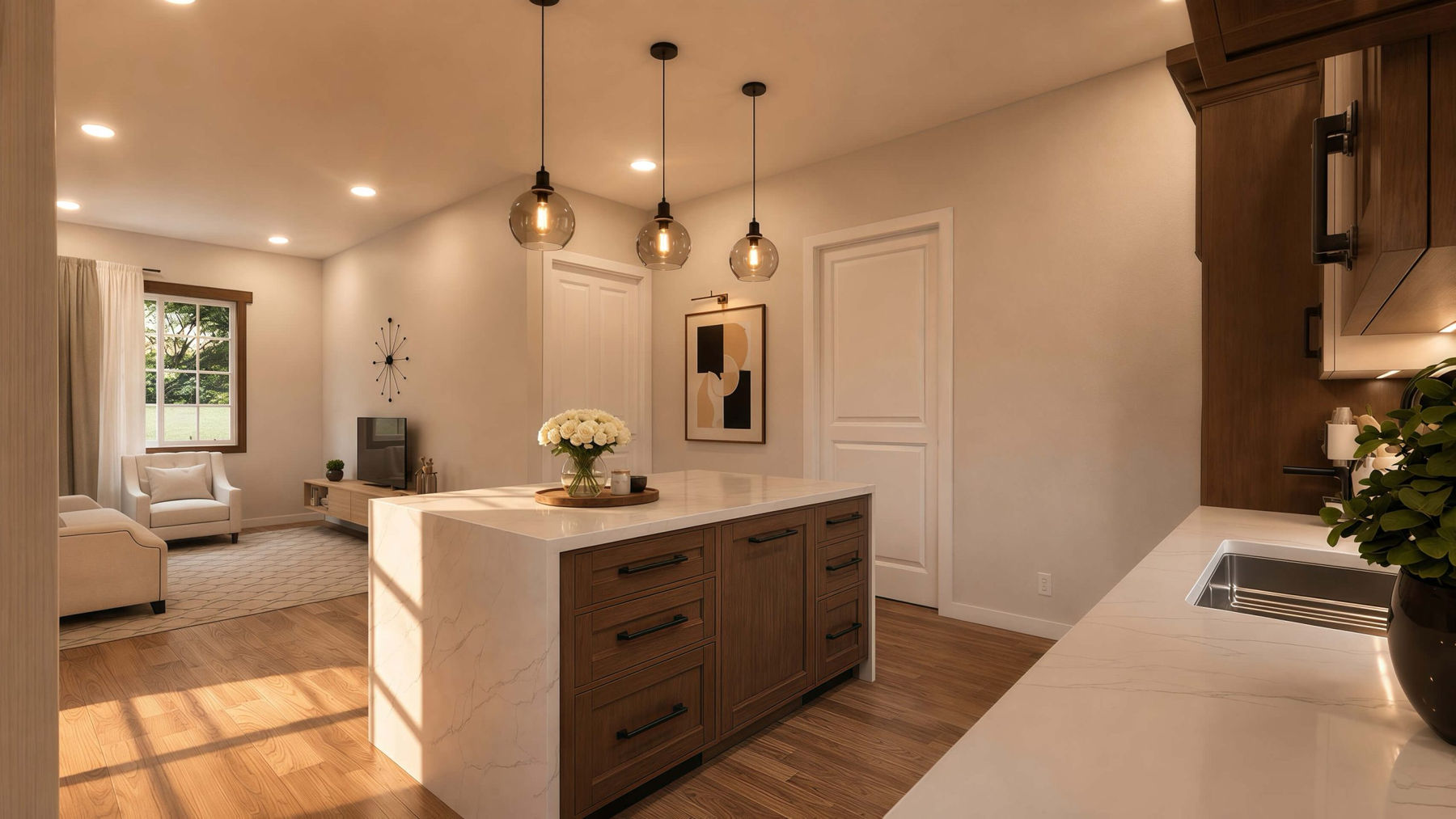

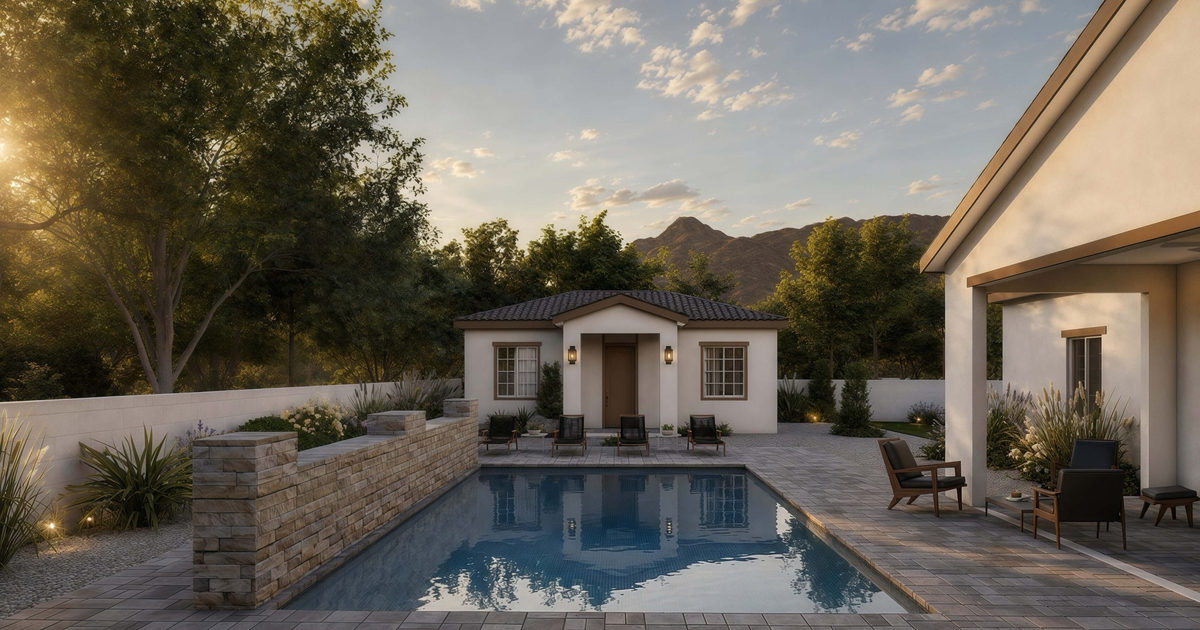

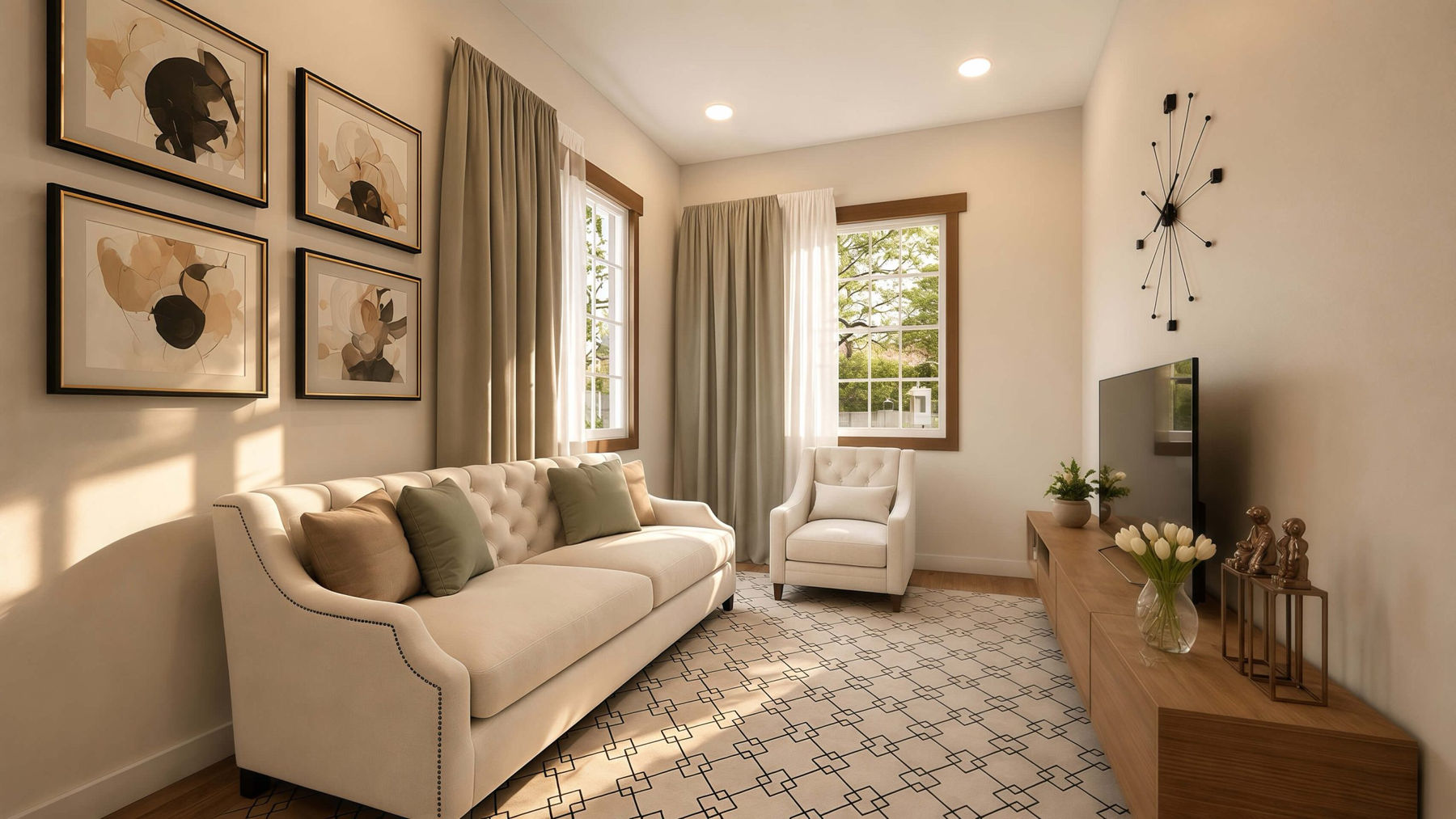

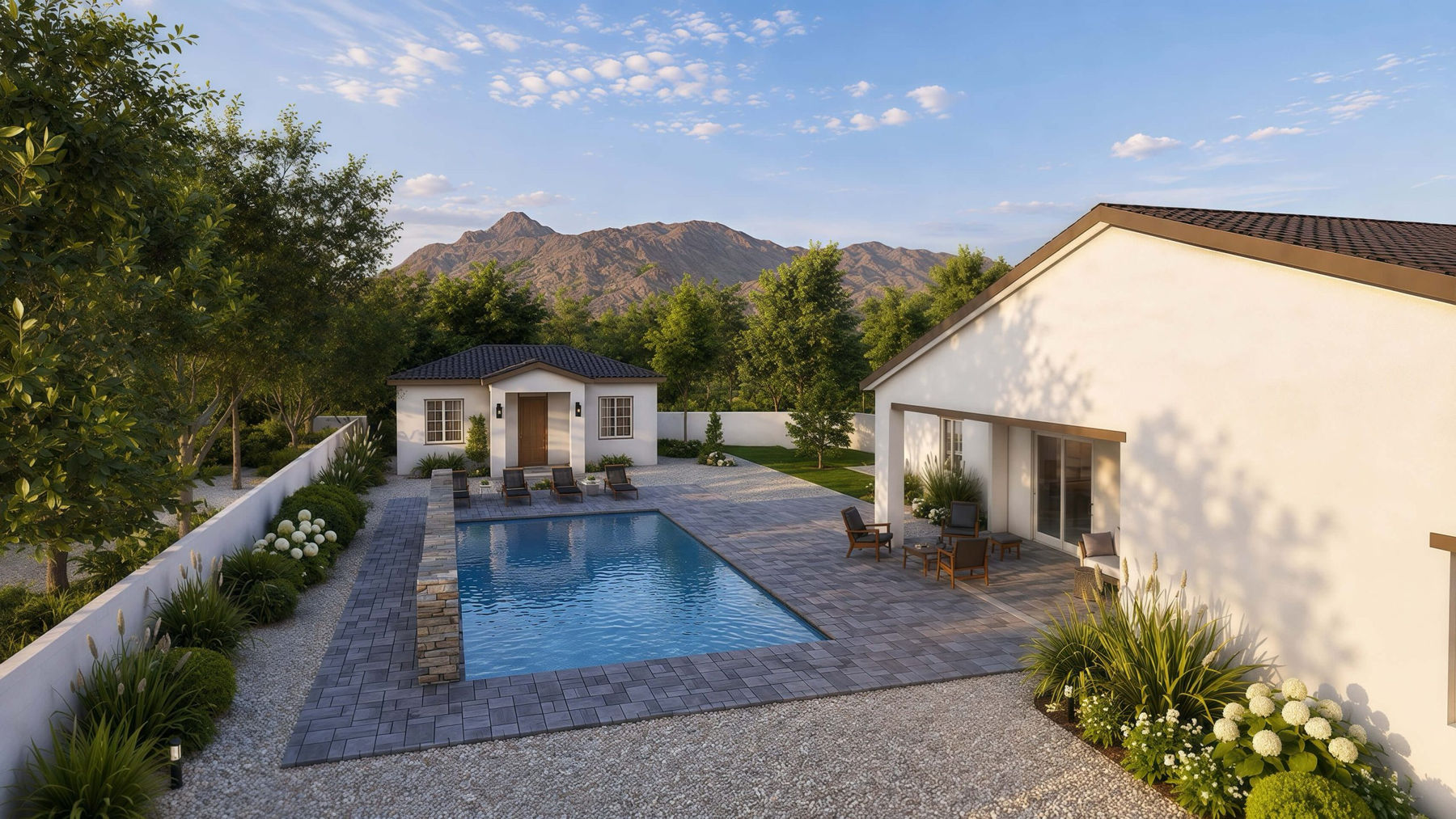

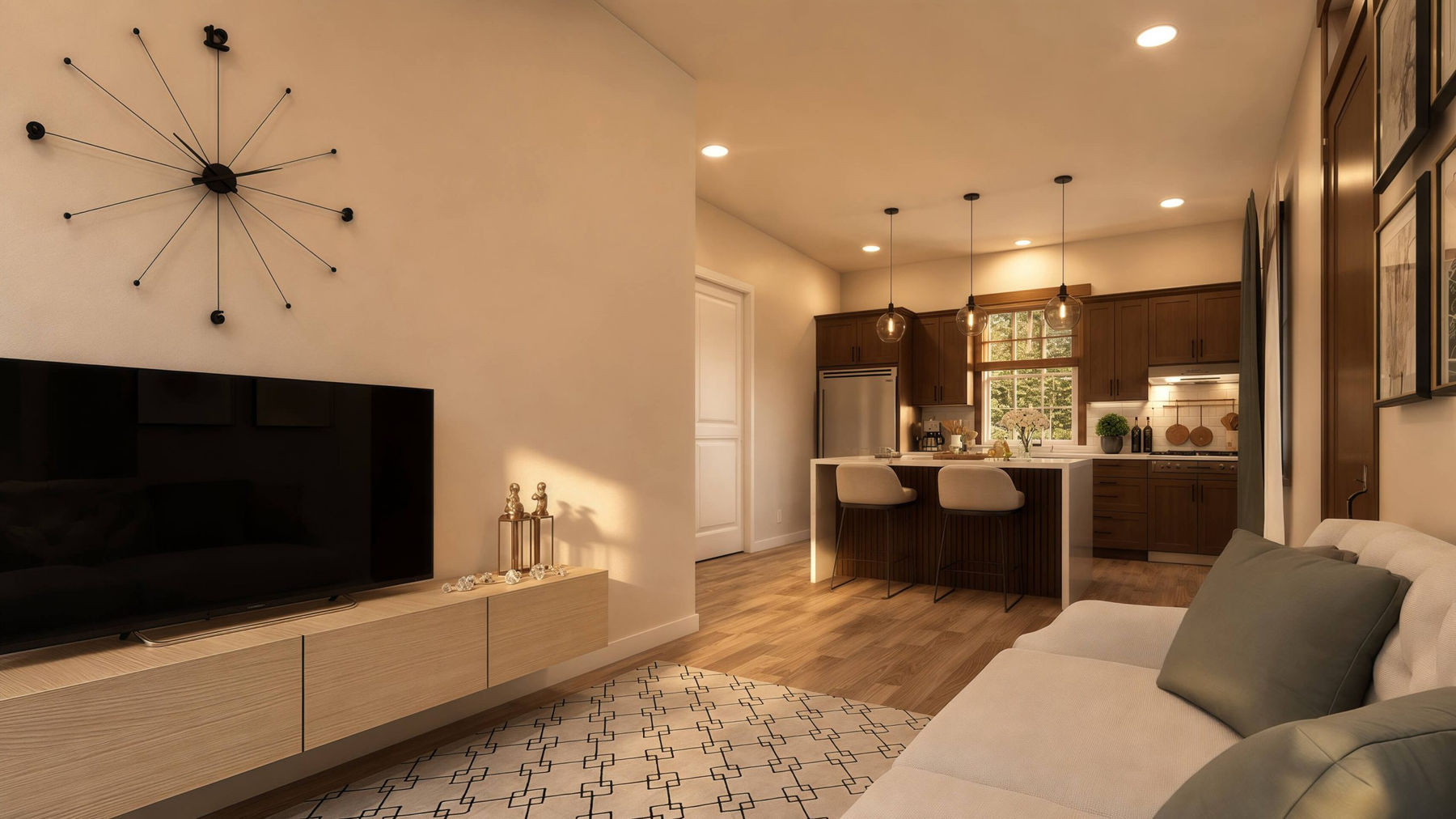

Interior & Exterior Renderings
600 Sq Ft 20' x 30' Casita With Covered Porch Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

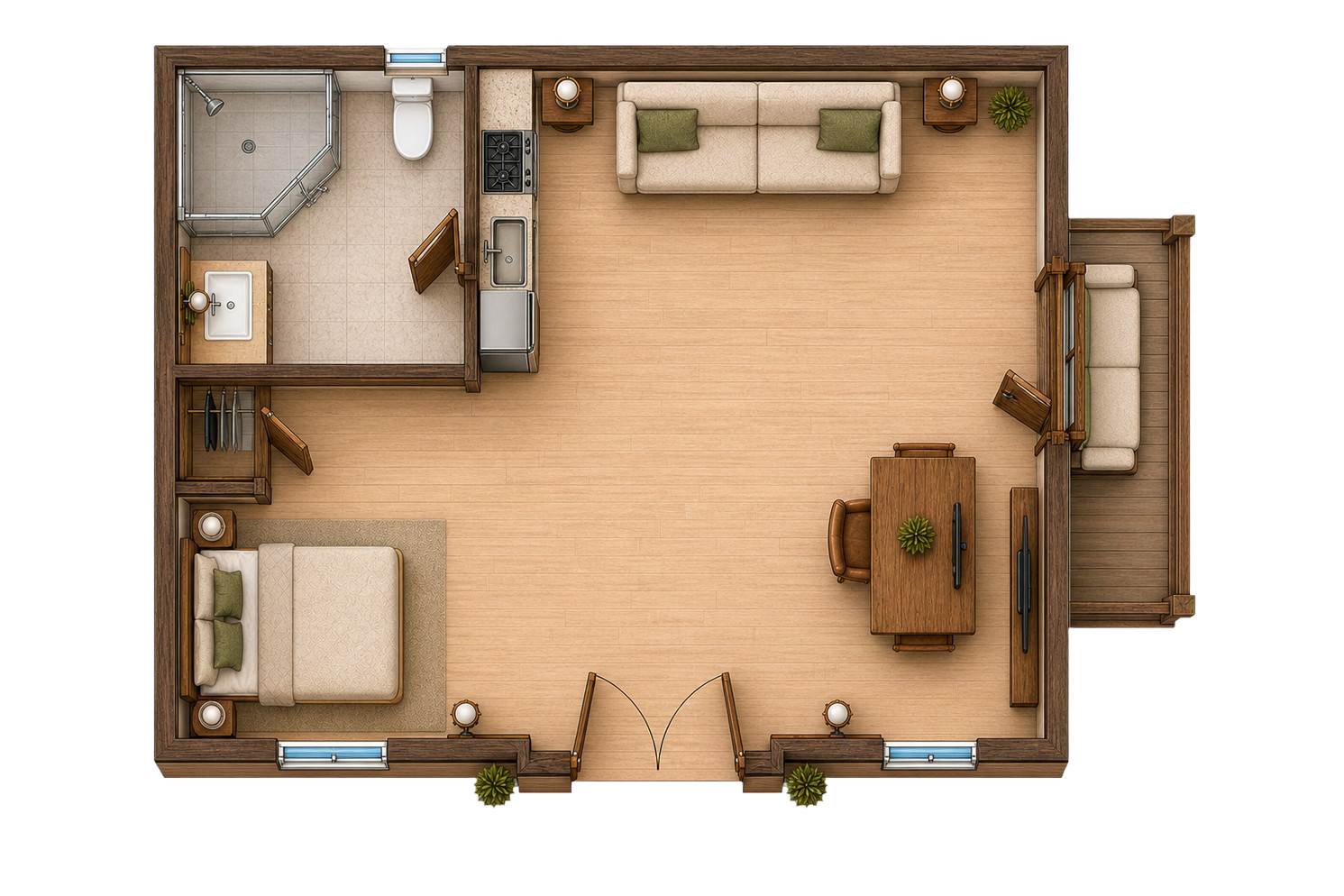

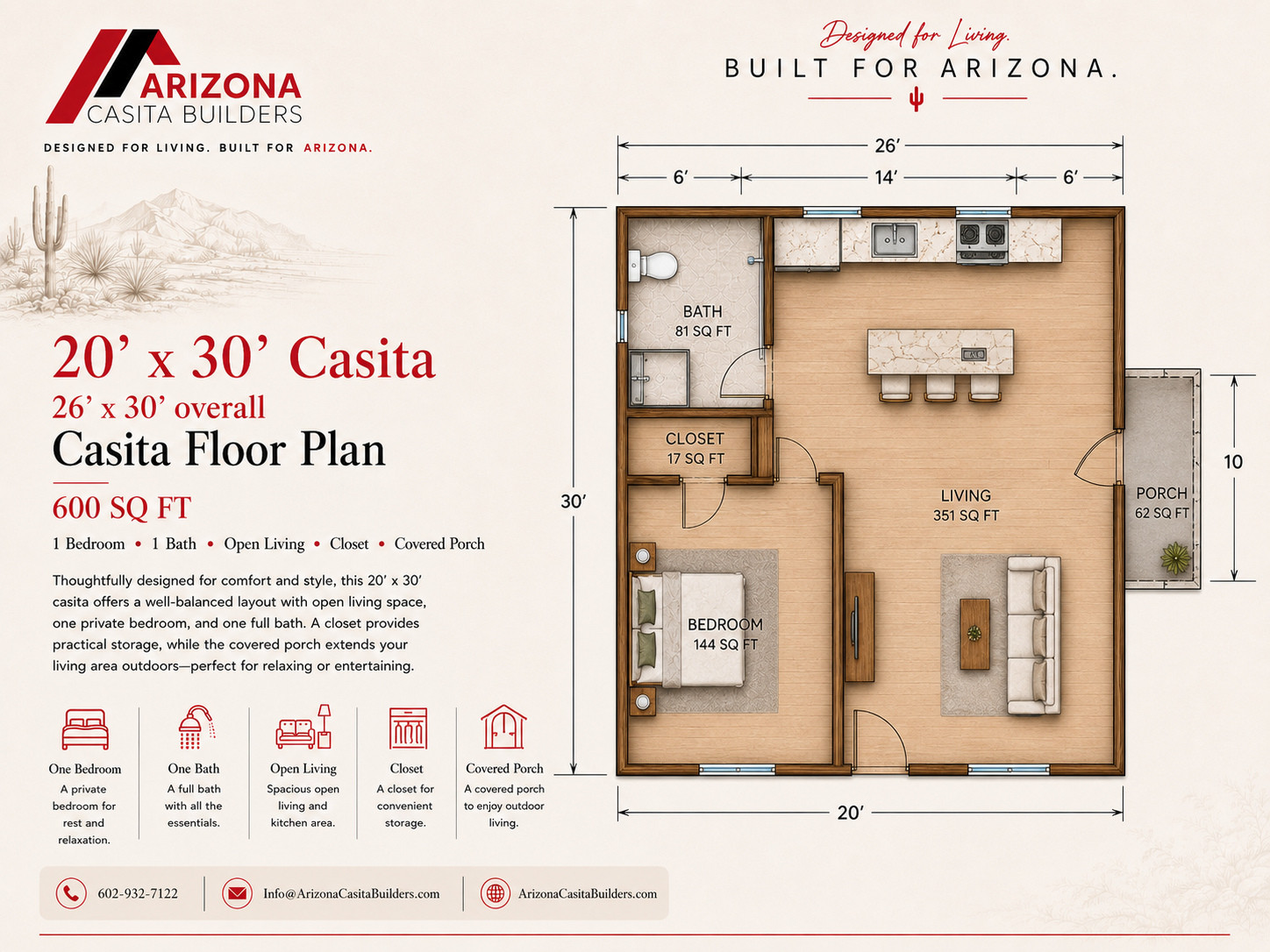

Floor Plan
Clean Layout Reference
The plan pairs a 20-by-30-foot casita with a 6-by-10-foot covered porch, producing a 26-by-30-foot overall extent.
Build Quality
Designed For Arizona

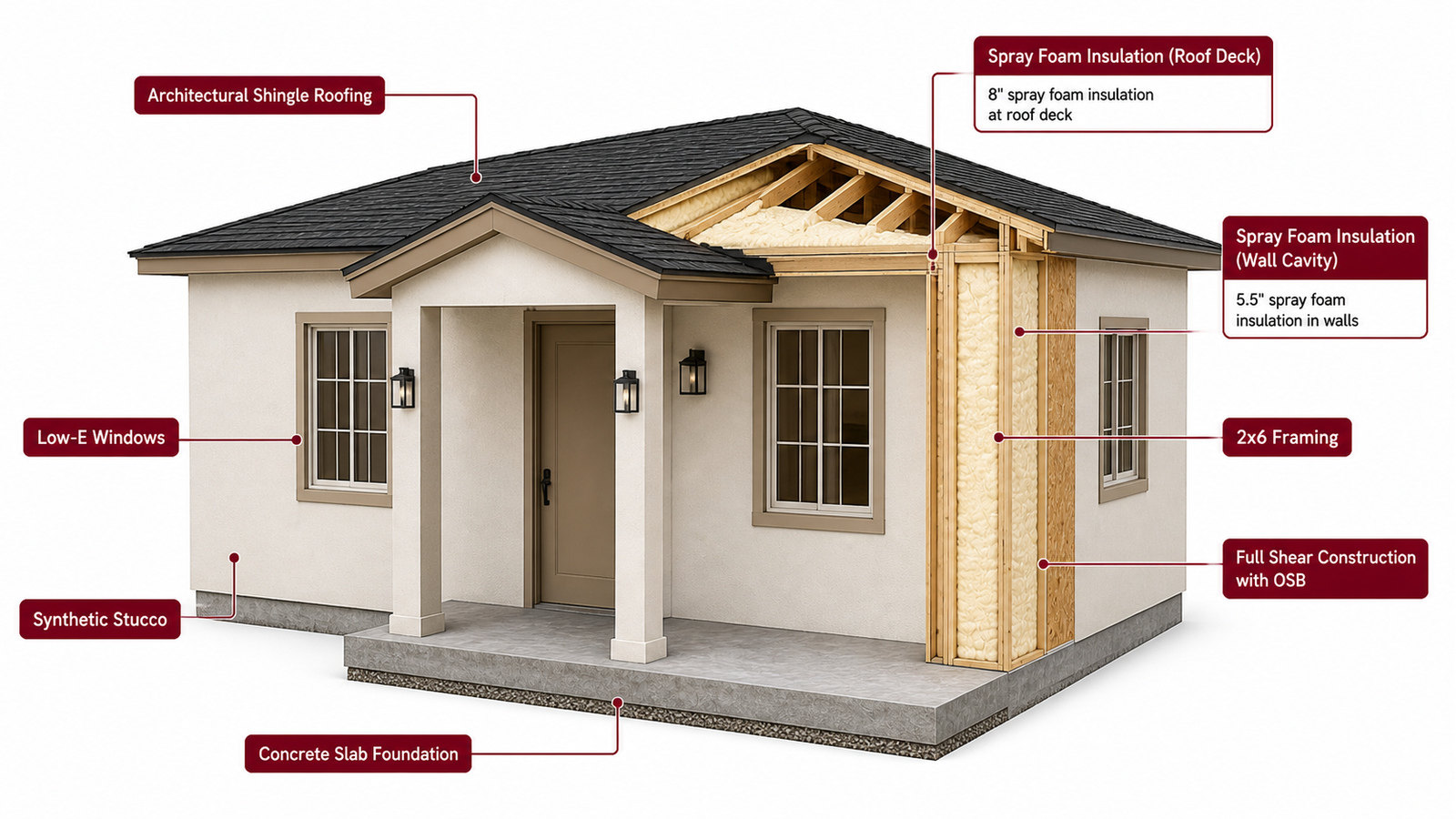

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
