Plan Overview
Full-Width Shade With Dedicated Service Space
The enclosed casita measures 24 by 26 feet and provides 638 square feet of comfortable one-bedroom living space.
A 24-by-4-foot porch creates a 24-by-30-foot overall extent, while laundry and mechanical functions are integrated indoors.
Full-Width Porch
The four-foot-deep porch extends across the 24-foot face of the casita.
Service Functions
Dedicated laundry and mechanical areas support practical everyday use.
Interior & Exterior Renderings
638 Sq Ft 24' x 26' Casita With Full-Width Porch Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

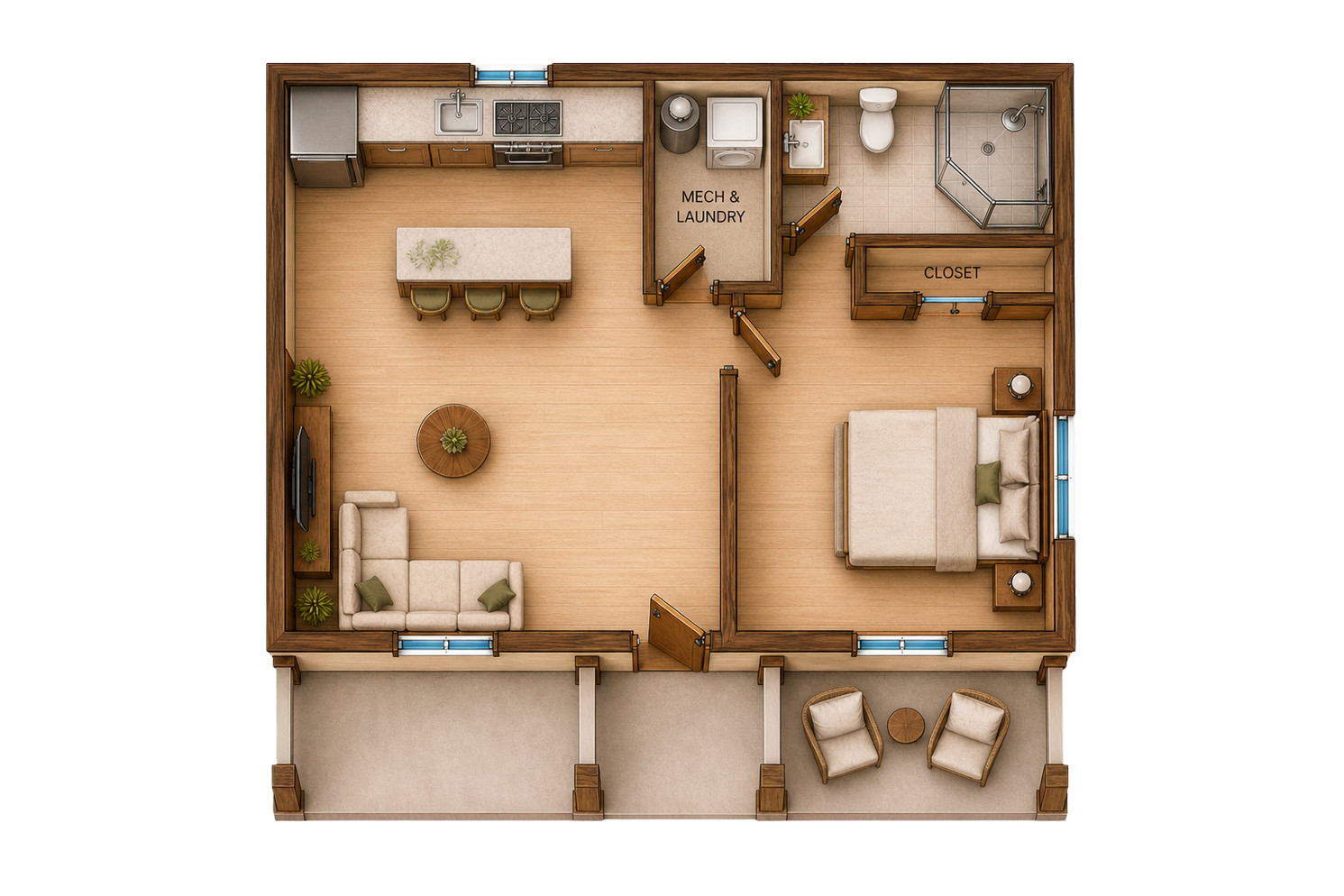

Floor Plan
Clean Layout Reference

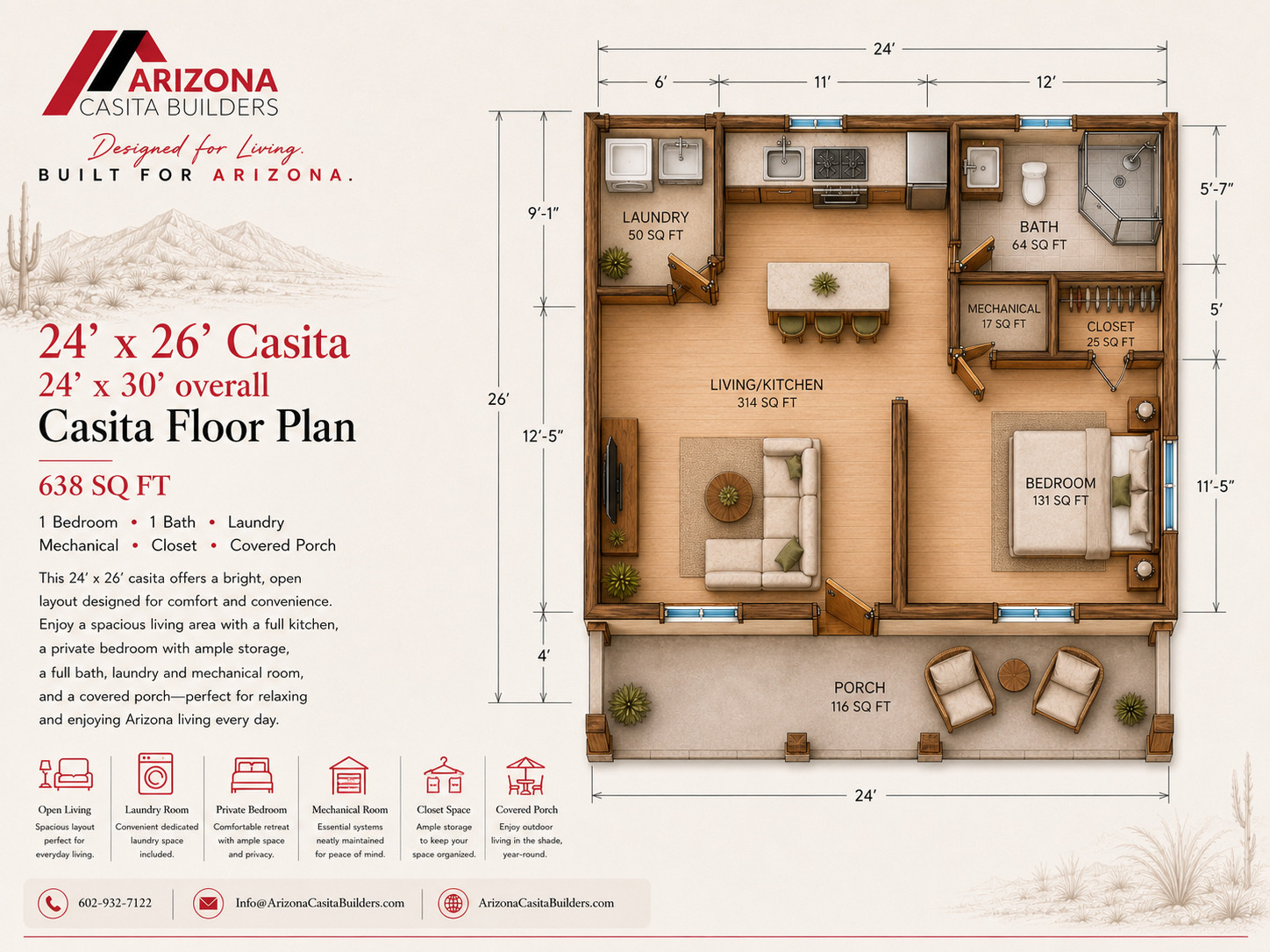

The design pairs a 24-by-26-foot casita with a 24-by-4-foot full-width porch, creating a 24-by-30-foot overall extent.
Build Quality
Designed For Arizona

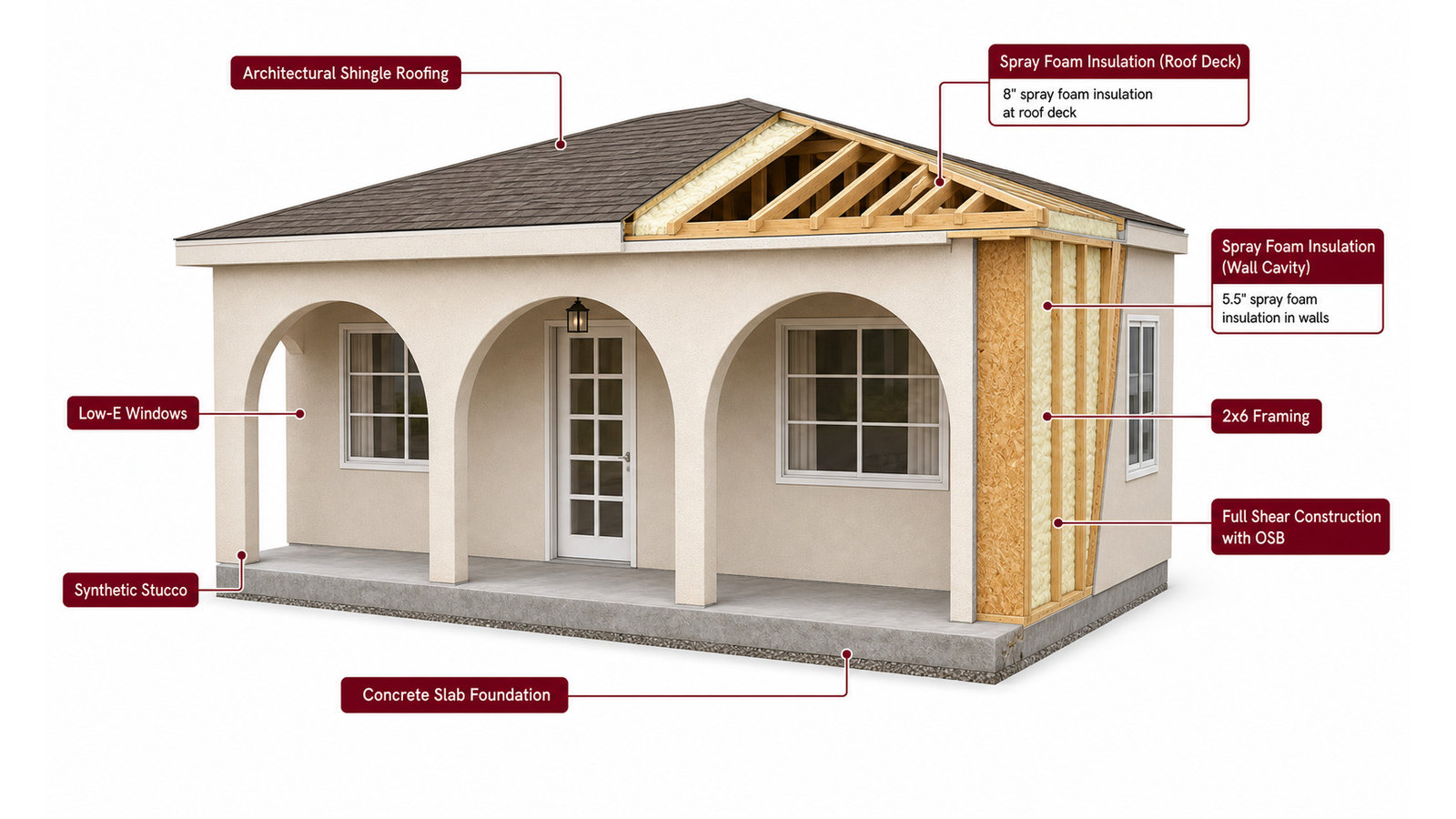

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
