Plan Overview
Generous Open Living With A Covered Patio
This 700-square-foot casita fits within an efficient 25-by-28-foot footprint.
The layout includes a 437-square-foot living area, 145-square-foot bedroom, 67-square-foot bathroom, 36-square-foot laundry, and an approximately 113-square-foot patio.
Dedicated Laundry
A 36-square-foot laundry room adds convenience beside the private spaces.
Covered Patio
The approximately 113-square-foot covered patio creates shaded outdoor space for relaxing or entertaining.

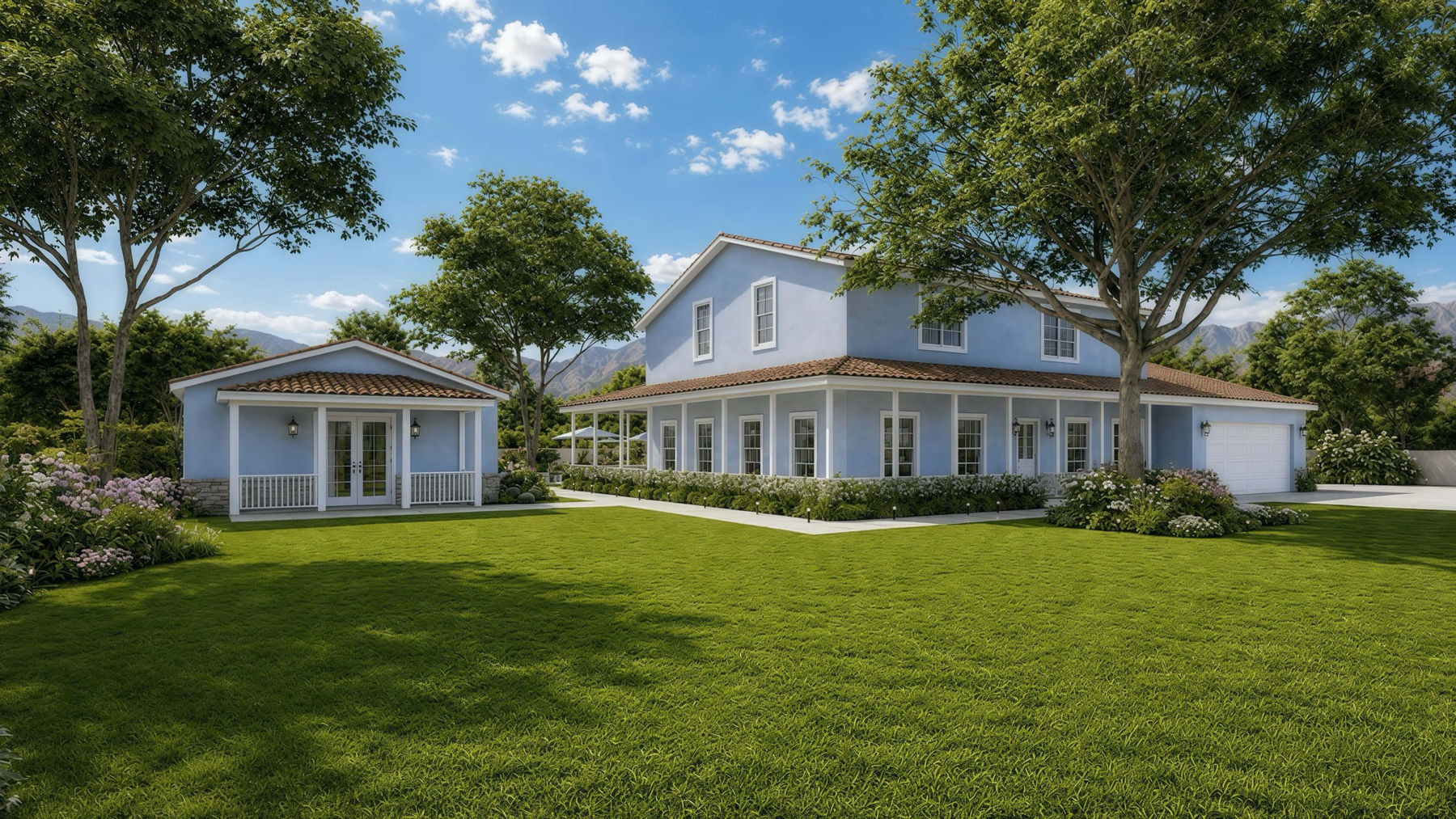

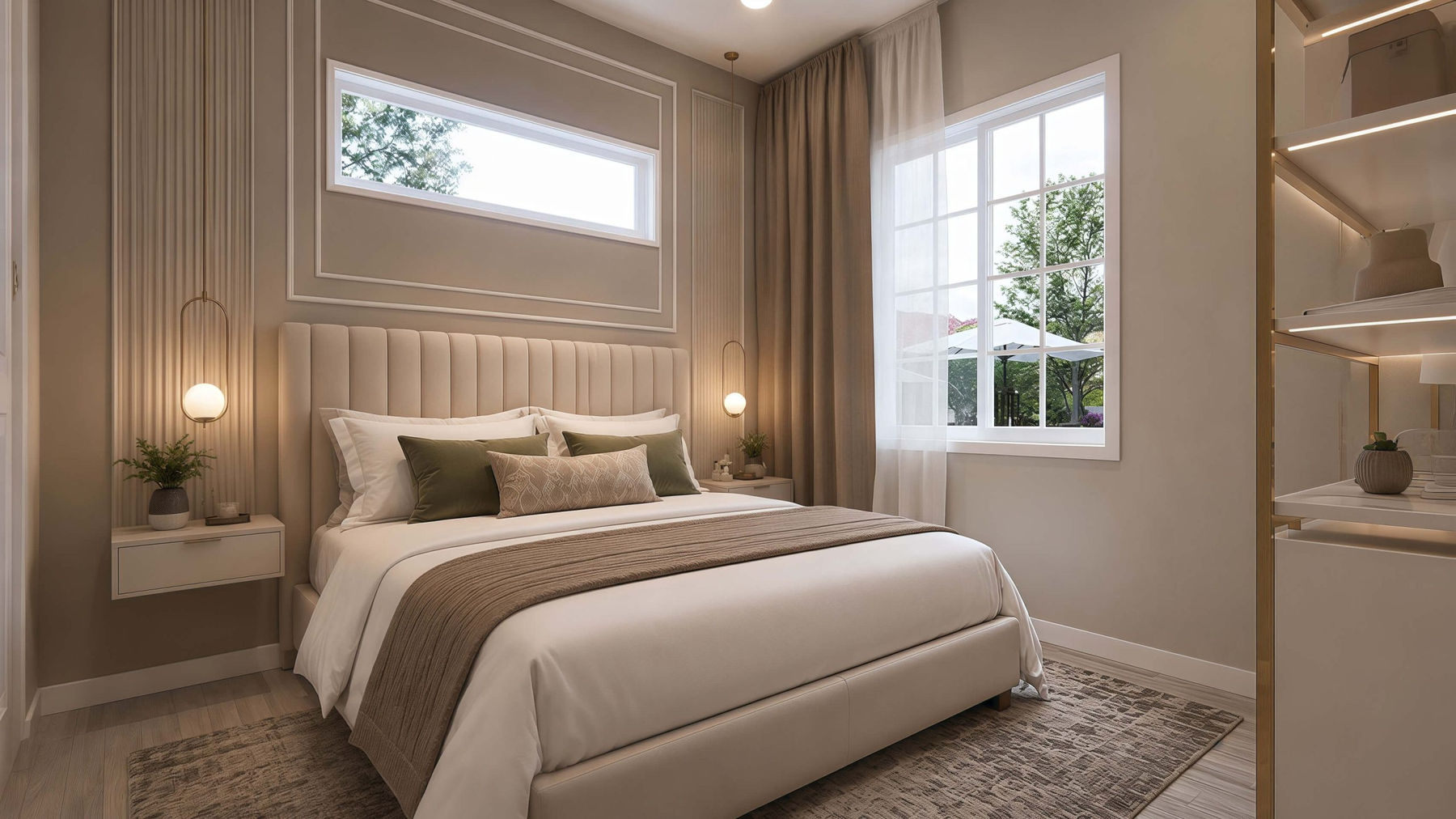

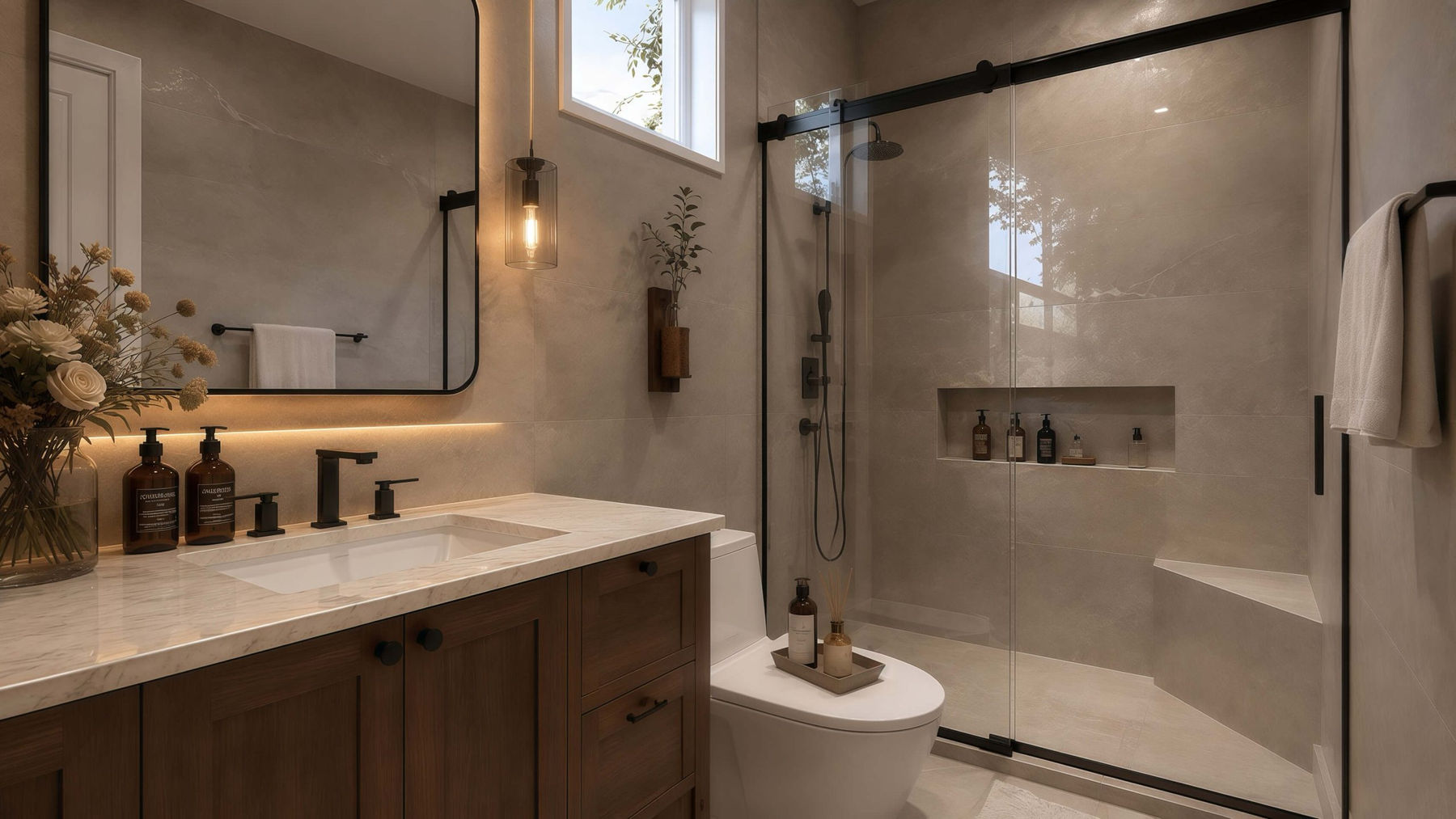

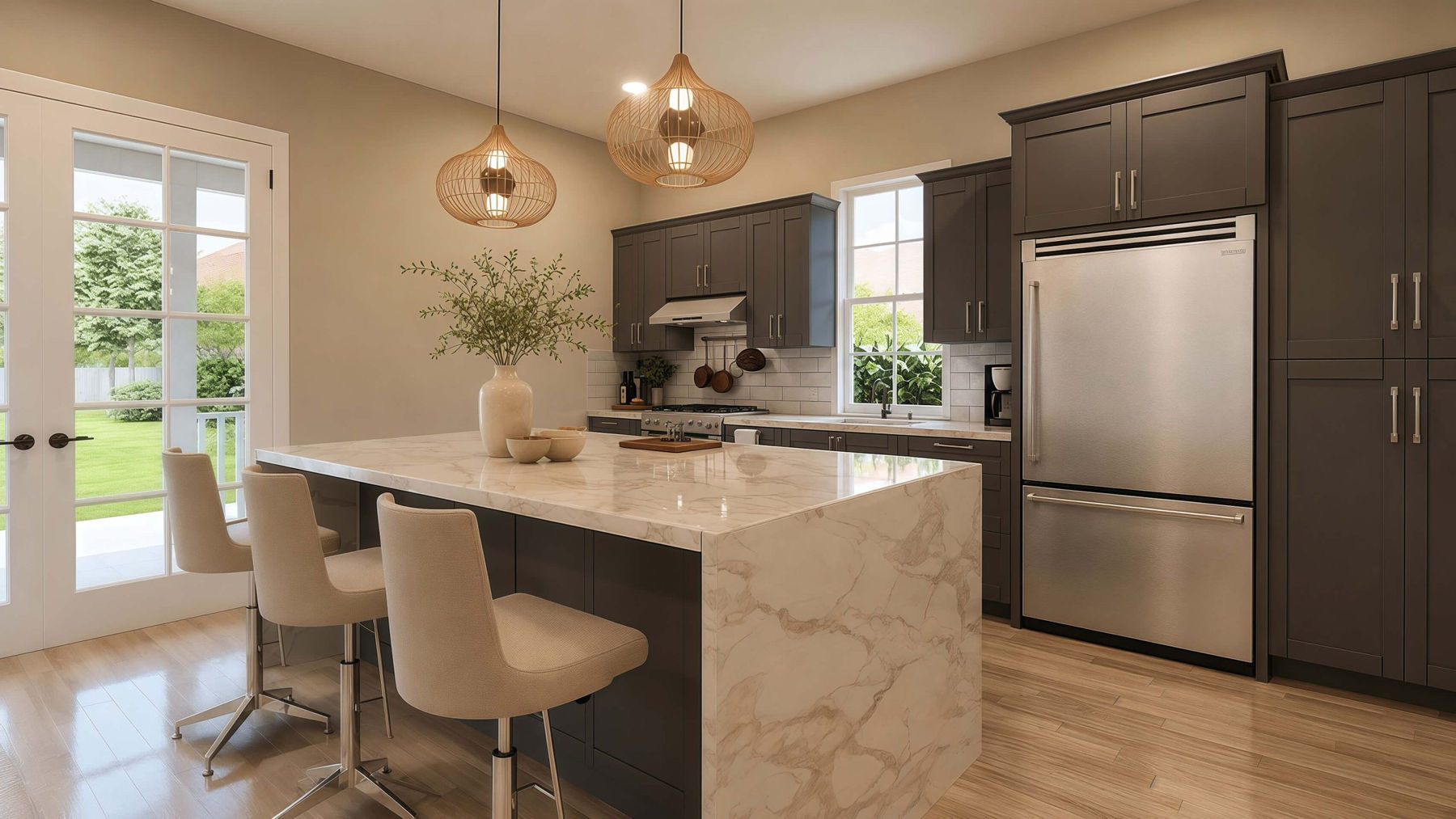

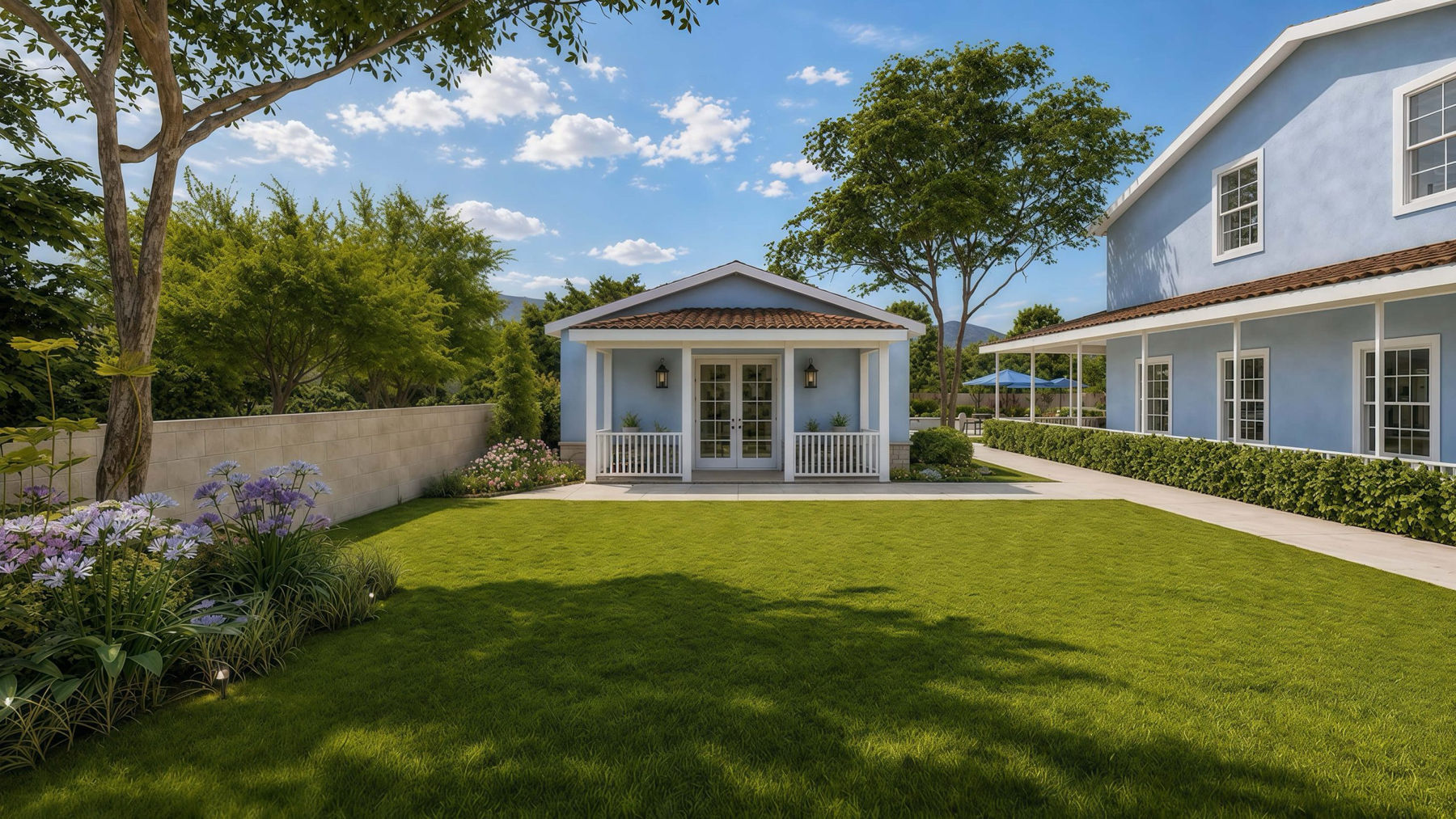

Interior & Exterior Renderings

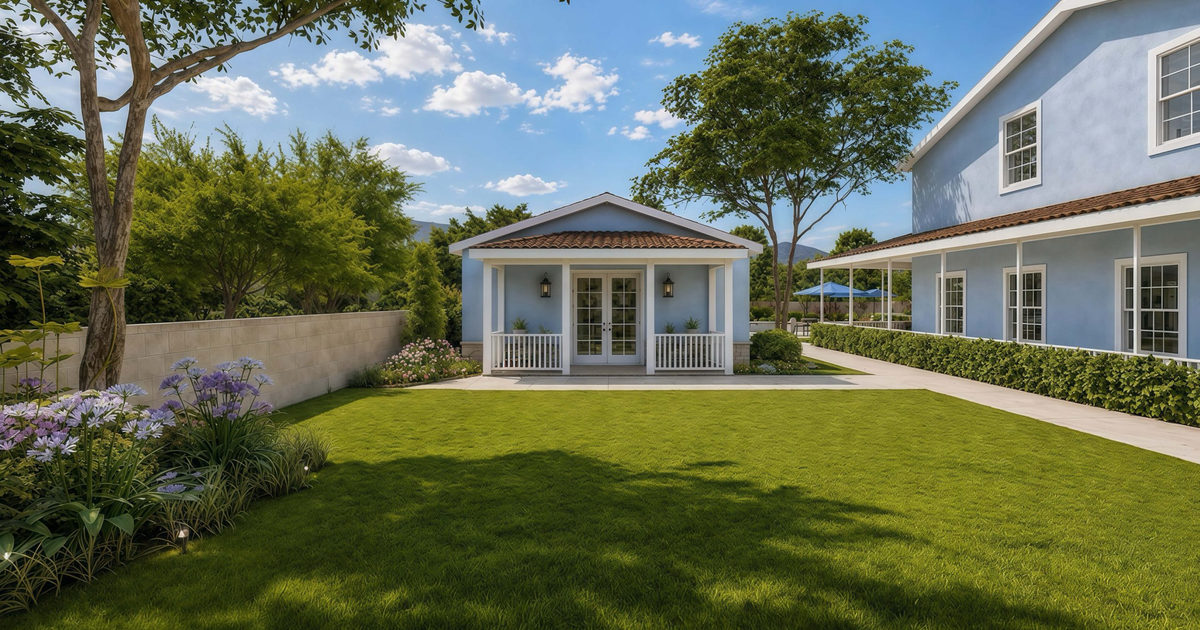

700 Sq Ft 25' x 28' Casita With Covered Patio Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

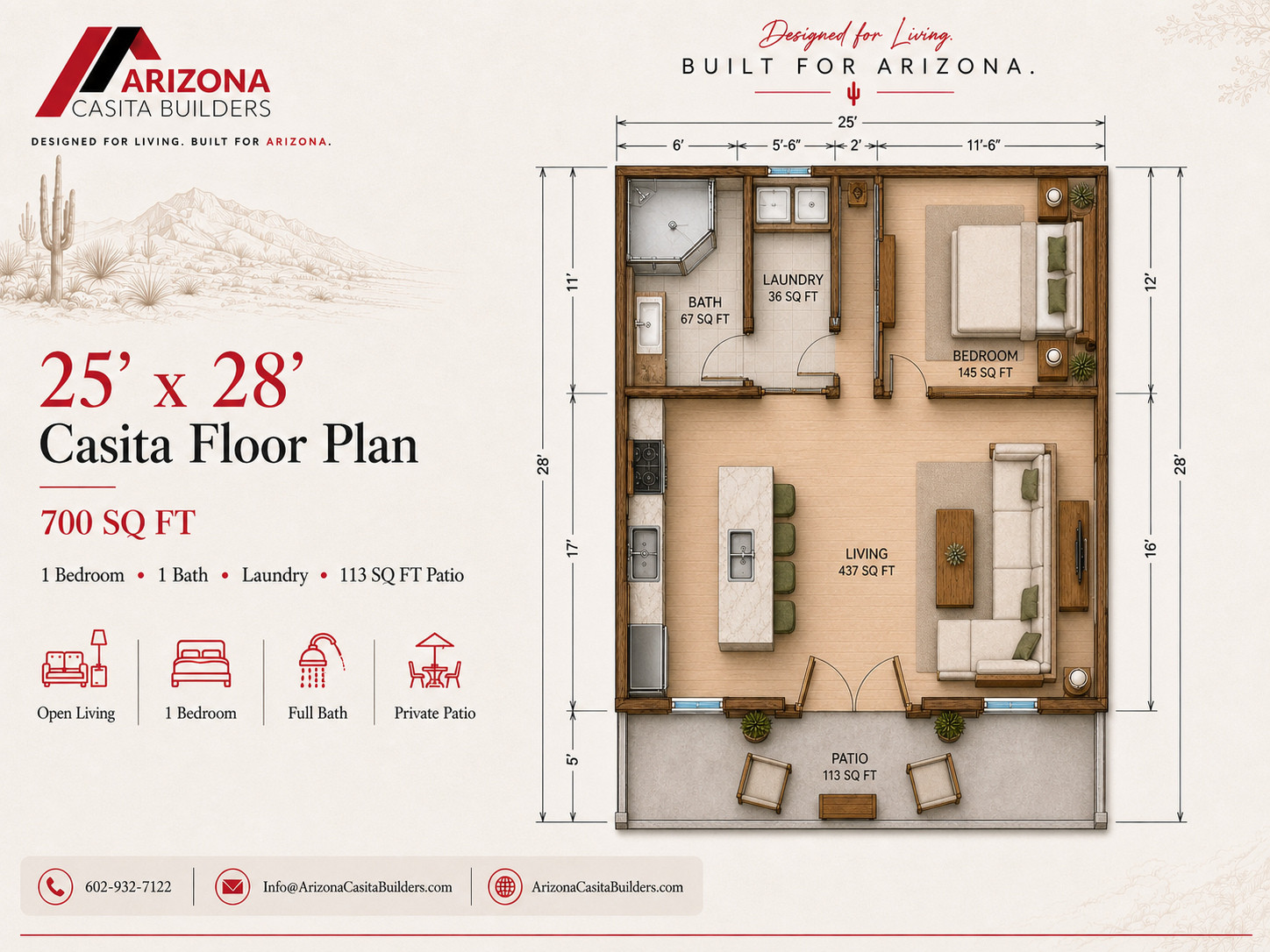

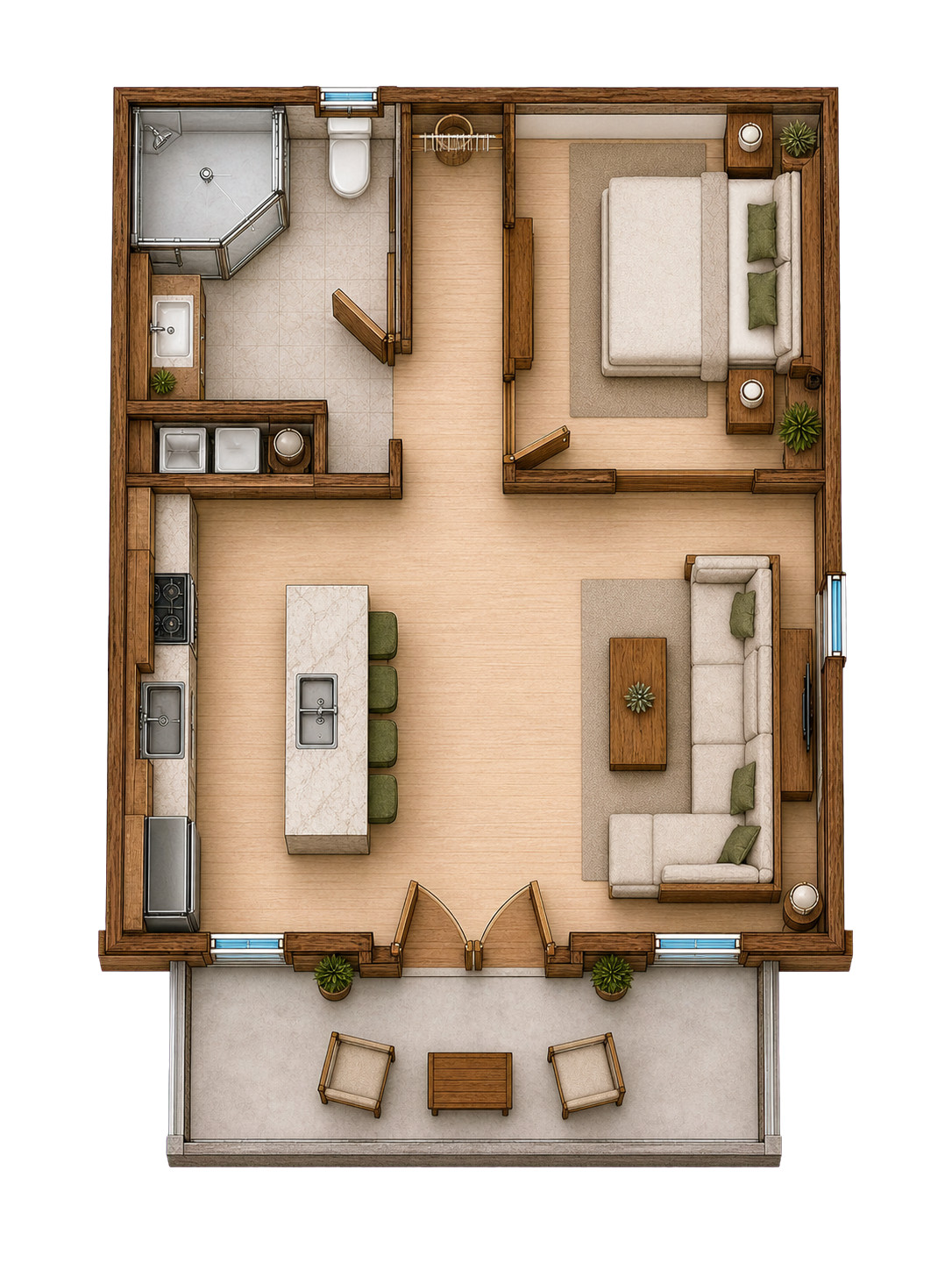

Floor Plan
Clean Layout Reference
The 25-by-28-foot one-bedroom casita includes a bathroom, laundry, open living and kitchen space, and an approximately 113-square-foot covered patio.
Build Quality
Designed For Arizona

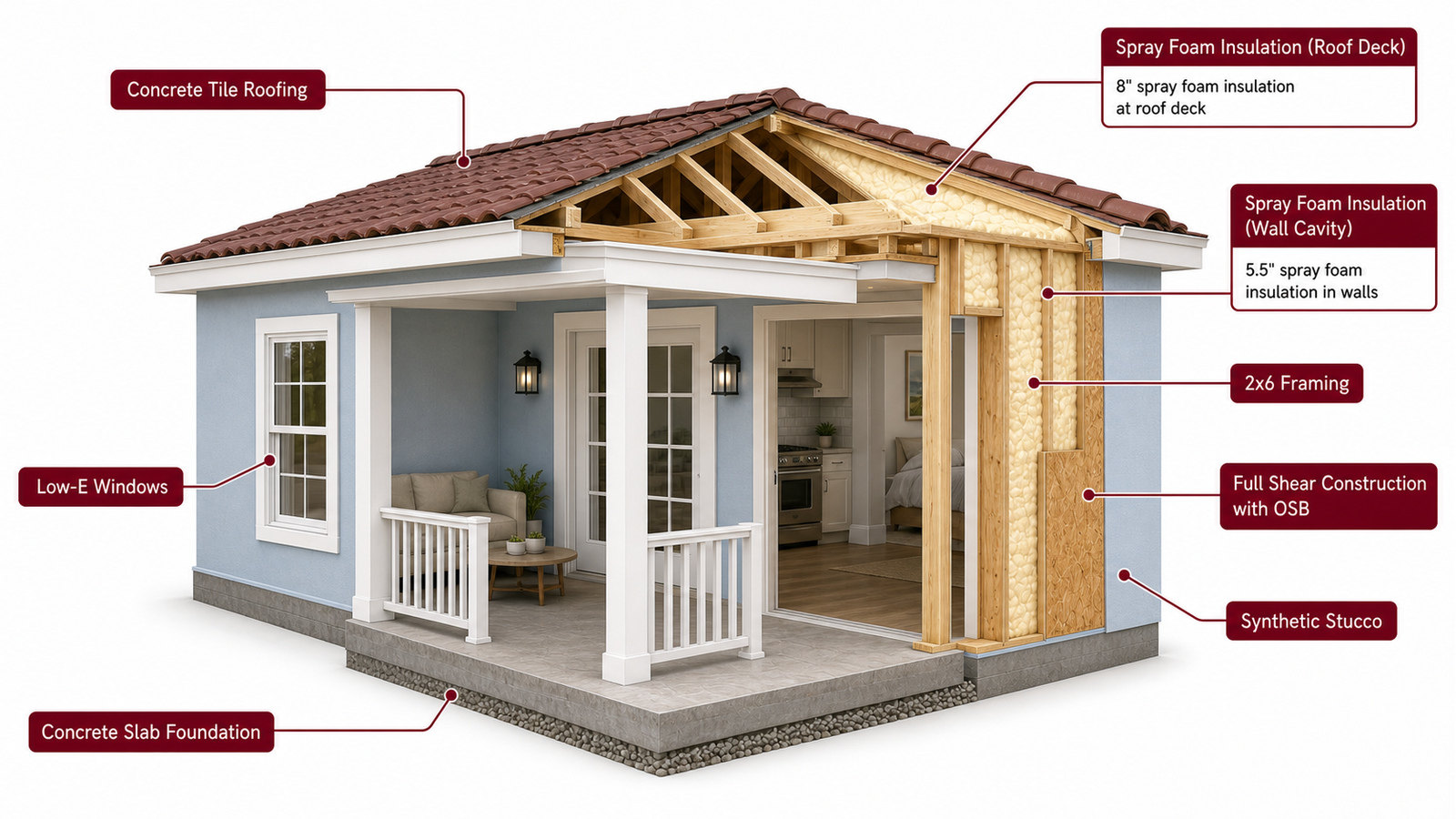

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
