Plan Overview
An Efficient One-Bedroom Courtyard Casita
The verified 27-by-15-foot footprint places the bedroom and bath at one end and a 242-square-foot living area at the other.
A centered closet provides separation while keeping circulation direct and compact.
Clear Zoning
The bedroom, bath, closet, and living zone retain a simple linear organization.
Compact Bath
The 45-square-foot bathroom completes the private side of the plan.
Interior & Exterior Renderings
405 Sq Ft 27' x 15' One-Bedroom Casita Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.
Floor Plan

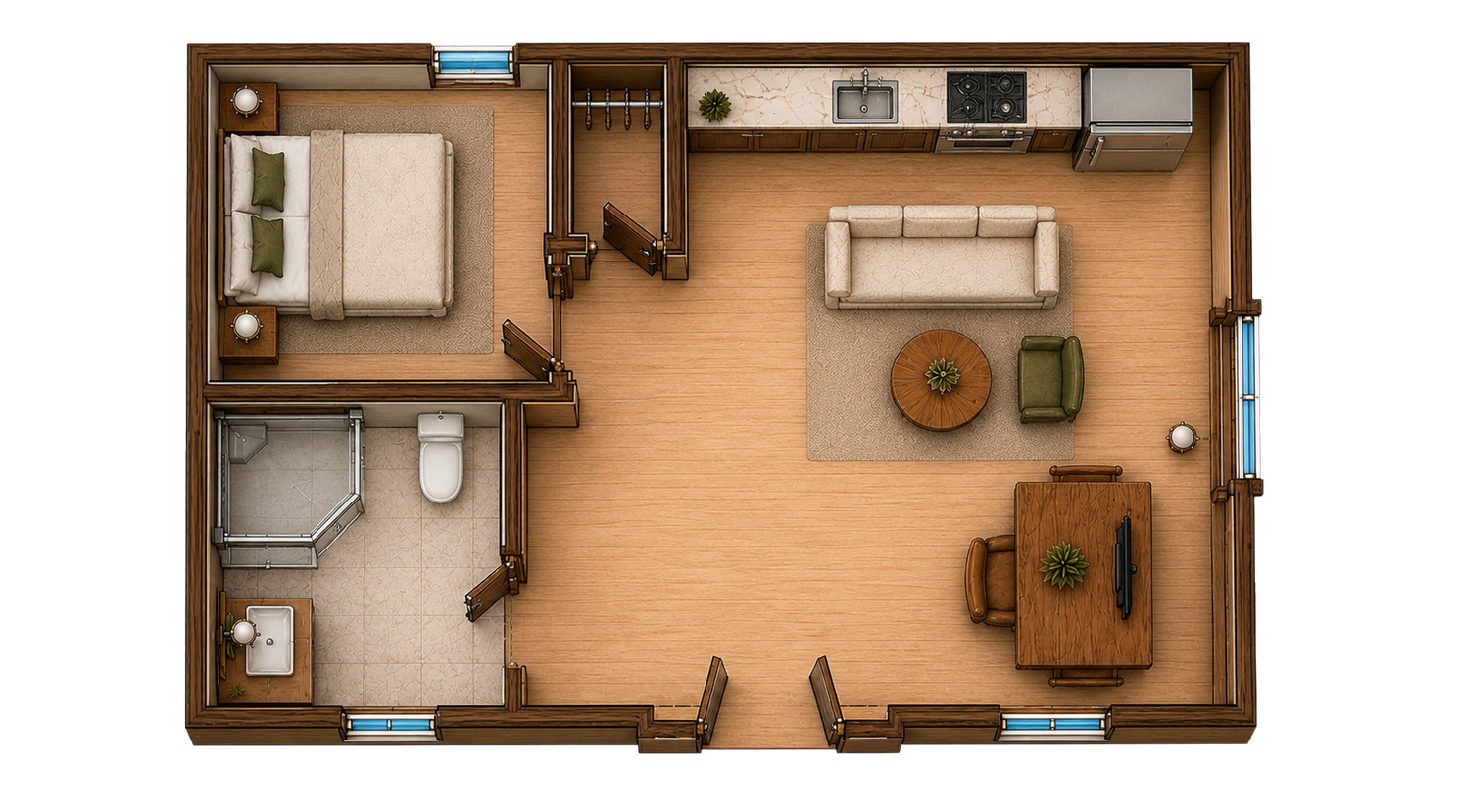

Clean Layout Reference

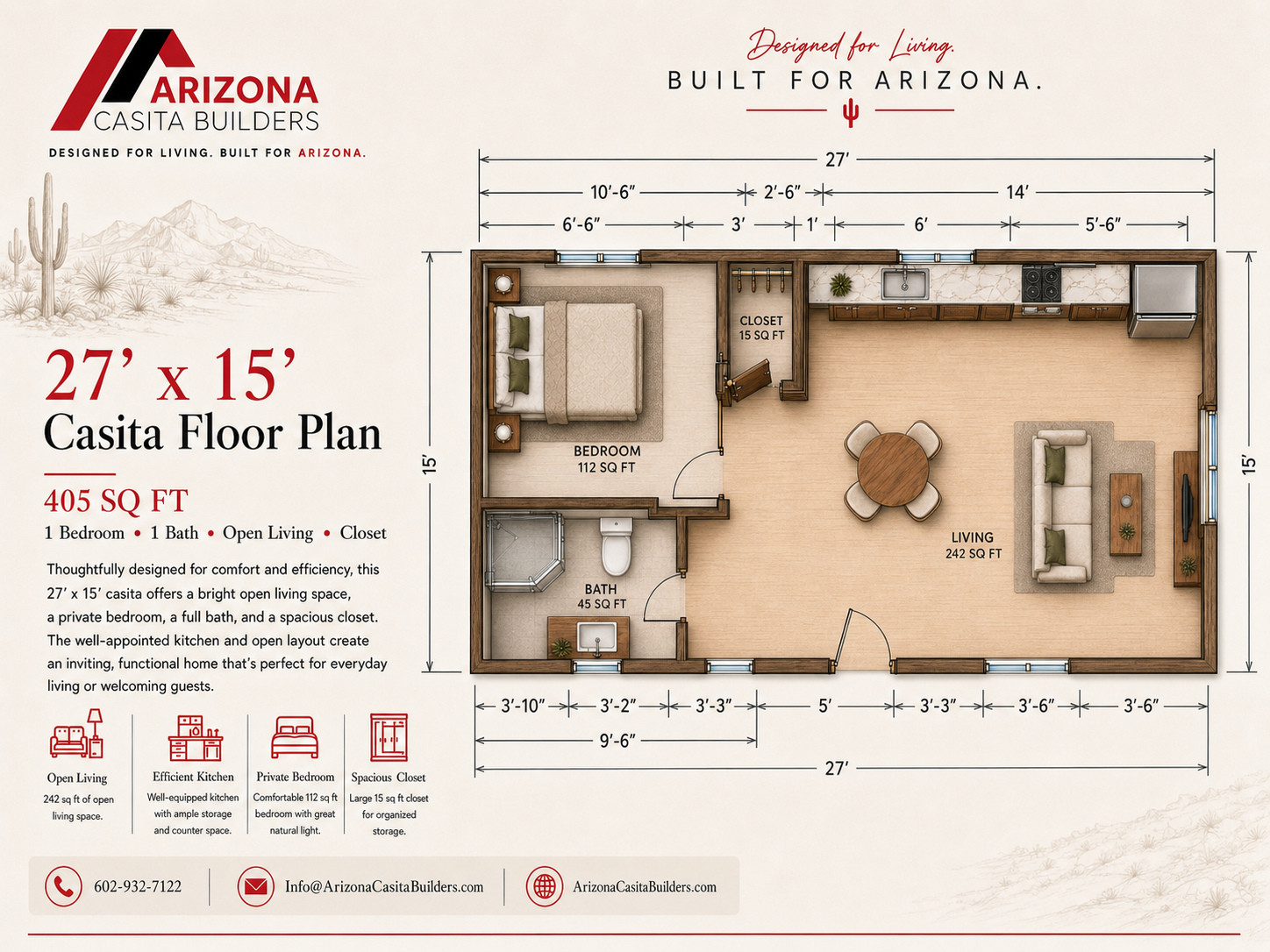

The 27-by-15-foot layout includes a 112-square-foot bedroom, 15-square-foot closet, 242-square-foot living area, and 45-square-foot bathroom.
Build Quality
Designed For Arizona

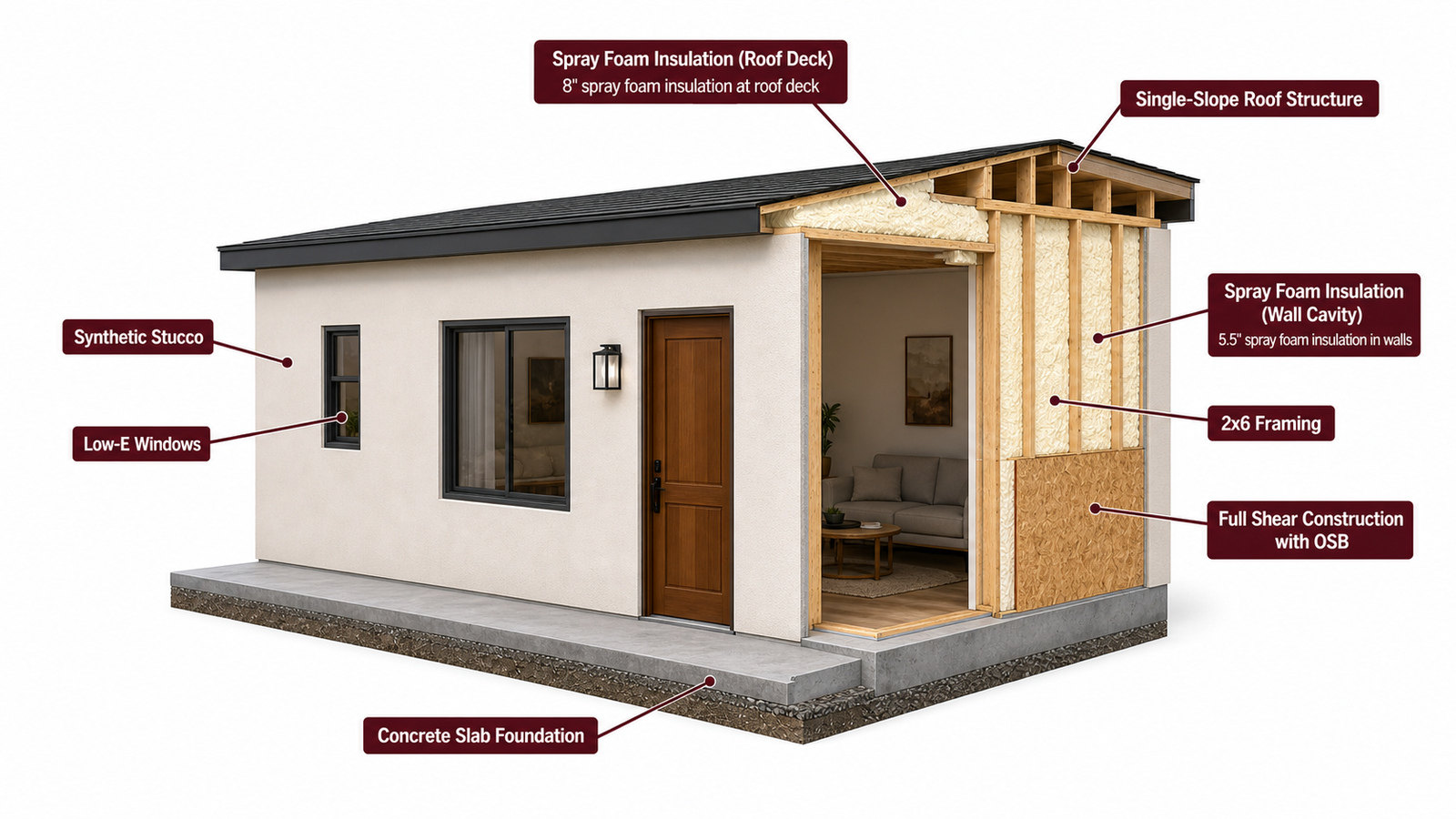

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
