Plan Overview
A Narrow Footprint With A Complete One-Bedroom Layout
The enclosed plan measures 27 by 15 feet and assigns 248 square feet to the living zone.
A 90-square-foot bedroom, 47-square-foot bath, and 20-square-foot closet complete the documented layout.
Open Living Zone
The documented living area accounts for 248 square feet of the plan.
Dedicated Storage
A separate 20-square-foot closet supports the private bedroom.
Interior & Exterior Renderings
405 Sq Ft 27' x 15' One-Bedroom Casita Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.
Floor Plan
Clean Layout Reference

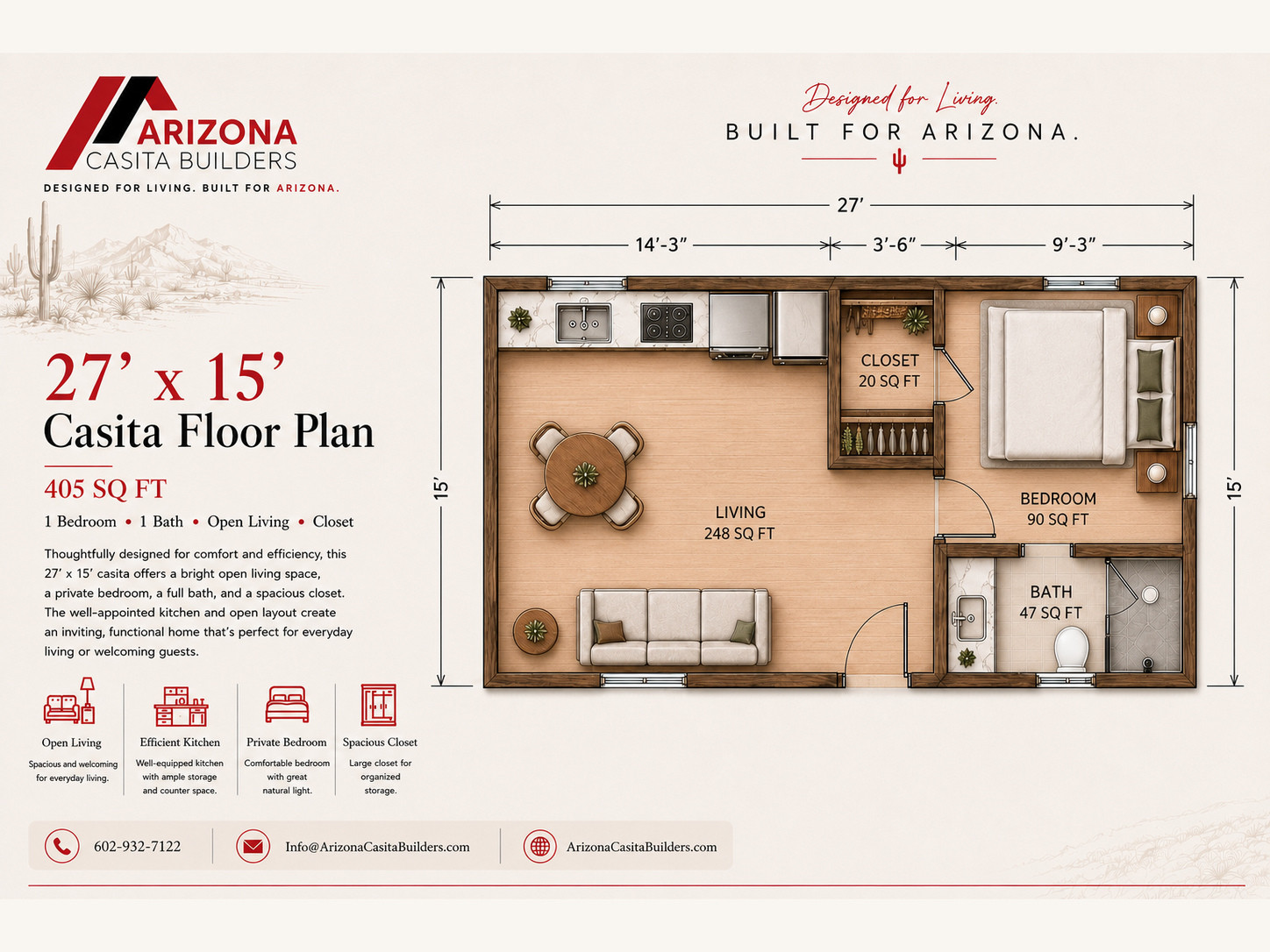

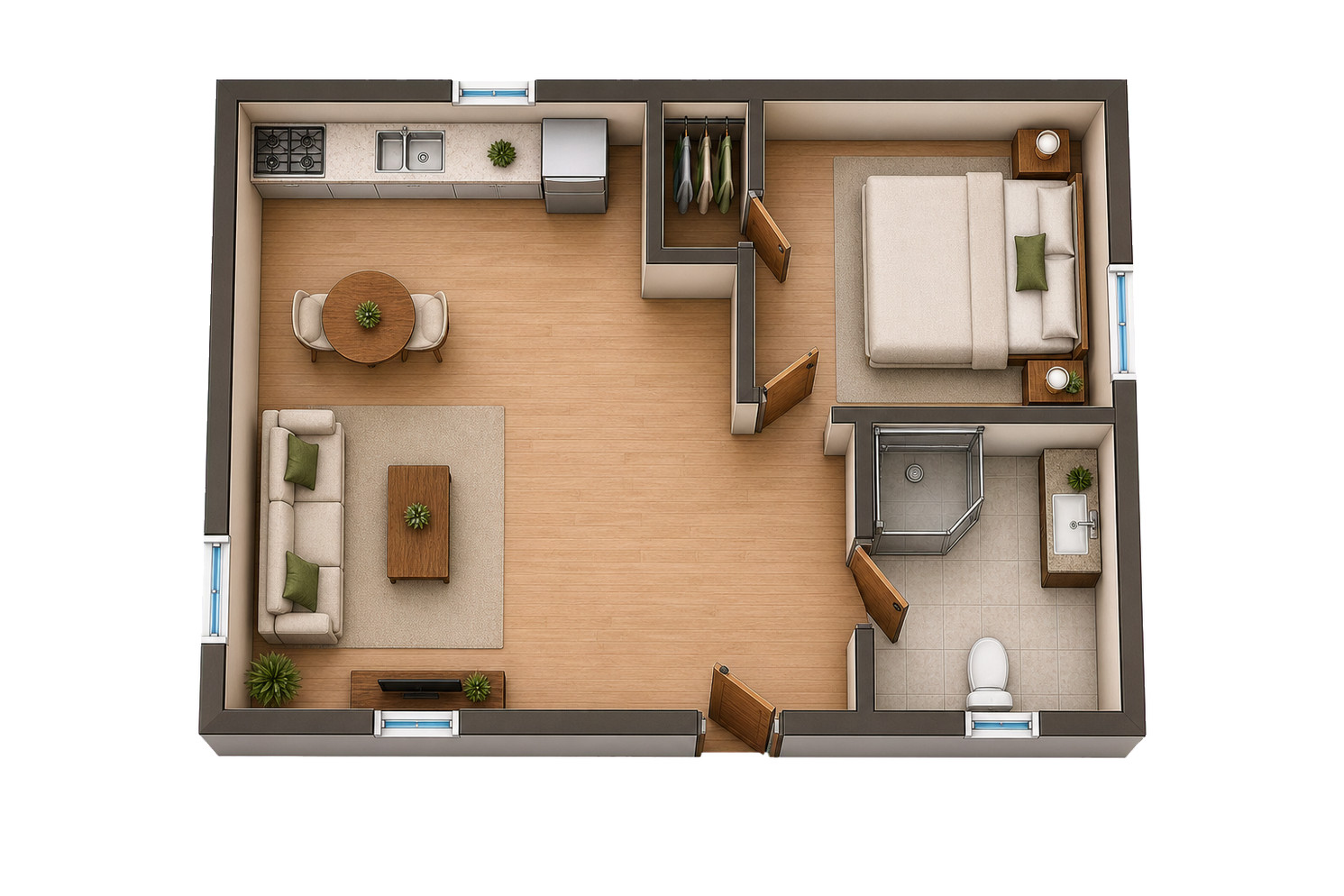

The authoritative source shows a 27-by-15-foot footprint with living, bedroom, bath, and closet zones.
Build Quality
Designed For Arizona

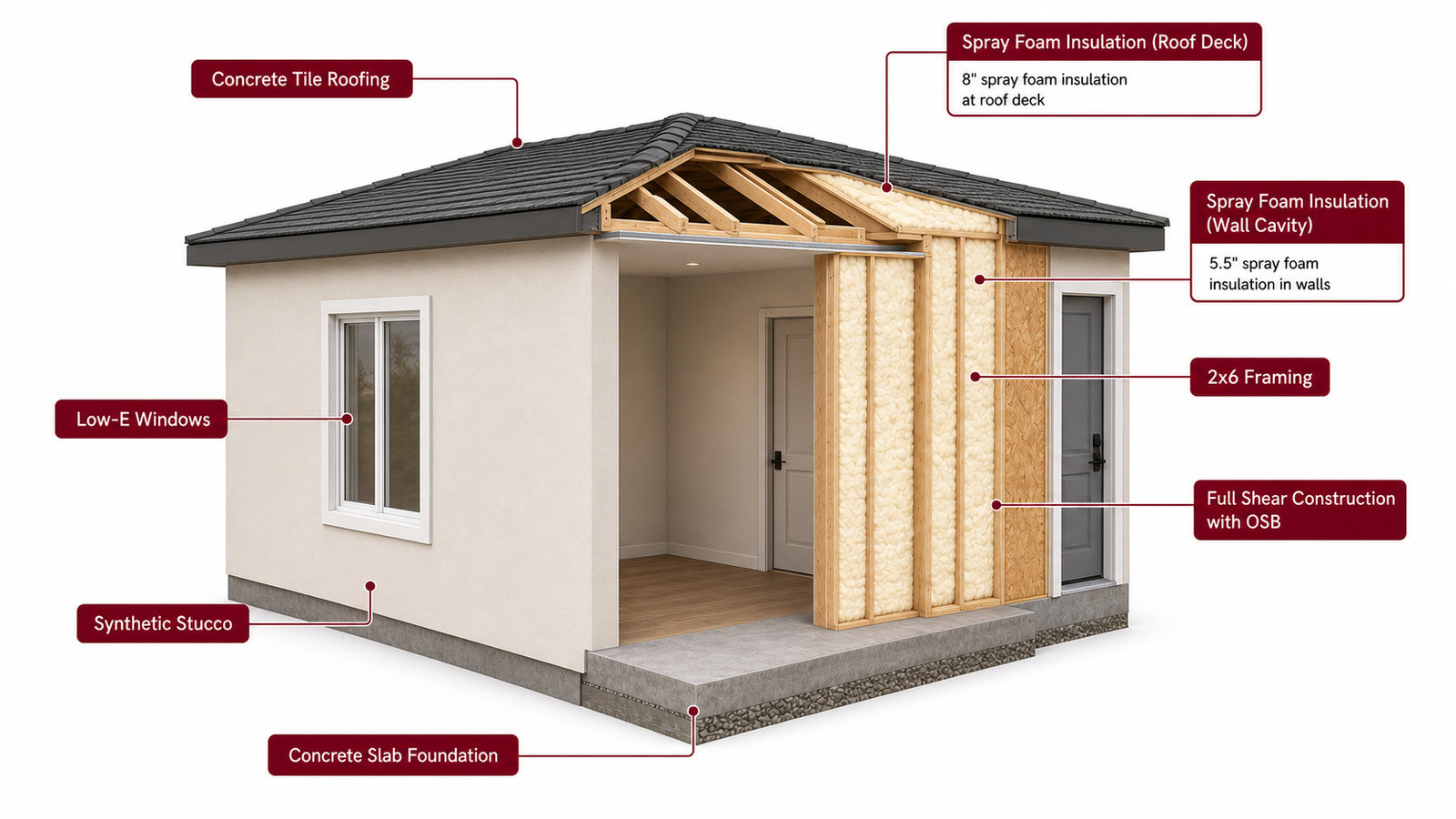

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
