Plan Overview
An L-Shaped Casita With Courtyard Character
The plan occupies a 30-foot by 17-foot overall L-shaped extent rather than a full rectangle.
A 278-square-foot living area joins a 115-square-foot bedroom and 45-square-foot bath.
Courtyard Form
The L-shaped footprint defines a sheltered exterior edge beside the existing residence.
Verified Program
One private bedroom and one full bathroom complete the compact layout.

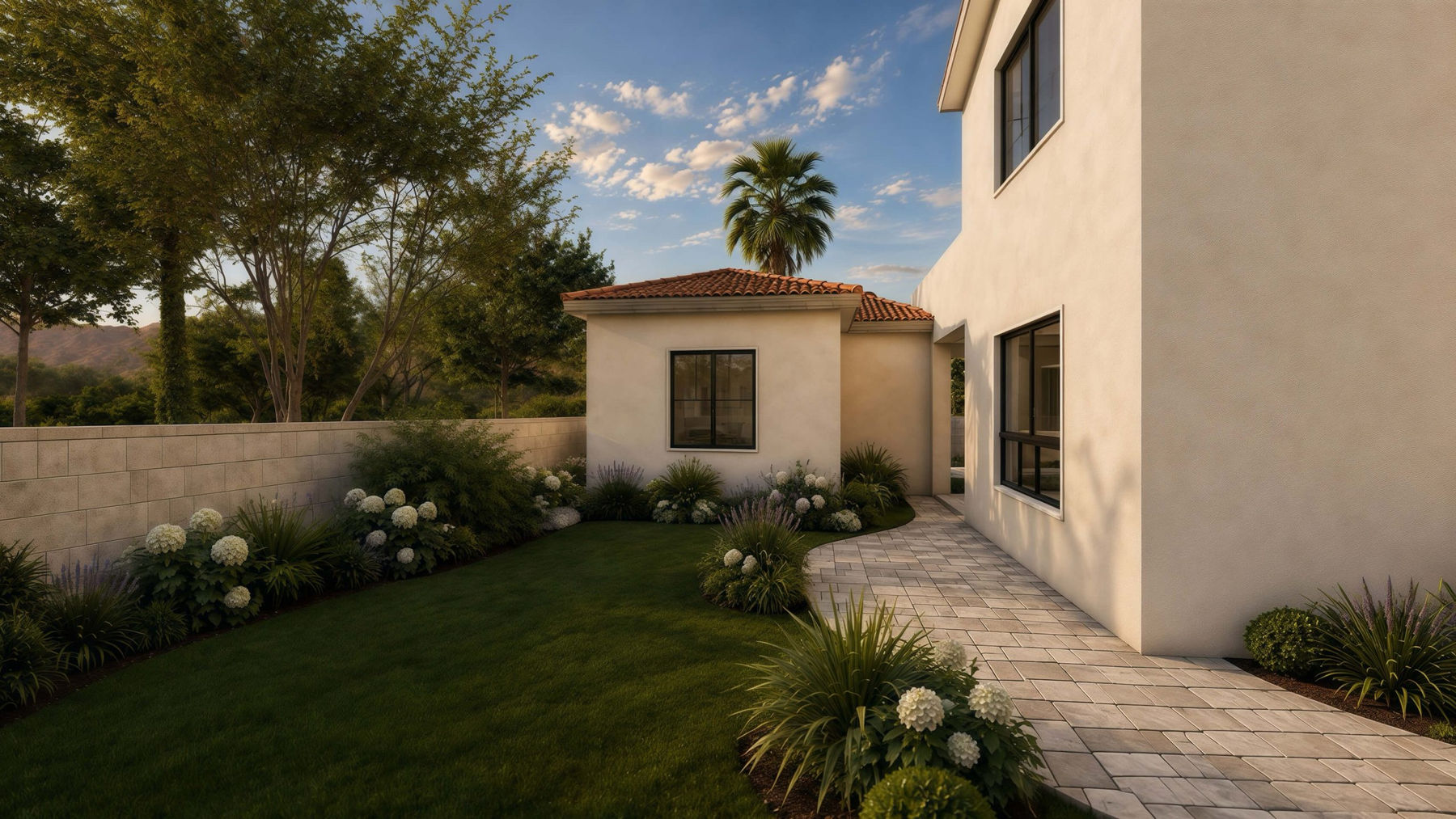

Interior & Exterior Renderings
450 Sq Ft 30' x 17' L-Shaped Attached Casita Floor Plan Renderings

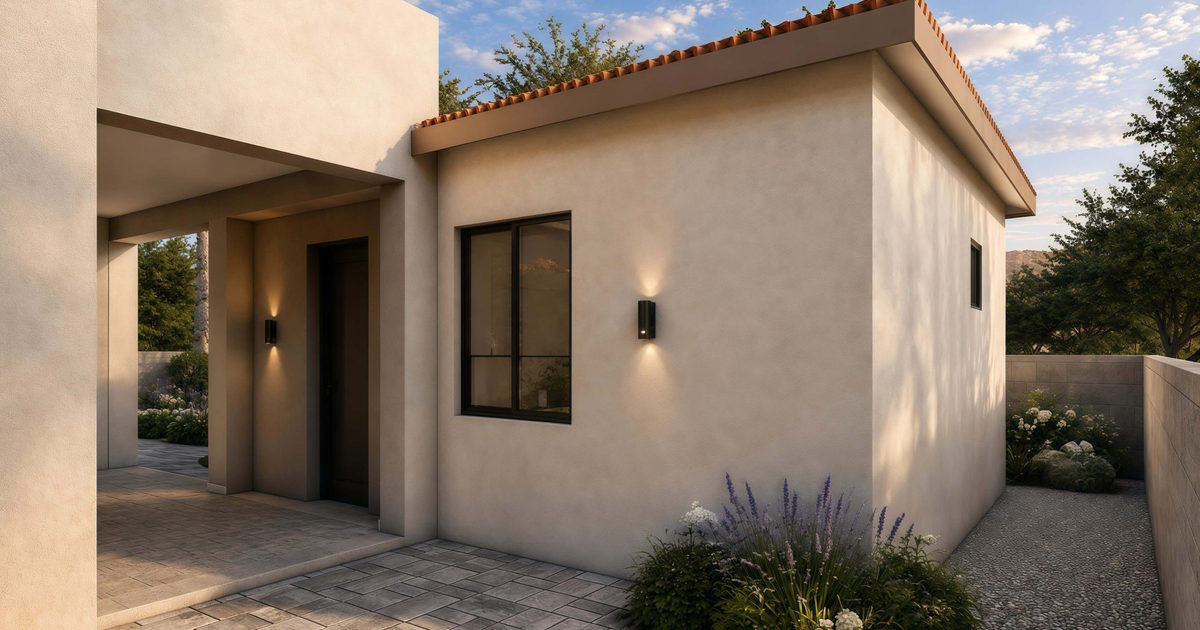

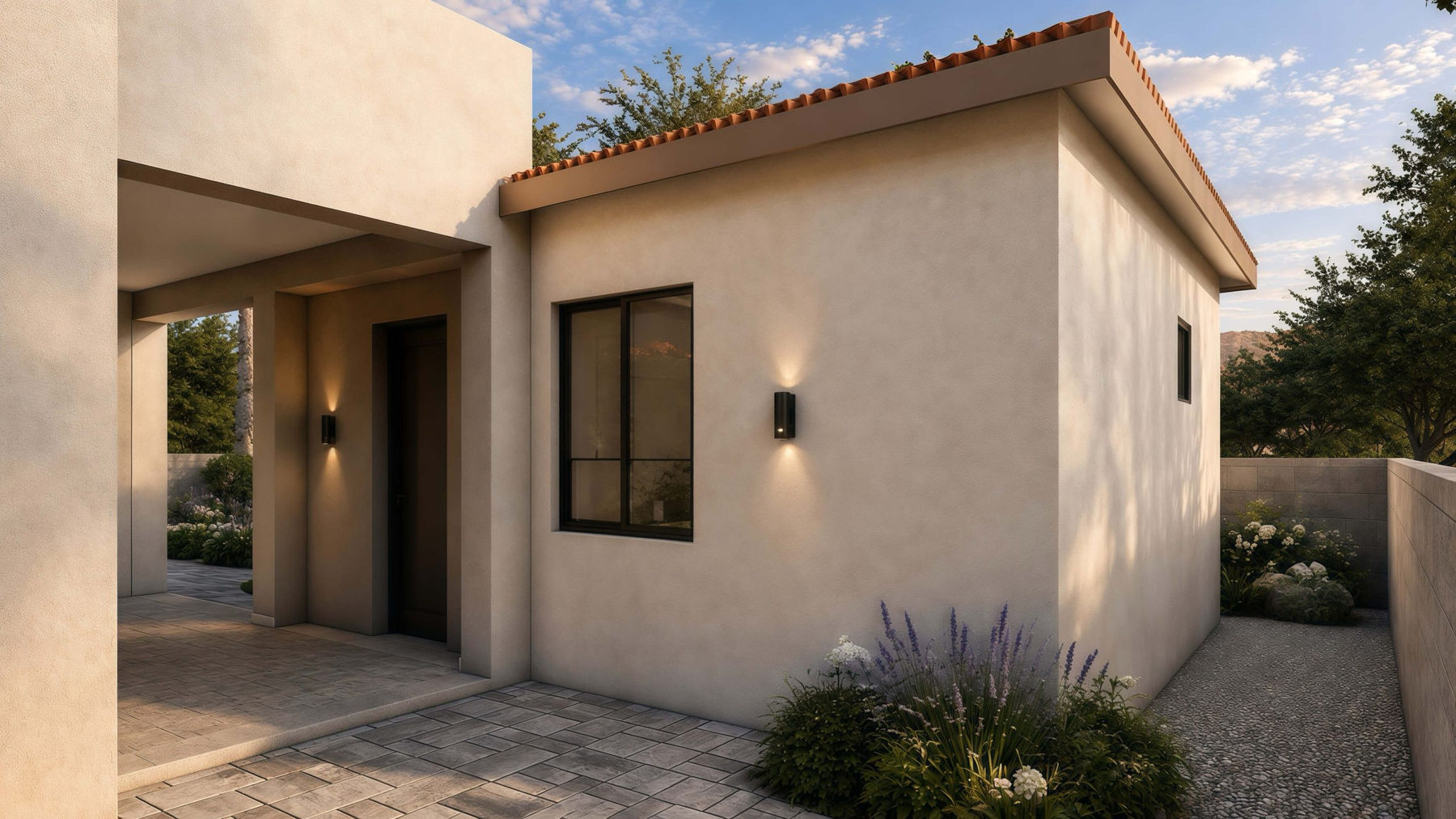

Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

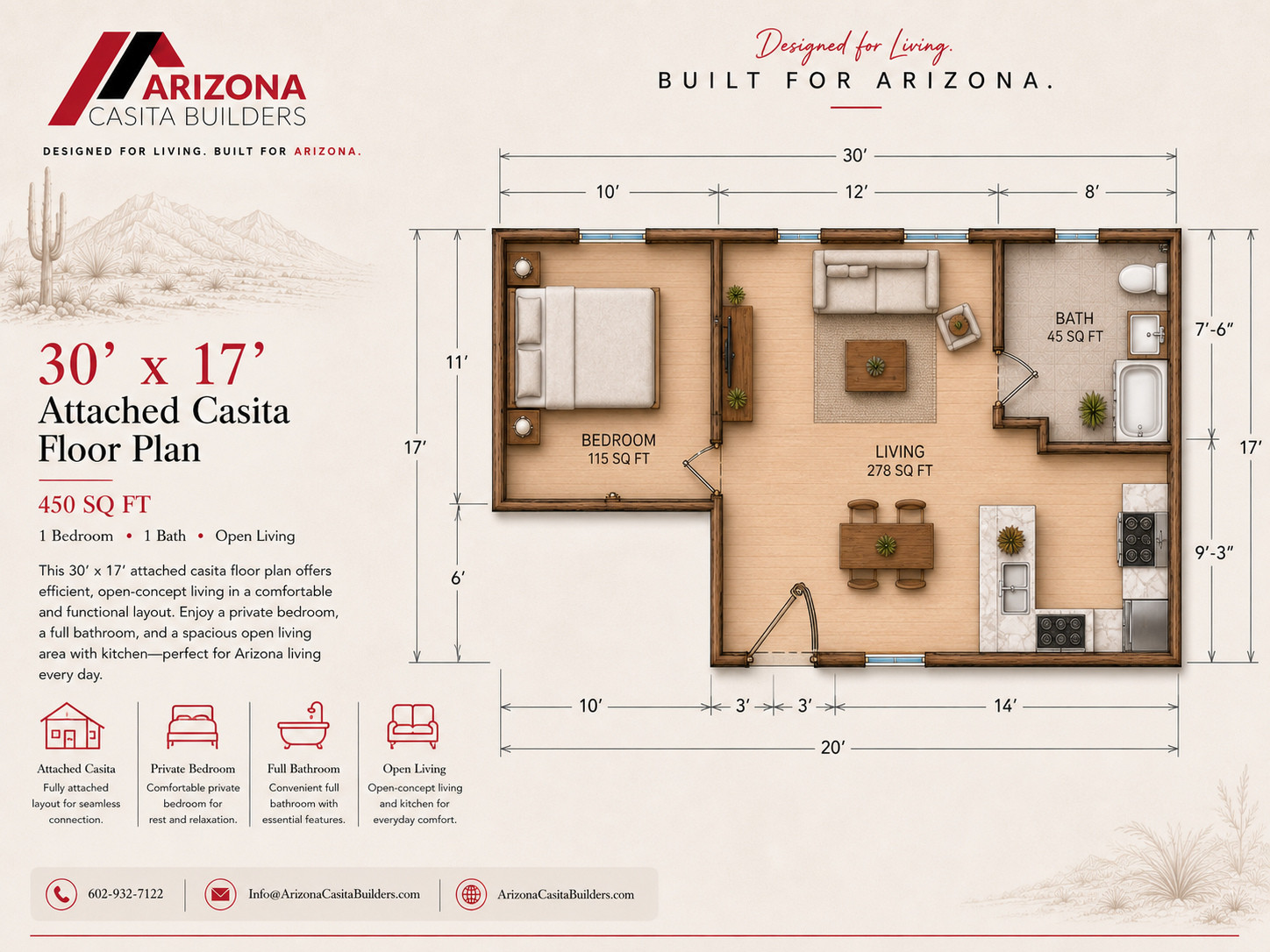

Floor Plan
Clean Layout Reference

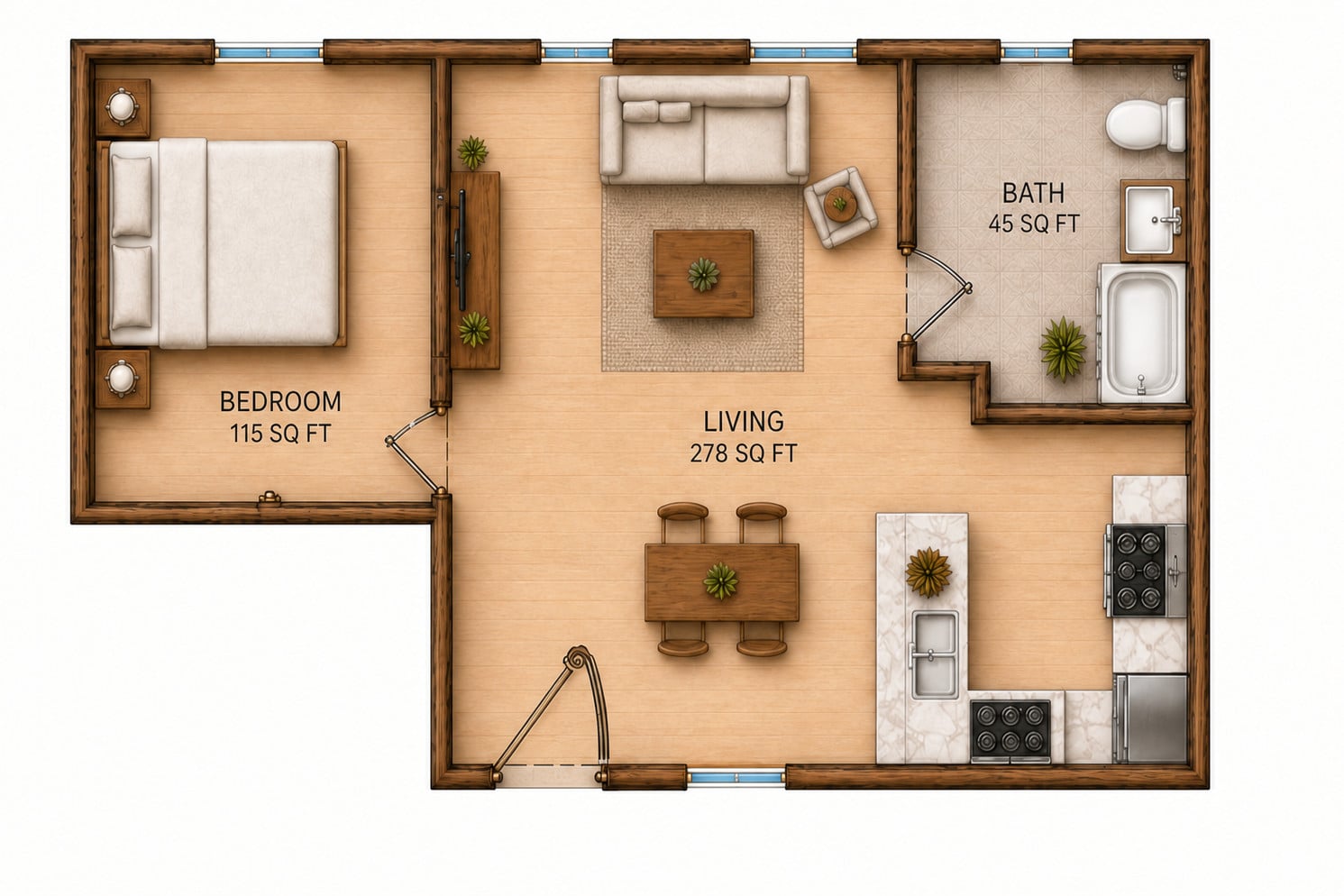

The L-shaped plan spans 30 by 17 feet overall, with a 20-foot lower run, 14-foot side segment, and 3-foot offset.
Build Quality
Designed For Arizona

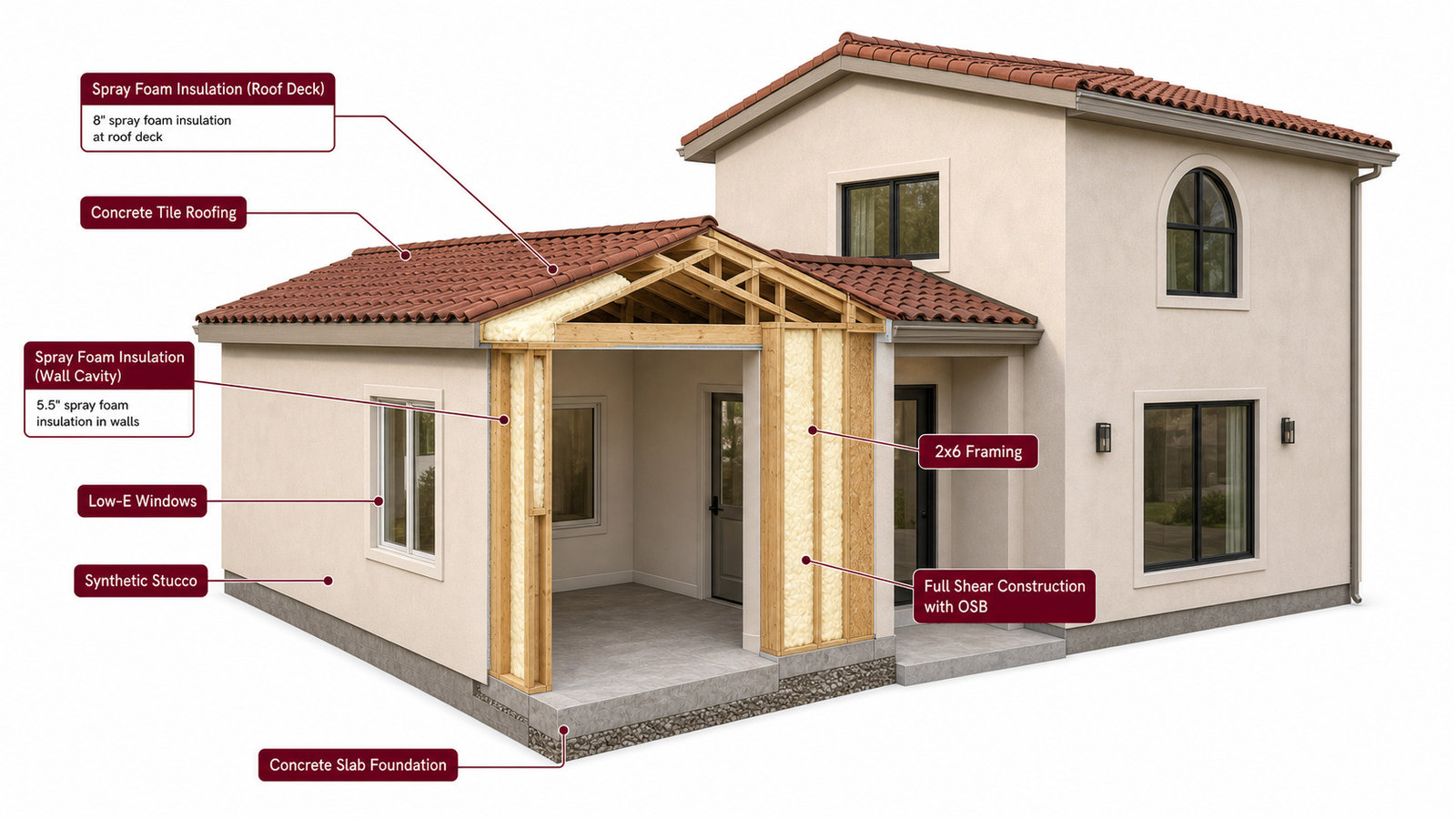

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
