Plan Overview
A Clean Rectangle With Built-In Daily Function
The source drawing documents a 30-by-20-foot enclosed footprint totaling 600 square feet.
One bedroom, one bathroom, closet storage, and dedicated laundry support comfortable day-to-day use.
Laundry Included
A dedicated laundry function is documented within the enclosed plan.
Simple Building Form
The rectangular footprint supports a direct and efficient room arrangement.
Interior & Exterior Renderings

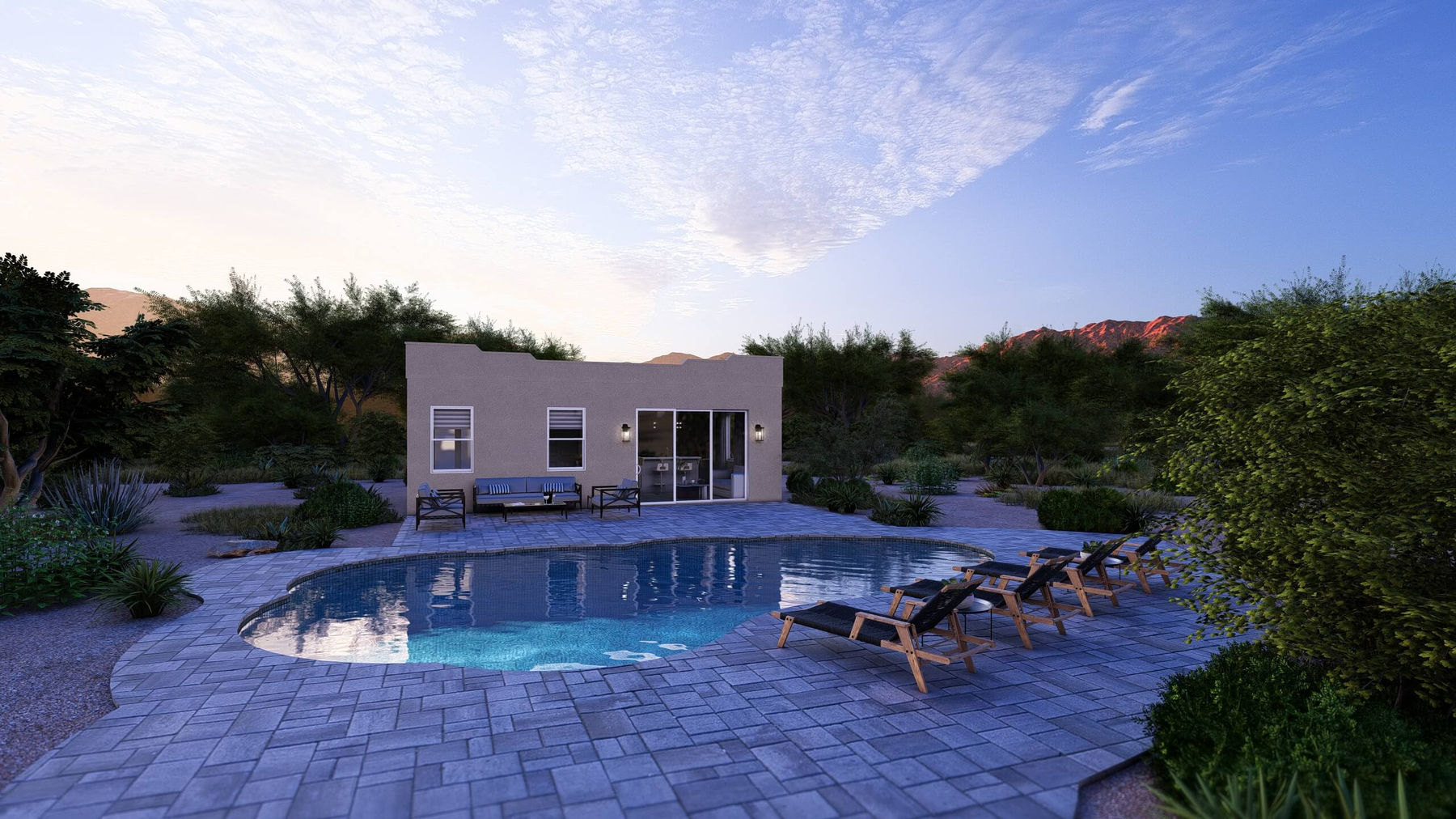

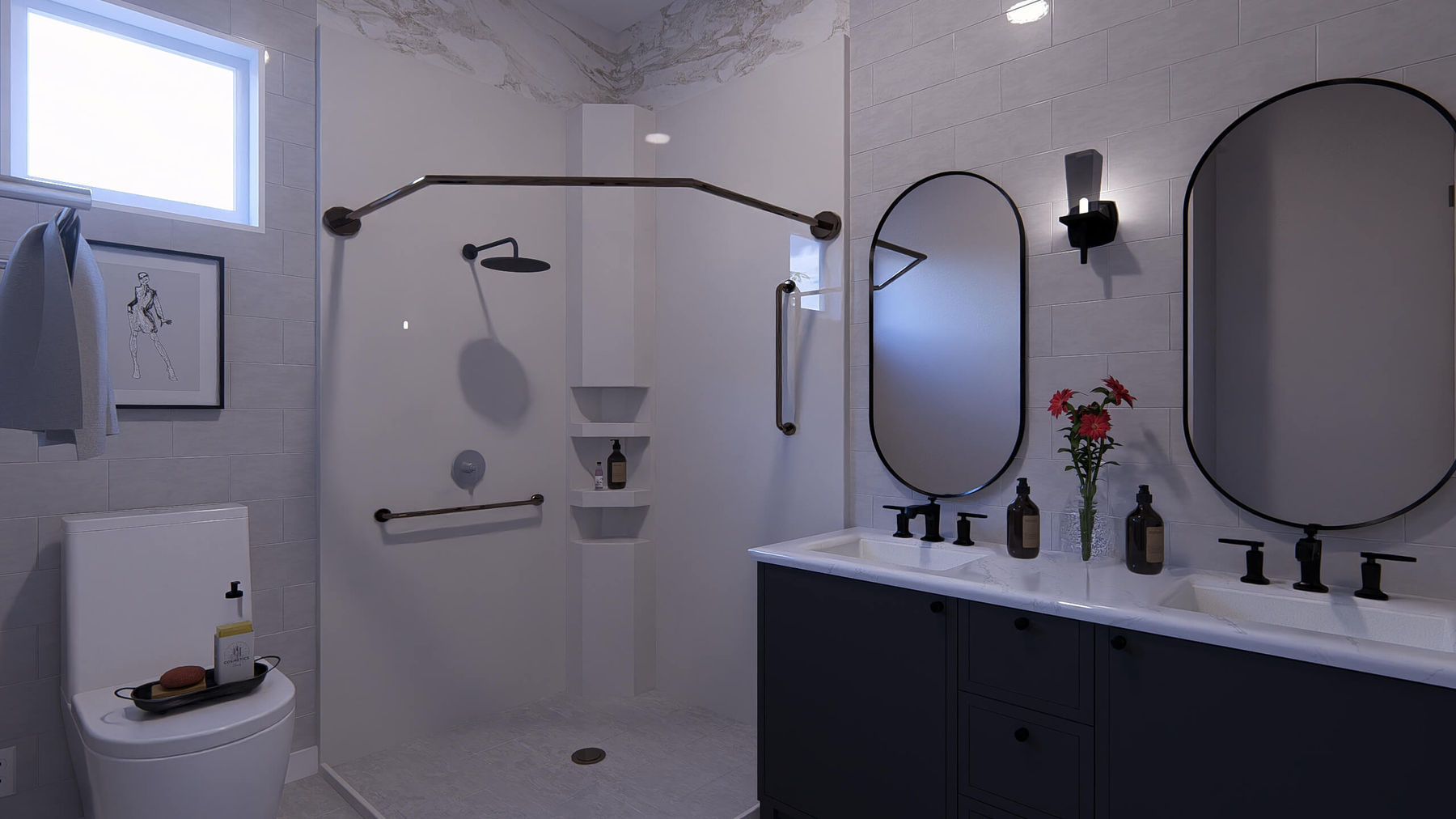

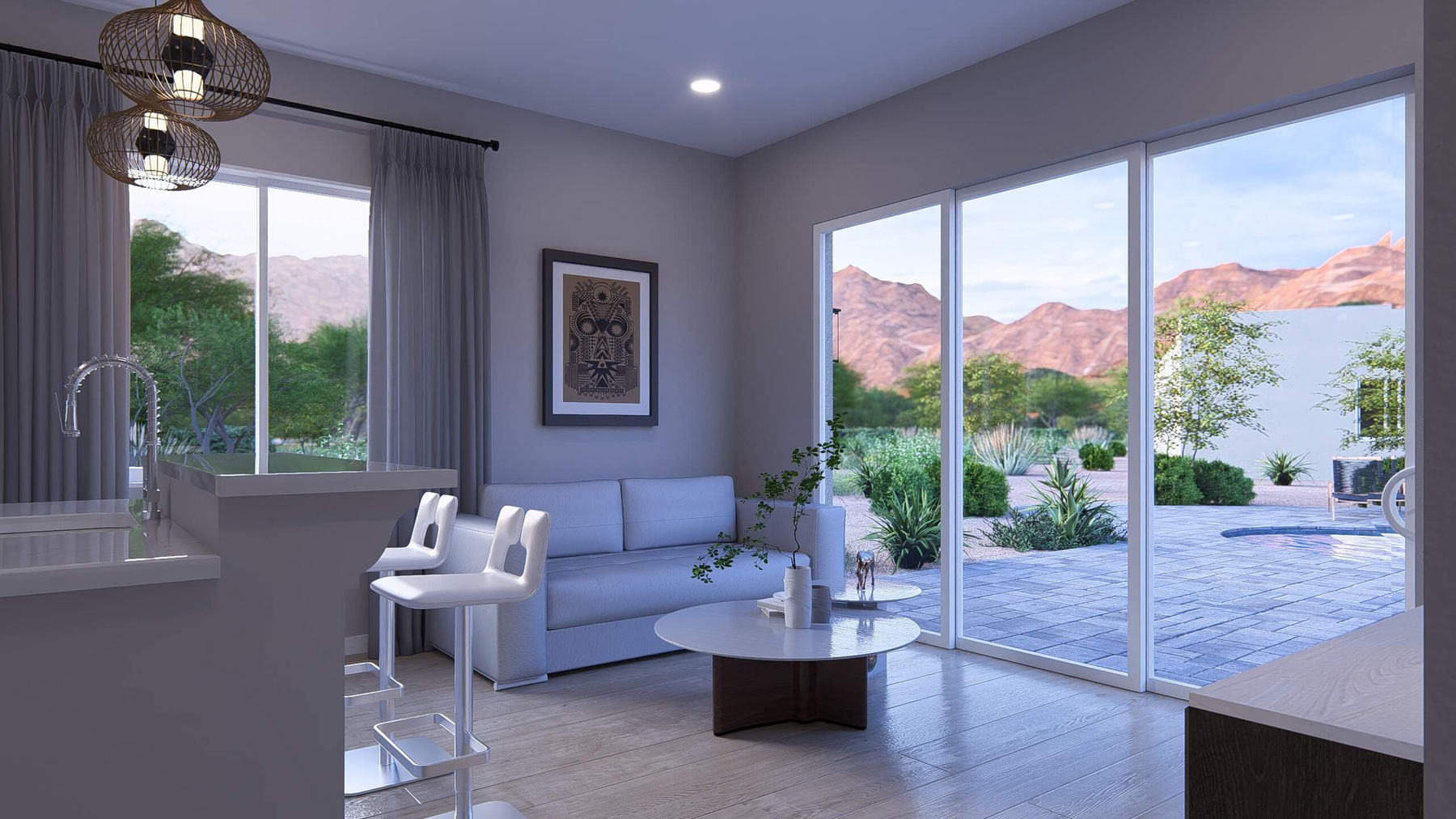

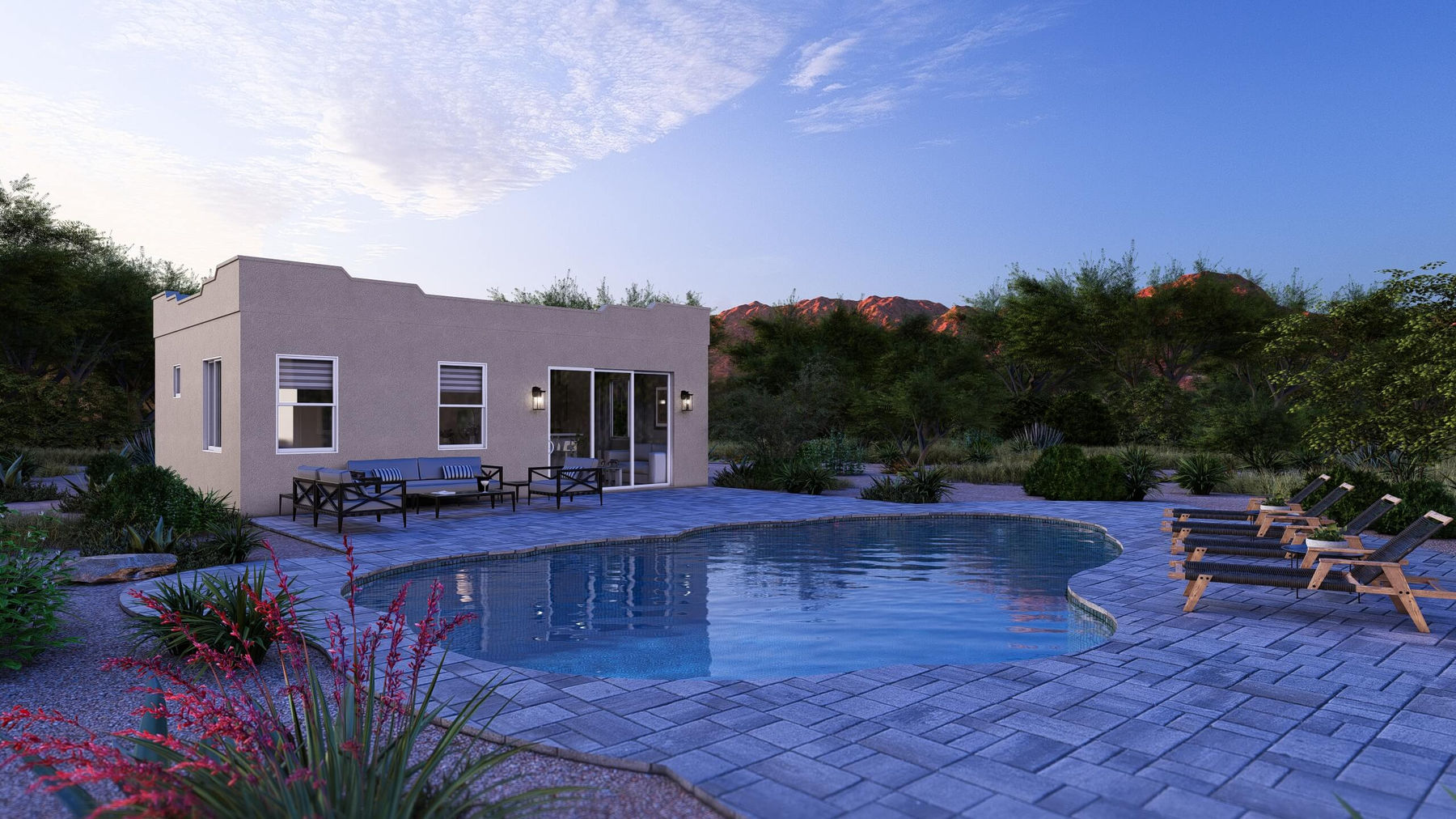

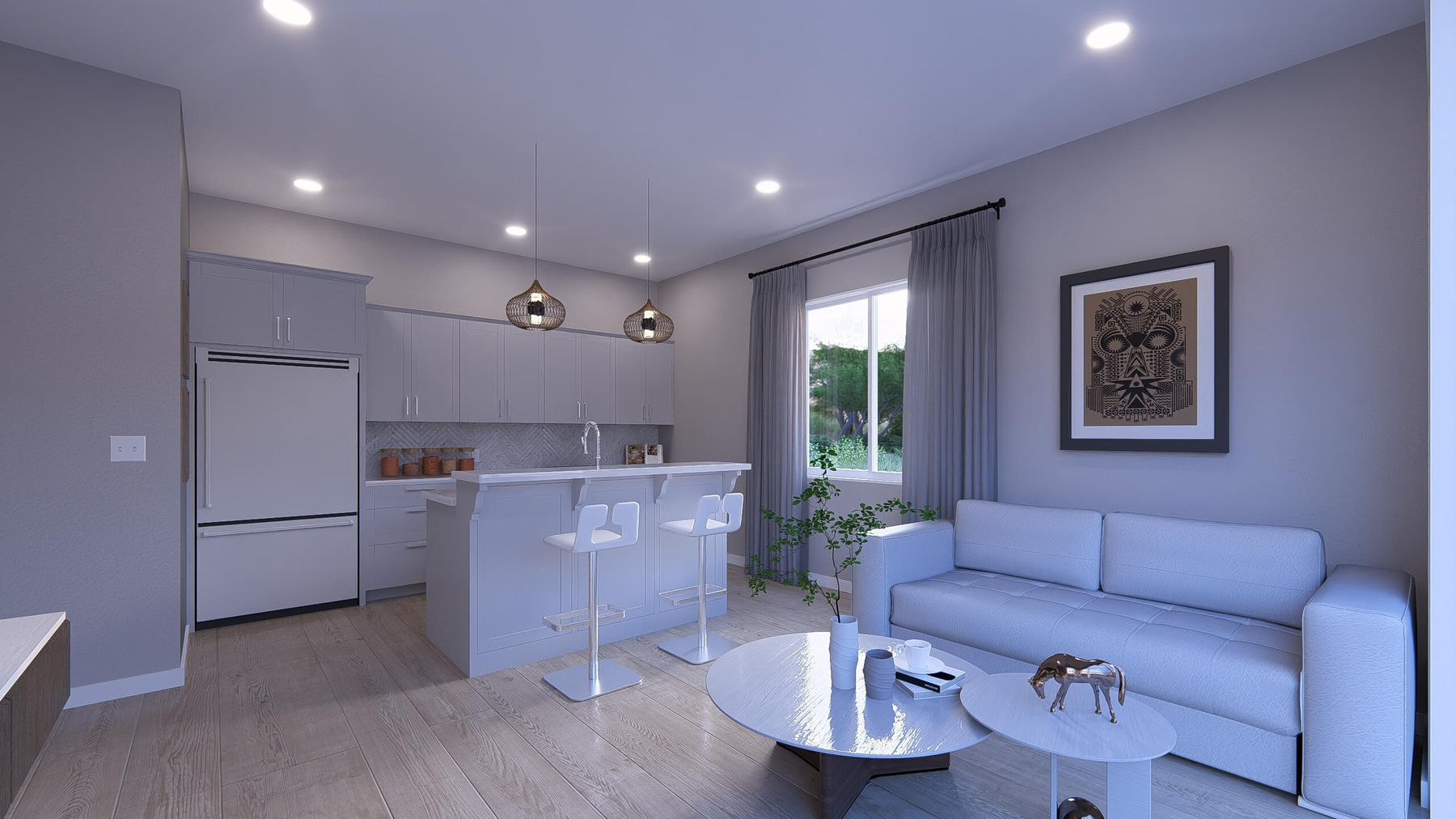

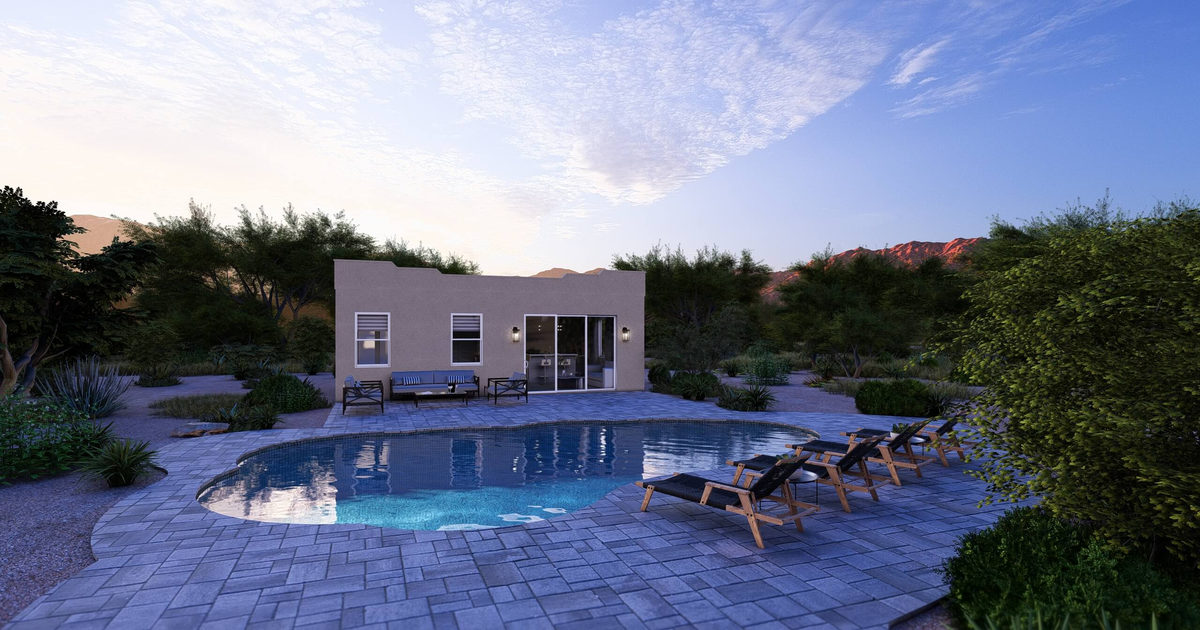

600 Sq Ft 30' x 20' Casita With Laundry Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

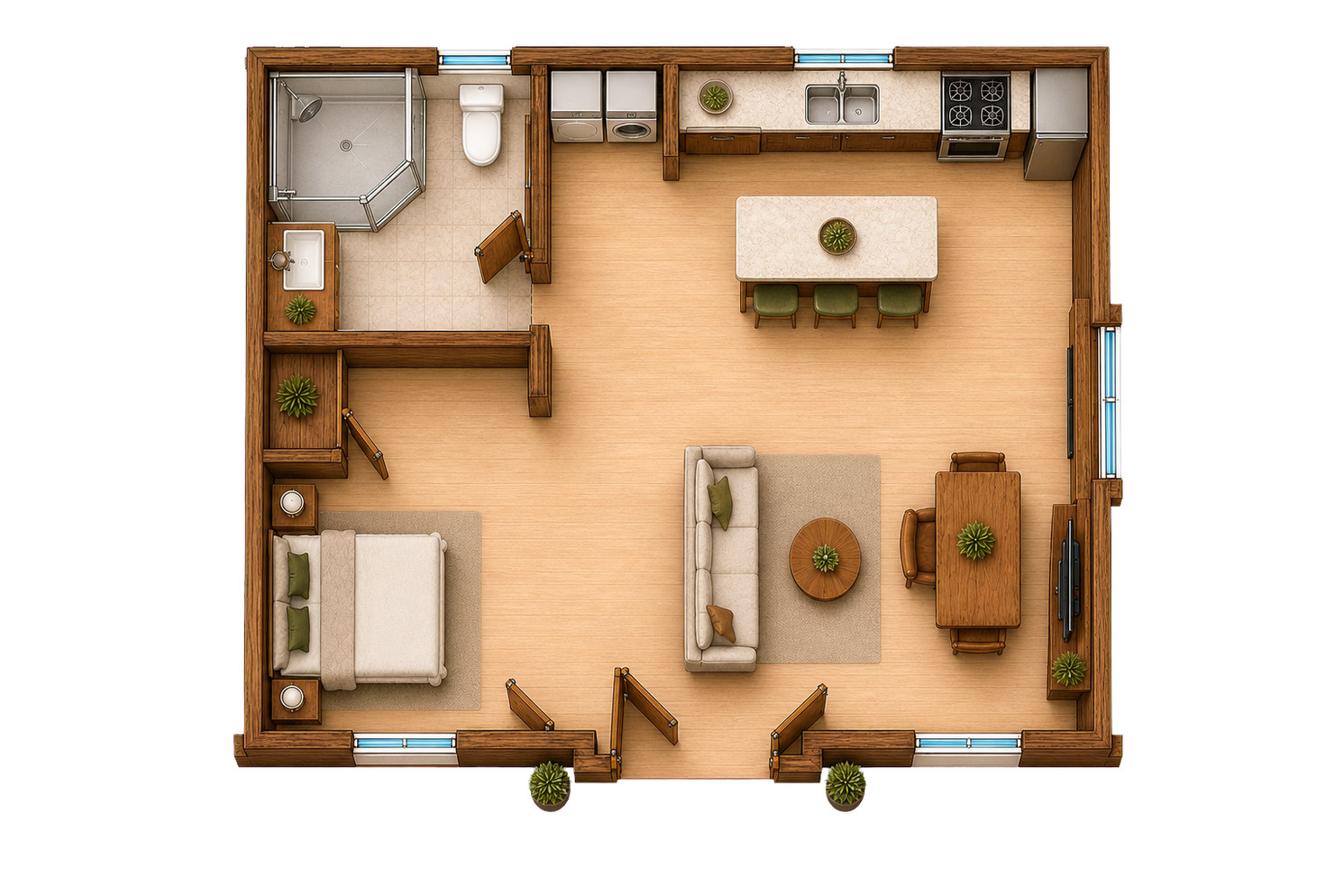

Floor Plan
Clean Layout Reference

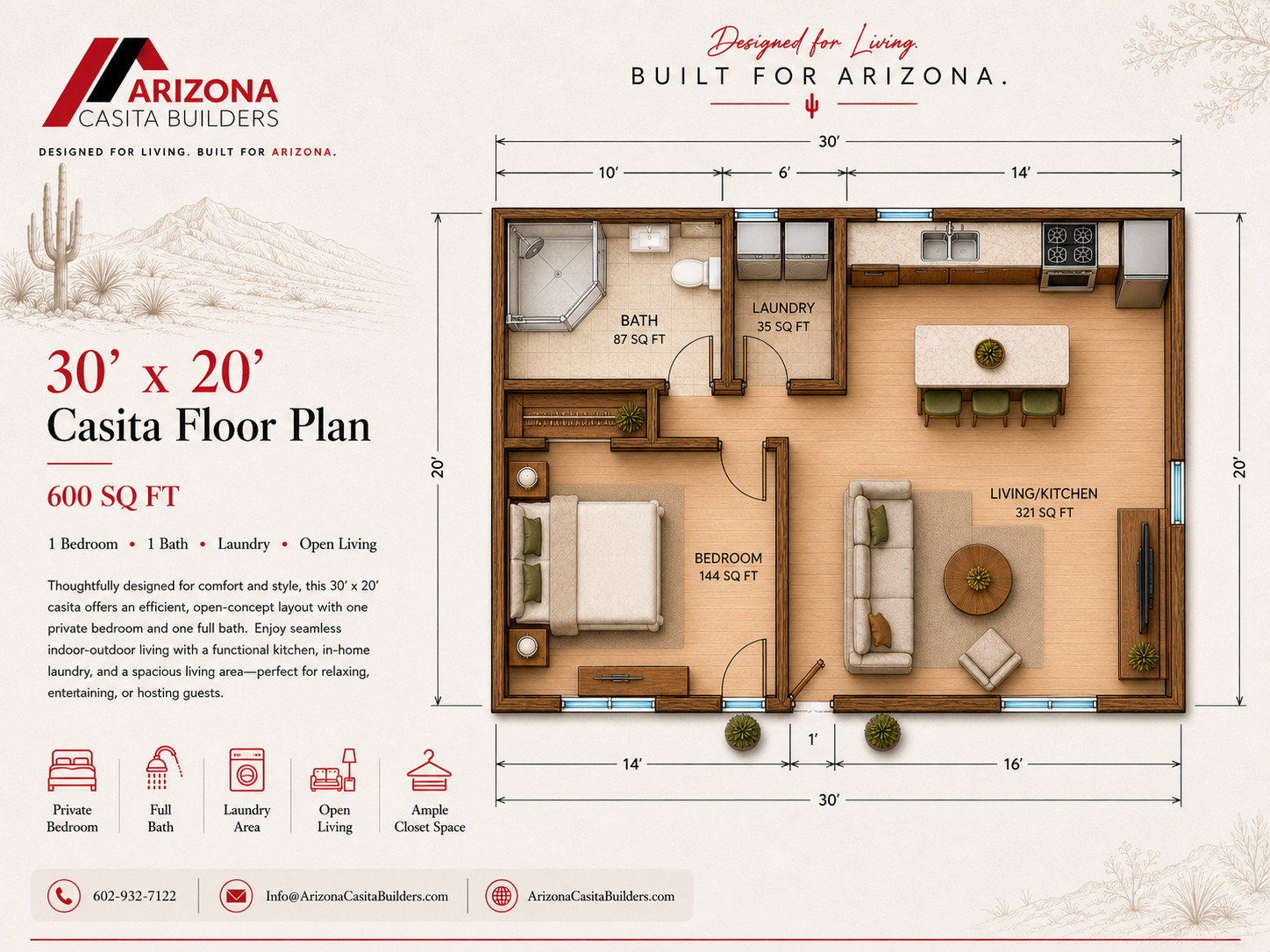

The authoritative source documents a 30-by-20-foot rectangle with one bedroom, one bathroom, closet storage, laundry, and open living space.
Build Quality
Designed For Arizona

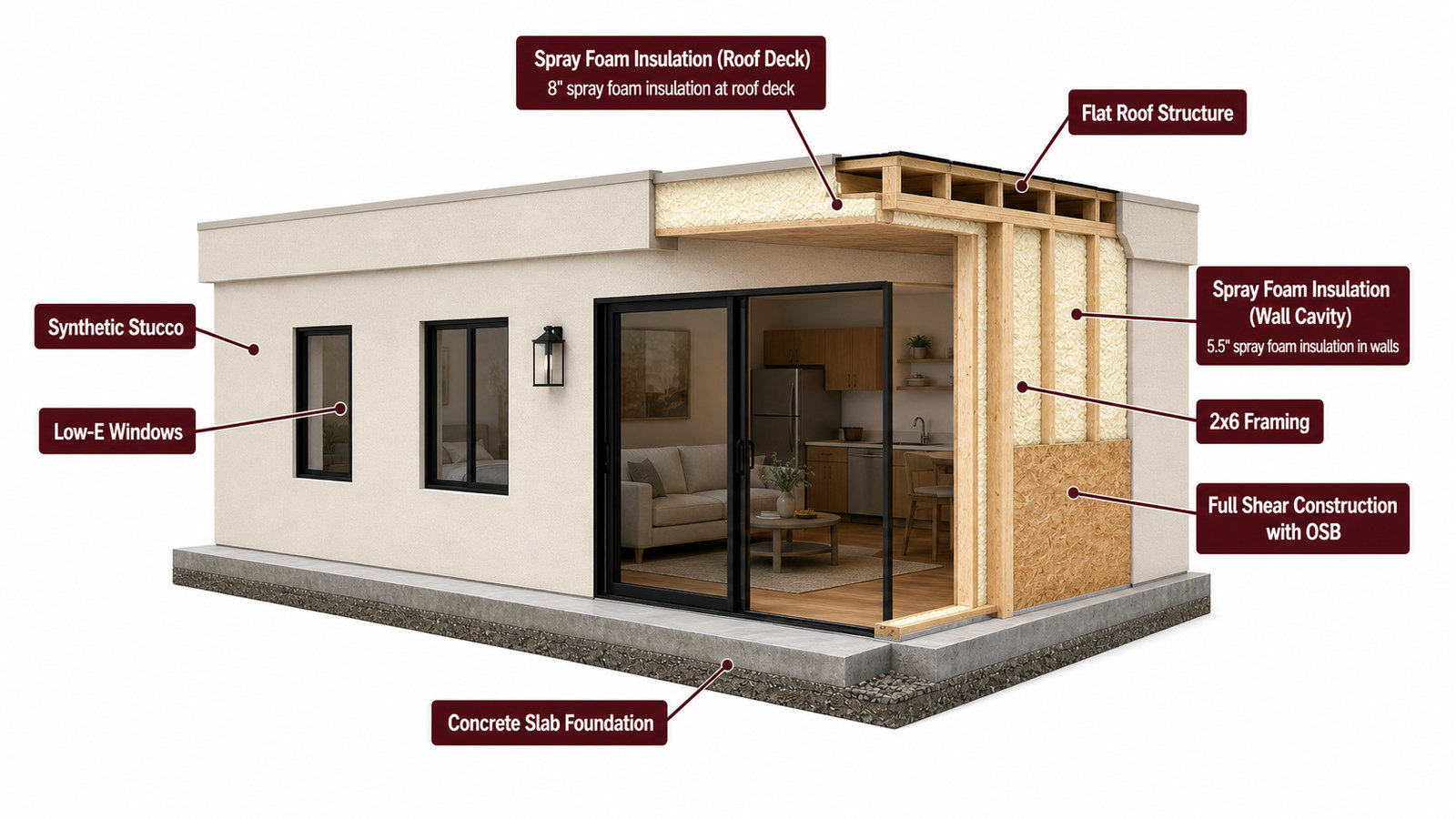

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
