Plan Overview
Everyday Utility In A Compact One-Bedroom Plan
The source drawing documents a 30-by-20-foot enclosed footprint totaling 600 square feet.
Along with one bedroom and one bathroom, the plan includes dedicated laundry, pantry, and closet functions.
Dedicated Laundry
Laundry is documented as a separate function within the compact plan.
Pantry Storage
A pantry adds practical kitchen storage without enlarging the footprint.

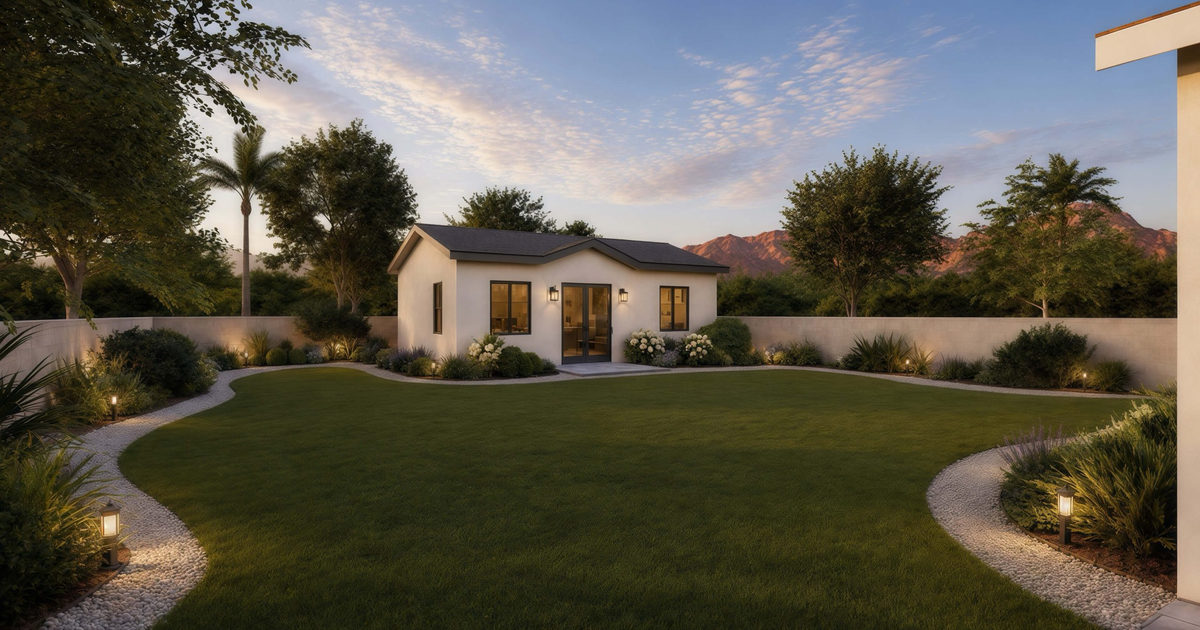

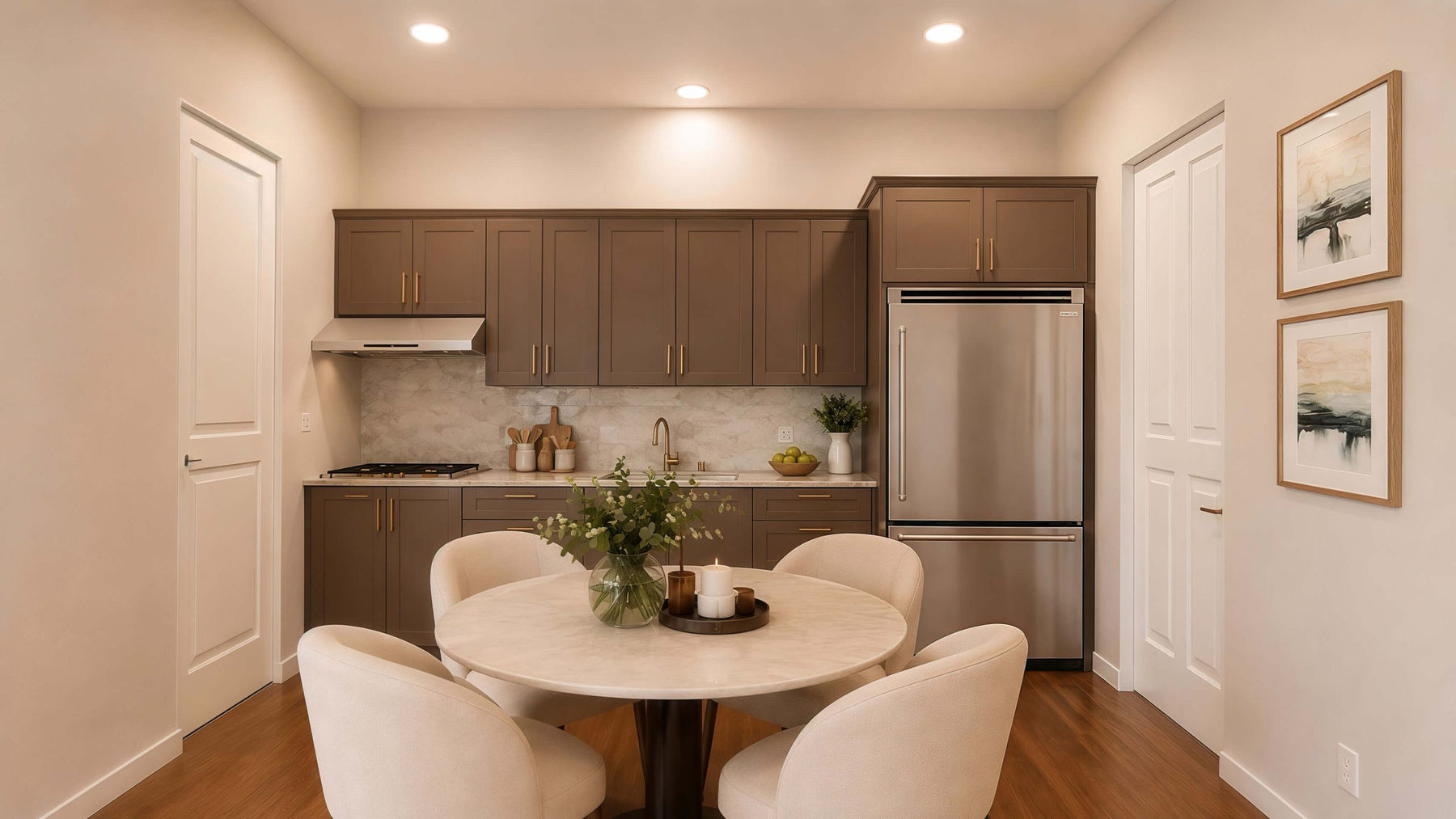

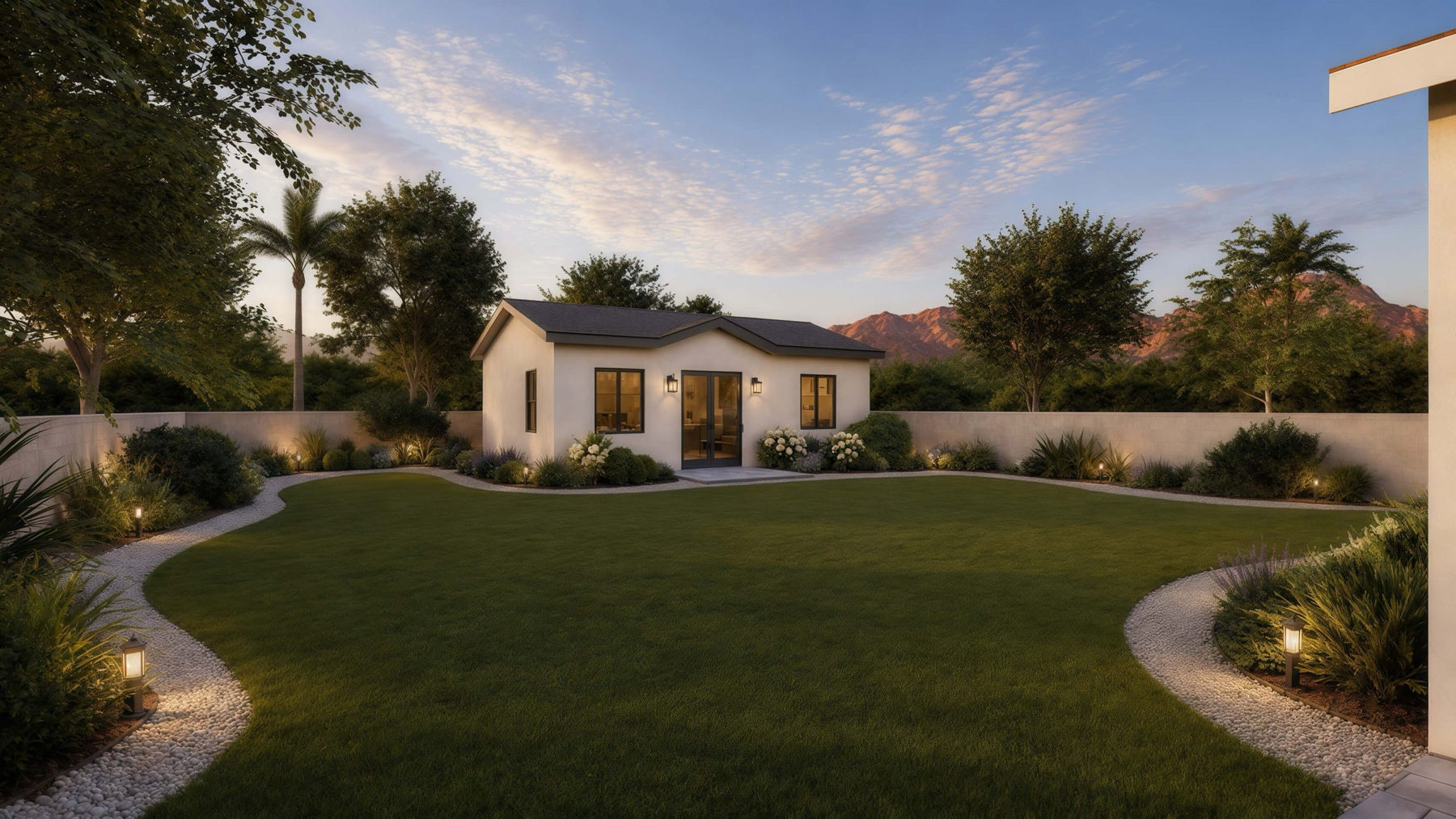

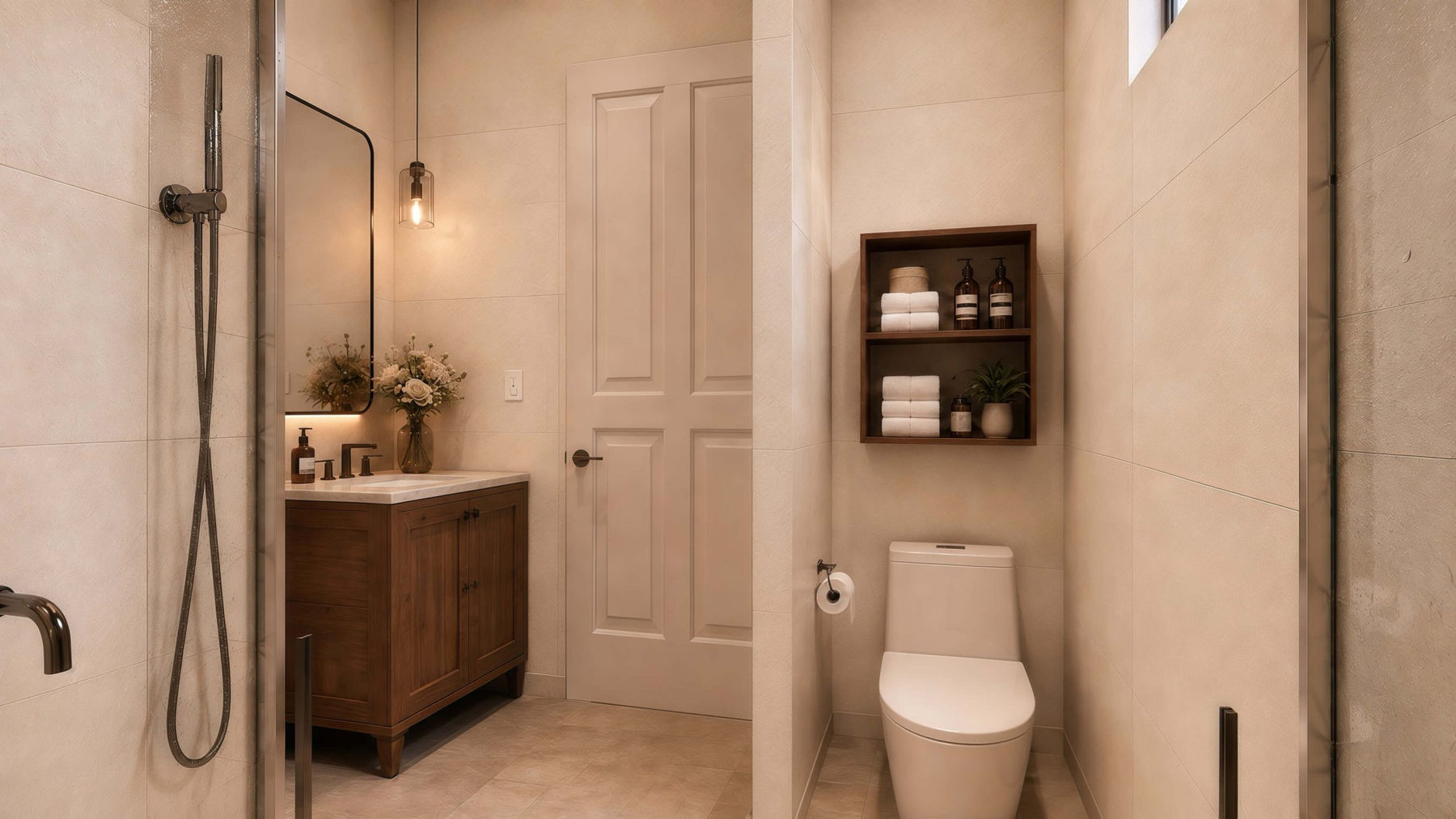

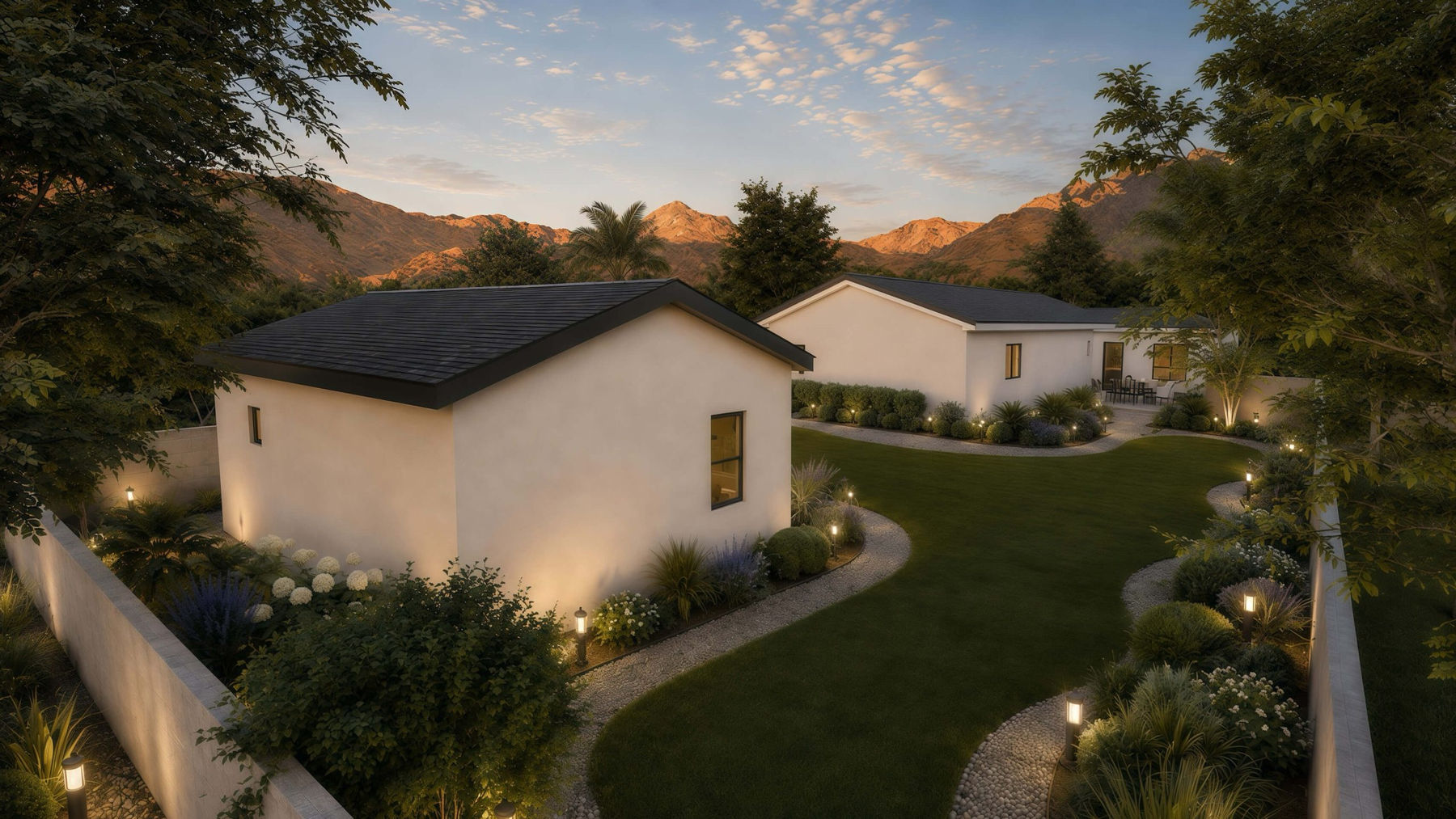

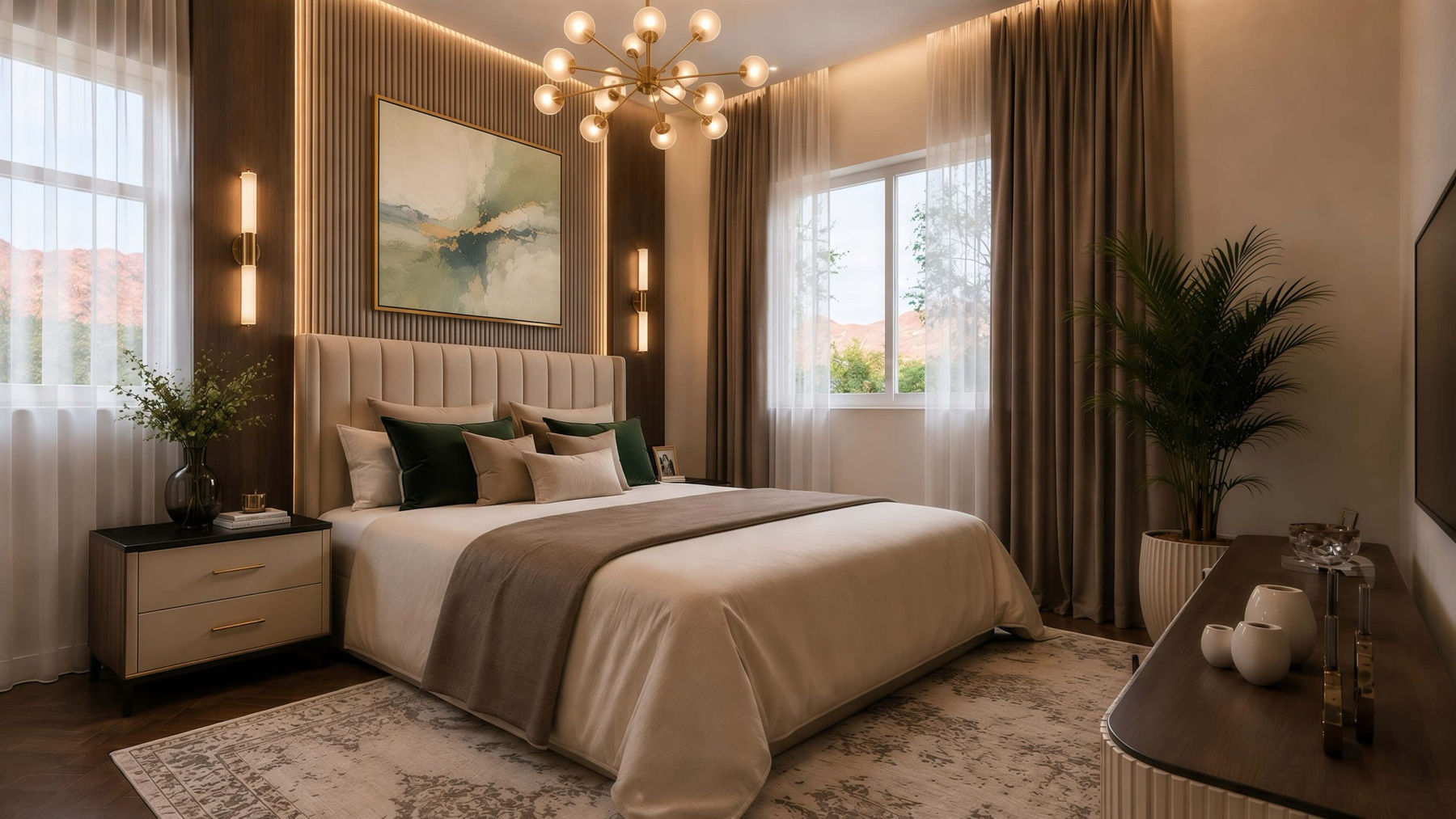

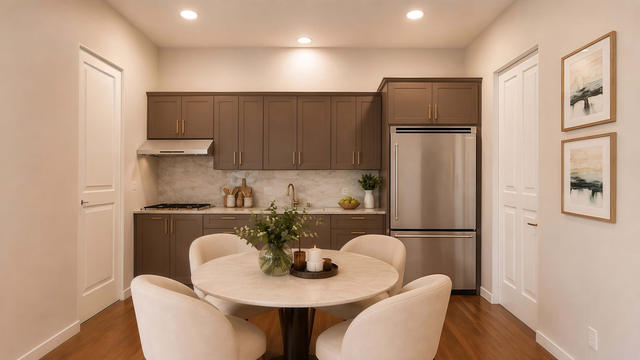

Interior & Exterior Renderings
600 Sq Ft 30' x 20' Casita With Pantry And Laundry Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

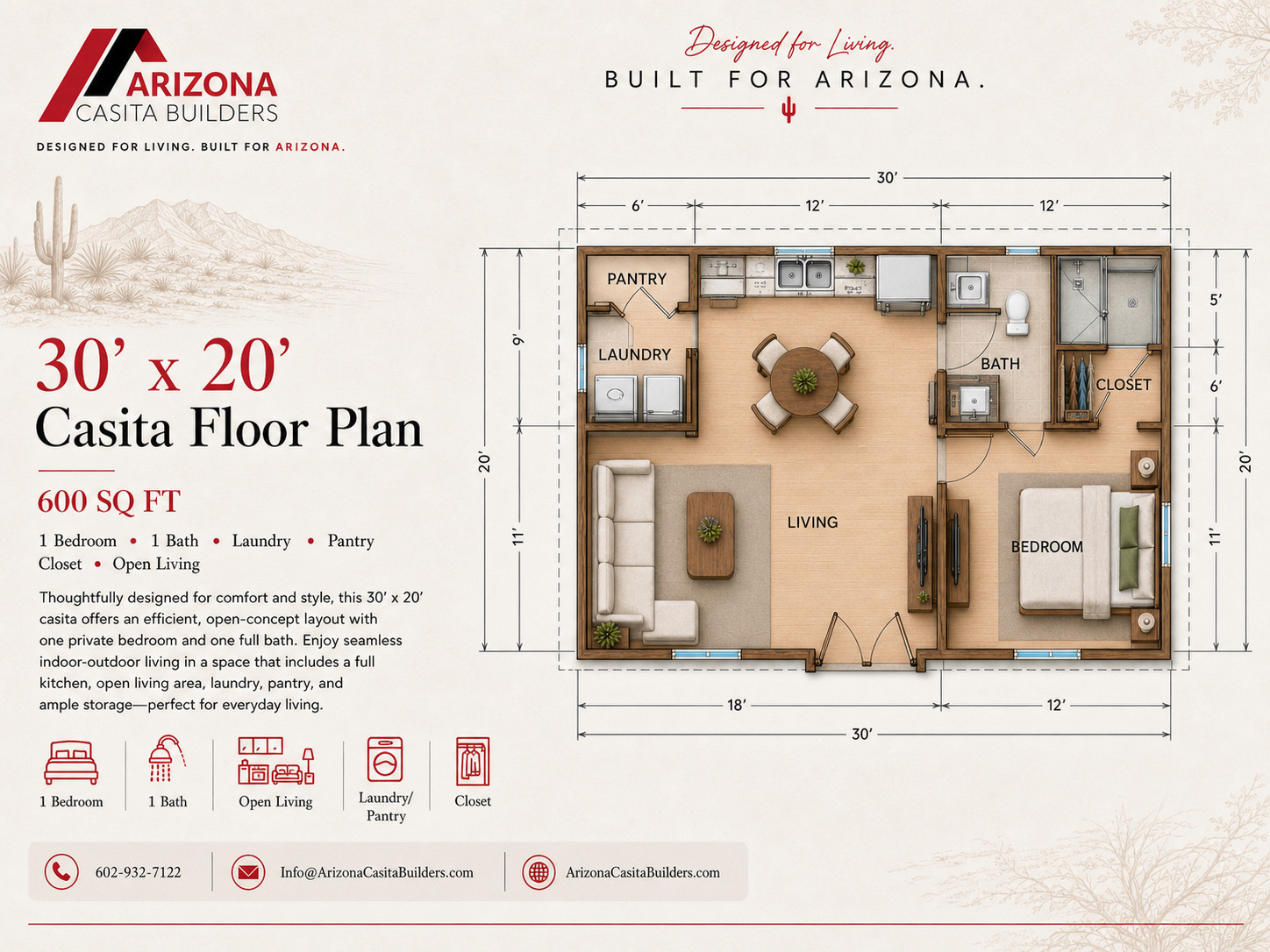

Floor Plan
Clean Layout Reference
The authoritative plan shows a 30-by-20-foot footprint with one bedroom, one bath, laundry, pantry, closet, and open living areas.

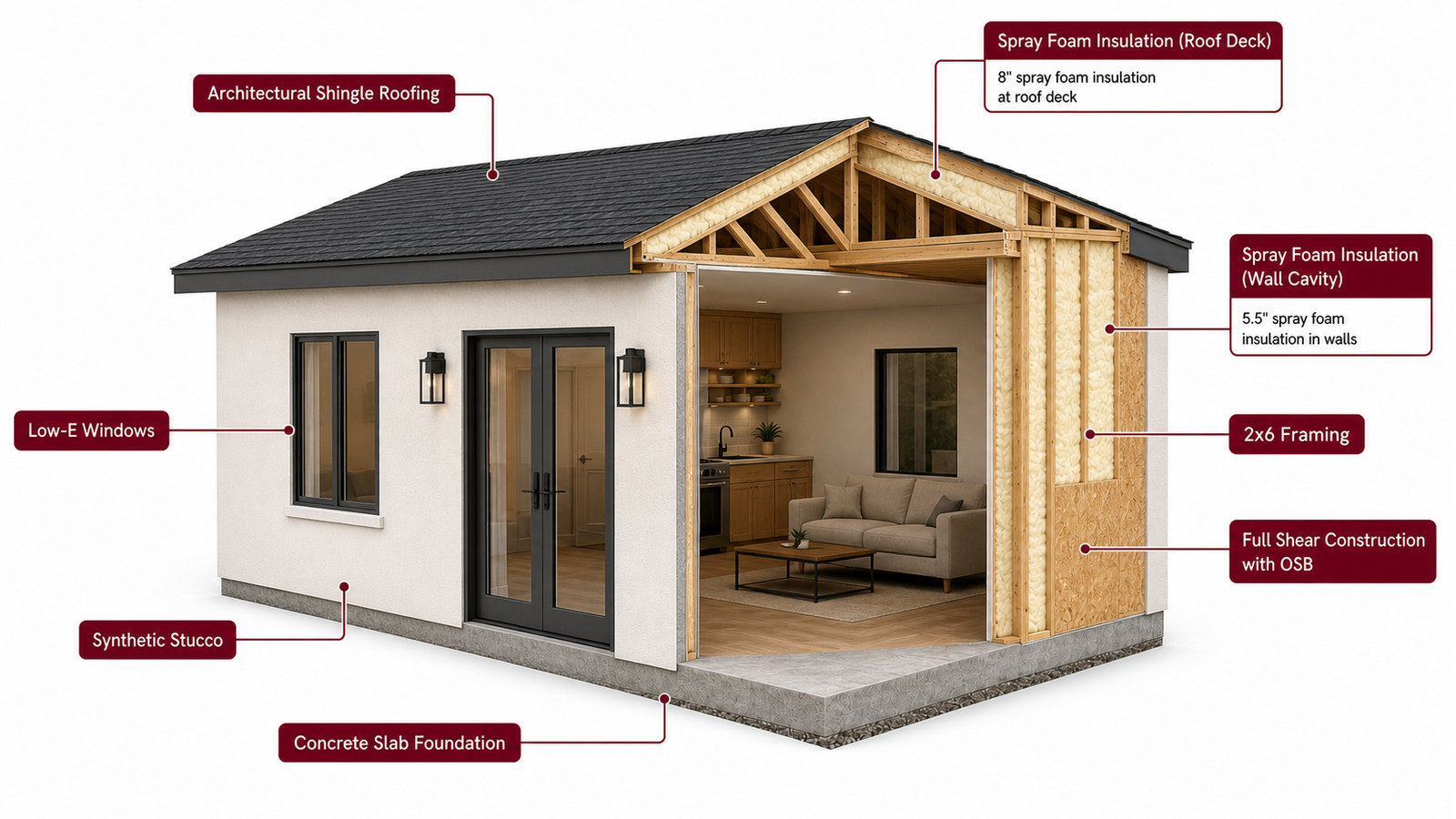

Build Quality
Designed For Arizona
Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
