Plan Overview
Linear Living With A Full-Depth Covered Patio
The enclosed casita measures 34 by 15 feet and totals 510 square feet.
A 12-by-15-foot covered patio adds 180 square feet, producing a 46-by-15-foot overall extent.
Shaded Extension
The covered patio matches the casita's 15-foot depth and projects 12 feet.
One-Bedroom Plan
The source documents one bedroom, one bathroom, and dedicated closet storage.
Interior & Exterior Renderings
510 Sq Ft 34' x 15' Casita With Covered Patio Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.
Floor Plan

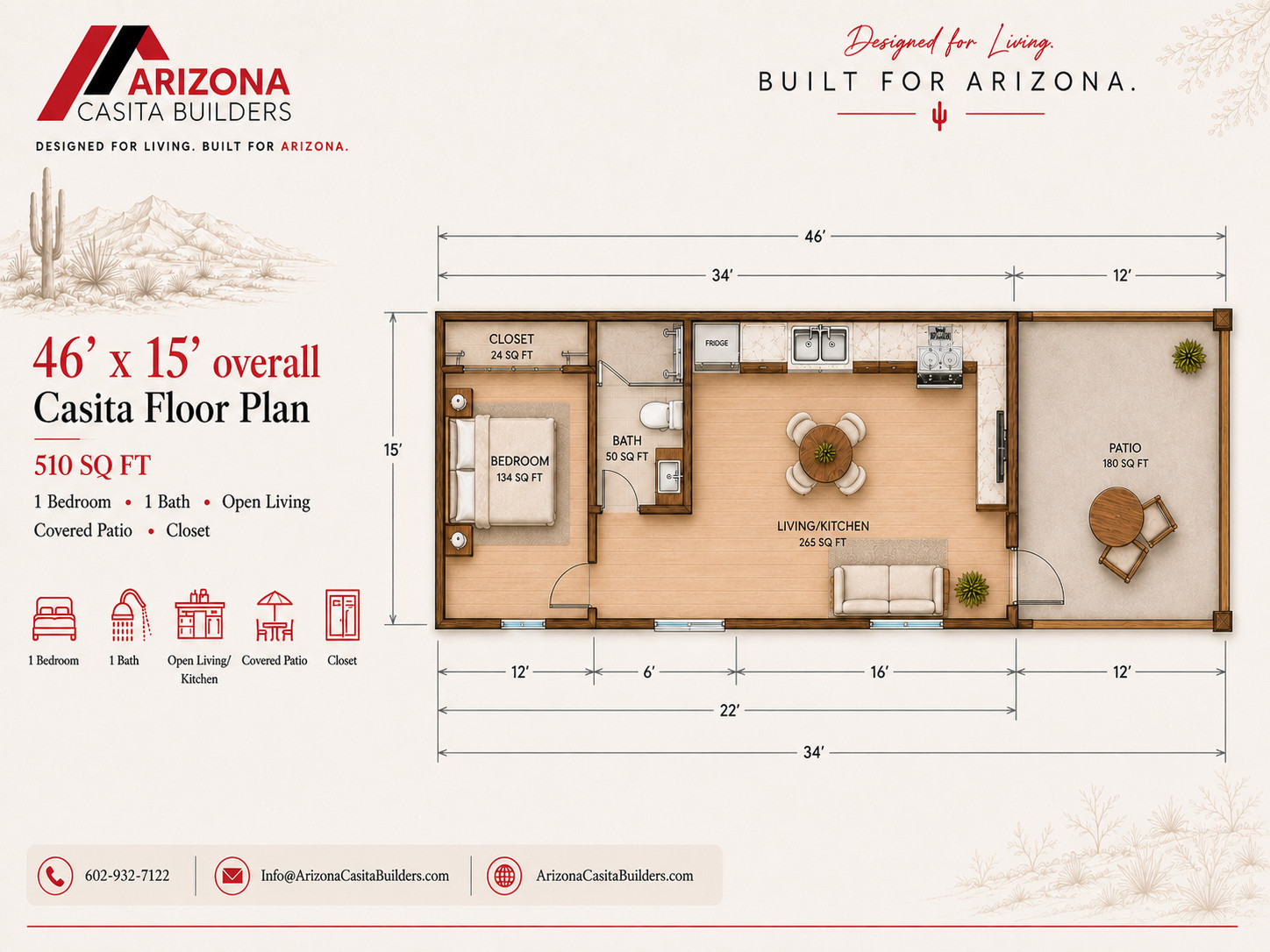

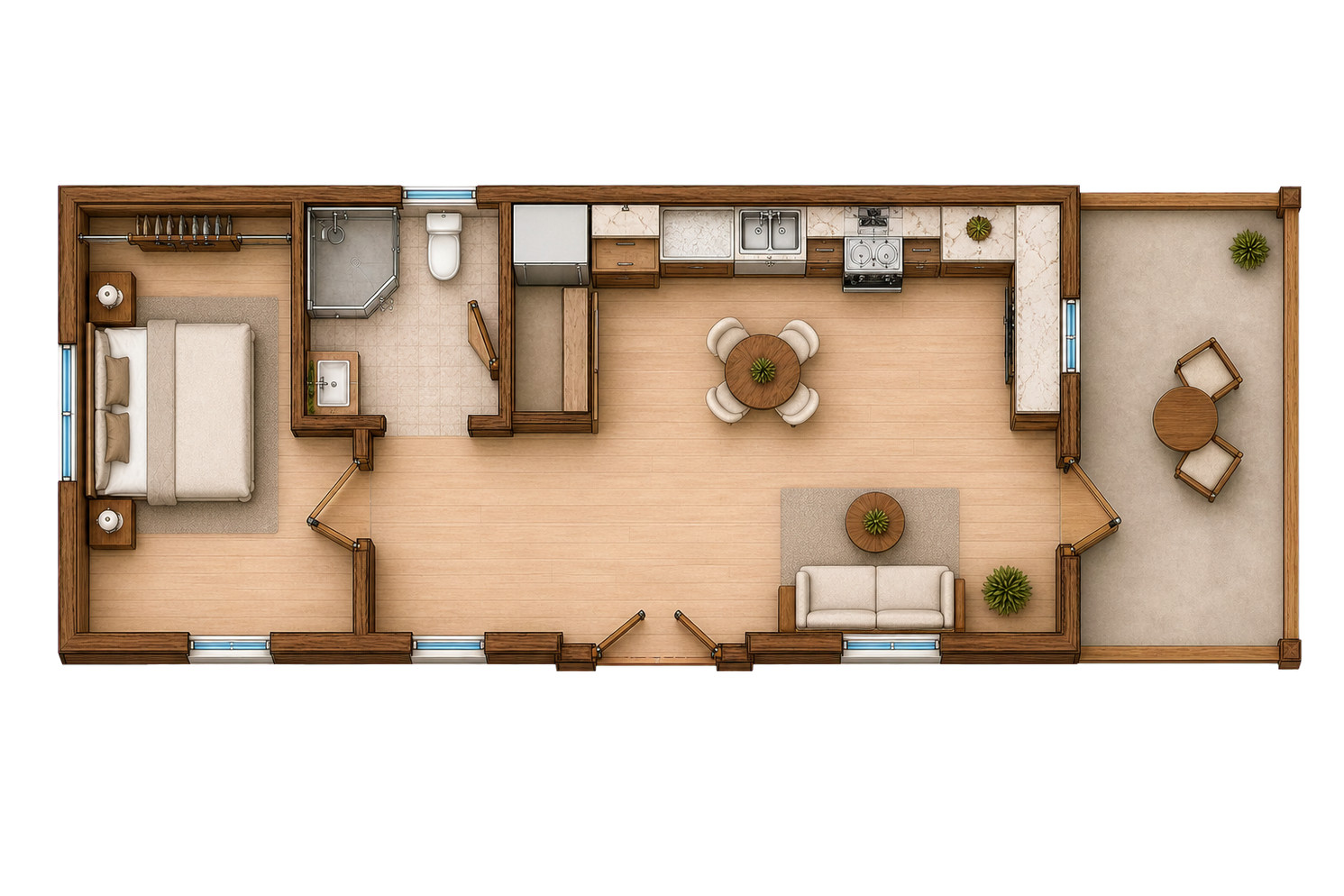

Clean Layout Reference
The source plan shows a 34-by-15-foot casita beside a 12-by-15-foot covered patio, for a 46-by-15-foot overall extent.
Build Quality
Designed For Arizona

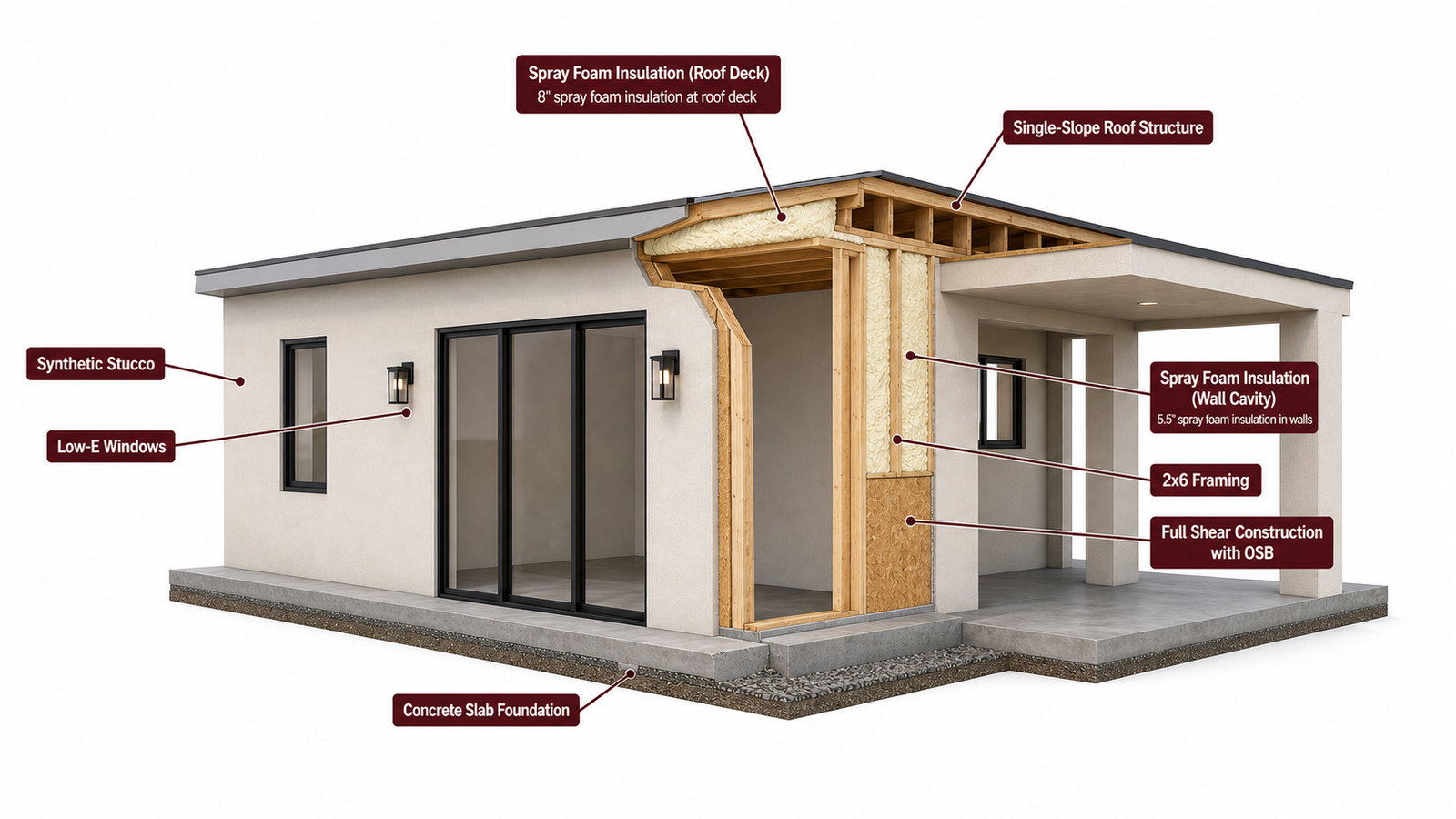

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
