Plan Overview
Two-Level Living Above A Detached Garage
The ground and second floors each measure 34 feet 6 inches by 20 feet.
The program documents a 690-square-foot upper casita, a 400-square-foot garage, and a 52-square-foot balcony, for 1,090 square feet of total build area.
Upper-Level Home
The living and sleeping program occupies the second level above the garage.
Balcony Connection
A 52-square-foot balcony extends the upper casita outdoors.
Interior & Exterior Renderings
690 Sq Ft 34'6" x 20' Casita Over A Detached Garage Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.
Floor Plan
Clean Layout Reference

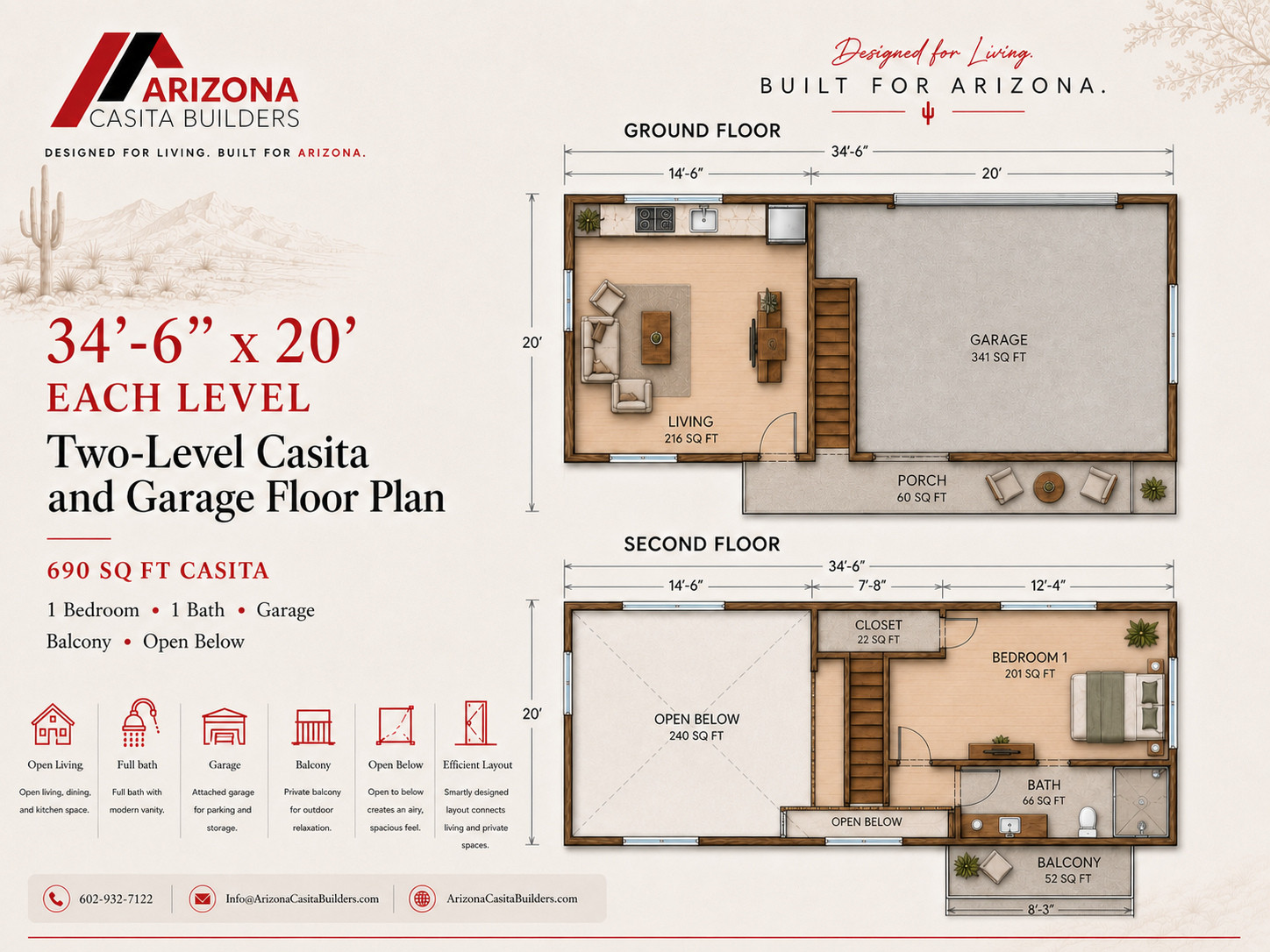

The source documents separate ground- and second-floor plans, each 34 feet 6 inches by 20 feet, with garage below and casita living above.
Build Quality
Designed For Arizona

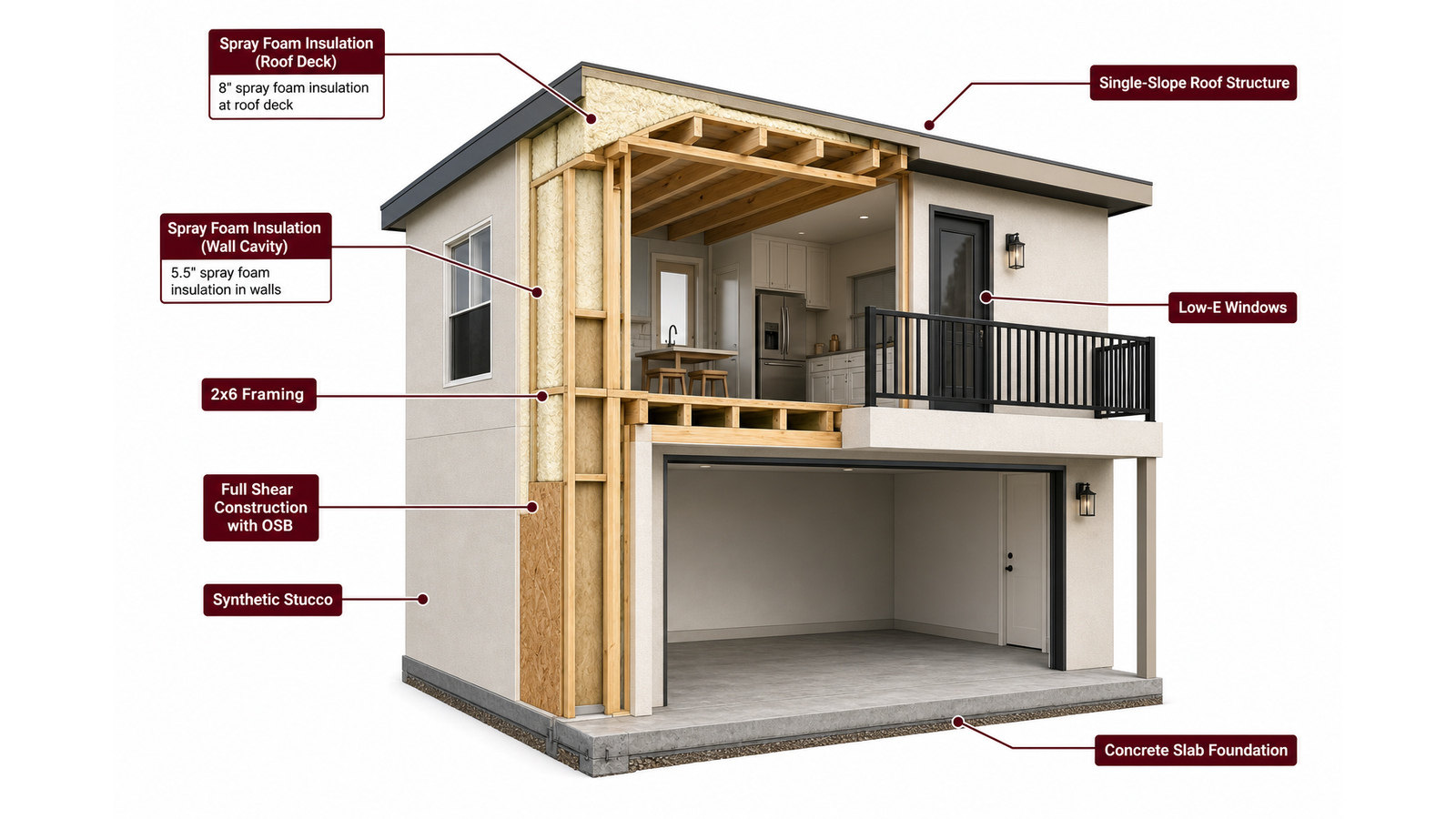

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
