Plan Overview
Three Bedrooms In A Balanced Footprint
The plan reaches 34 feet across at its widest point and 37 feet 6 inches deep.
A 500-square-foot living area anchors three bedrooms, two baths, laundry, storage, and a 94-square-foot patio.
1,200 Sq FtPlan Area
34' x 37'6"Overall Extent
3Bedrooms
2Bathrooms
Primary Suite
The primary bedroom and bath are grouped with dedicated closet space.
Open Living
The living zone is labeled 500 square feet.
Interior & Exterior Renderings
1,200 Sq Ft 34' x 37'6" Three-Bedroom Casita Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

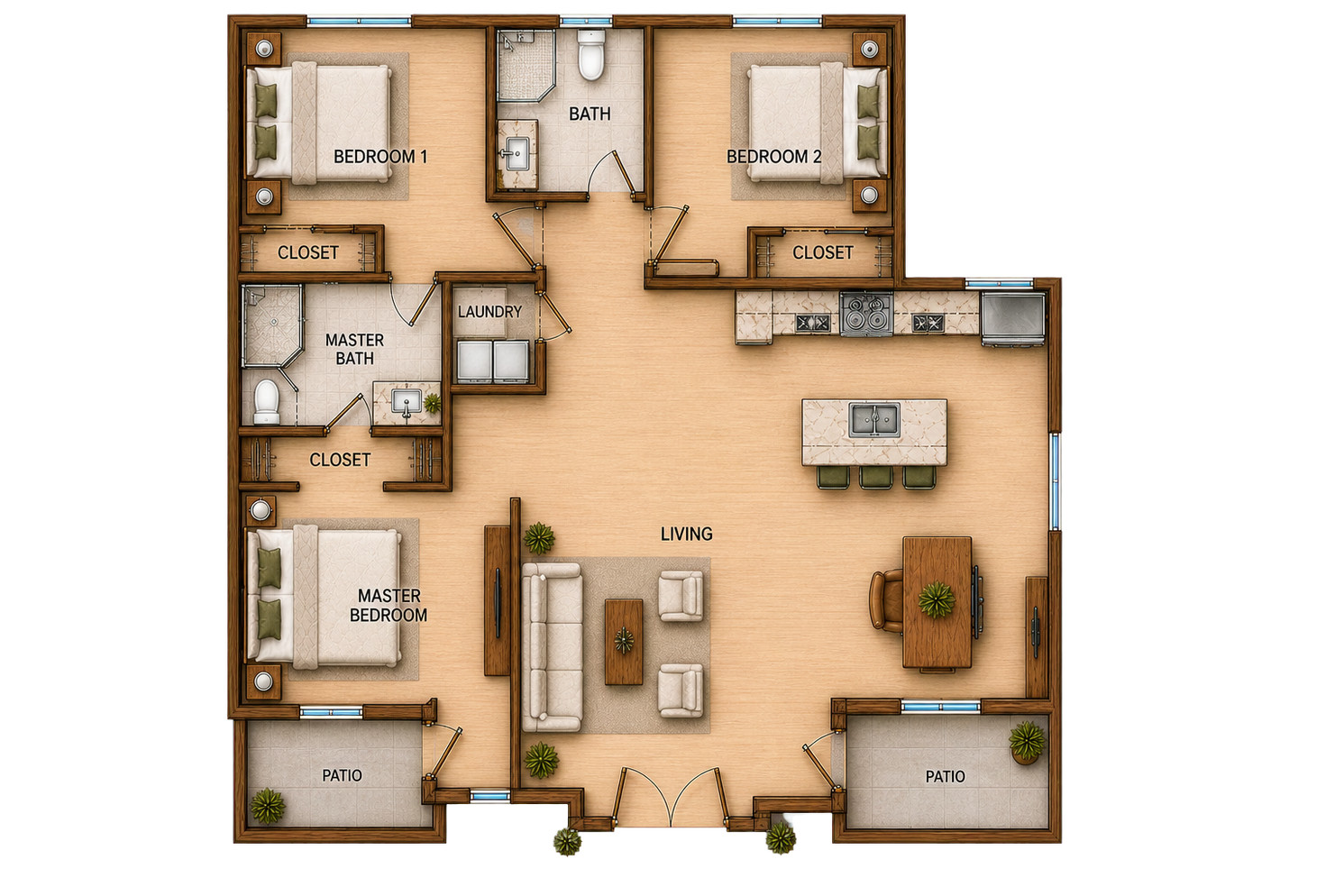

Floor Plan
Clean Layout Reference

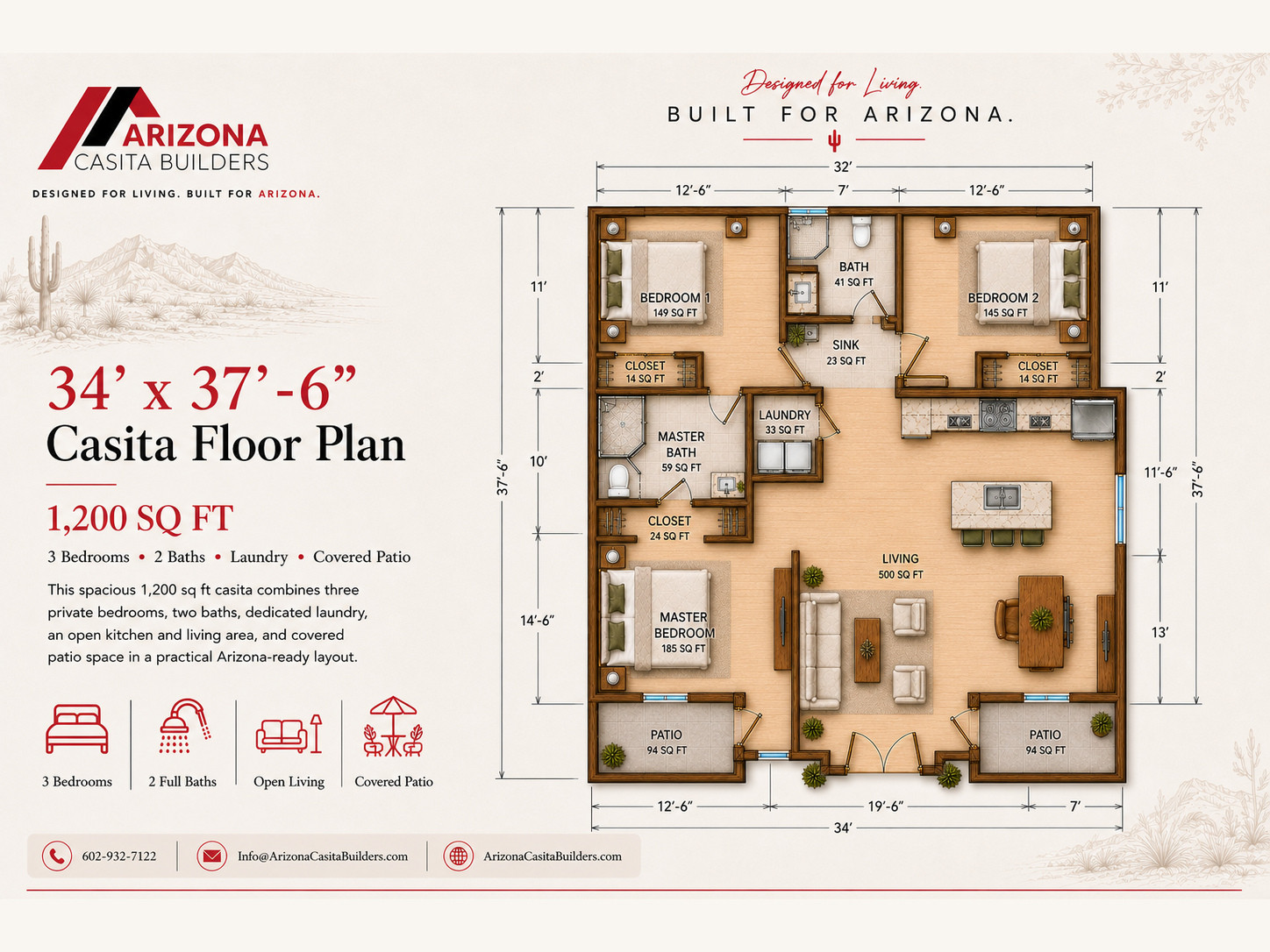

The source shows a 32-foot top width, a 34-foot lower width including a 7-foot projection, and a 37-foot-6-inch depth.
Build Quality
Designed For Arizona

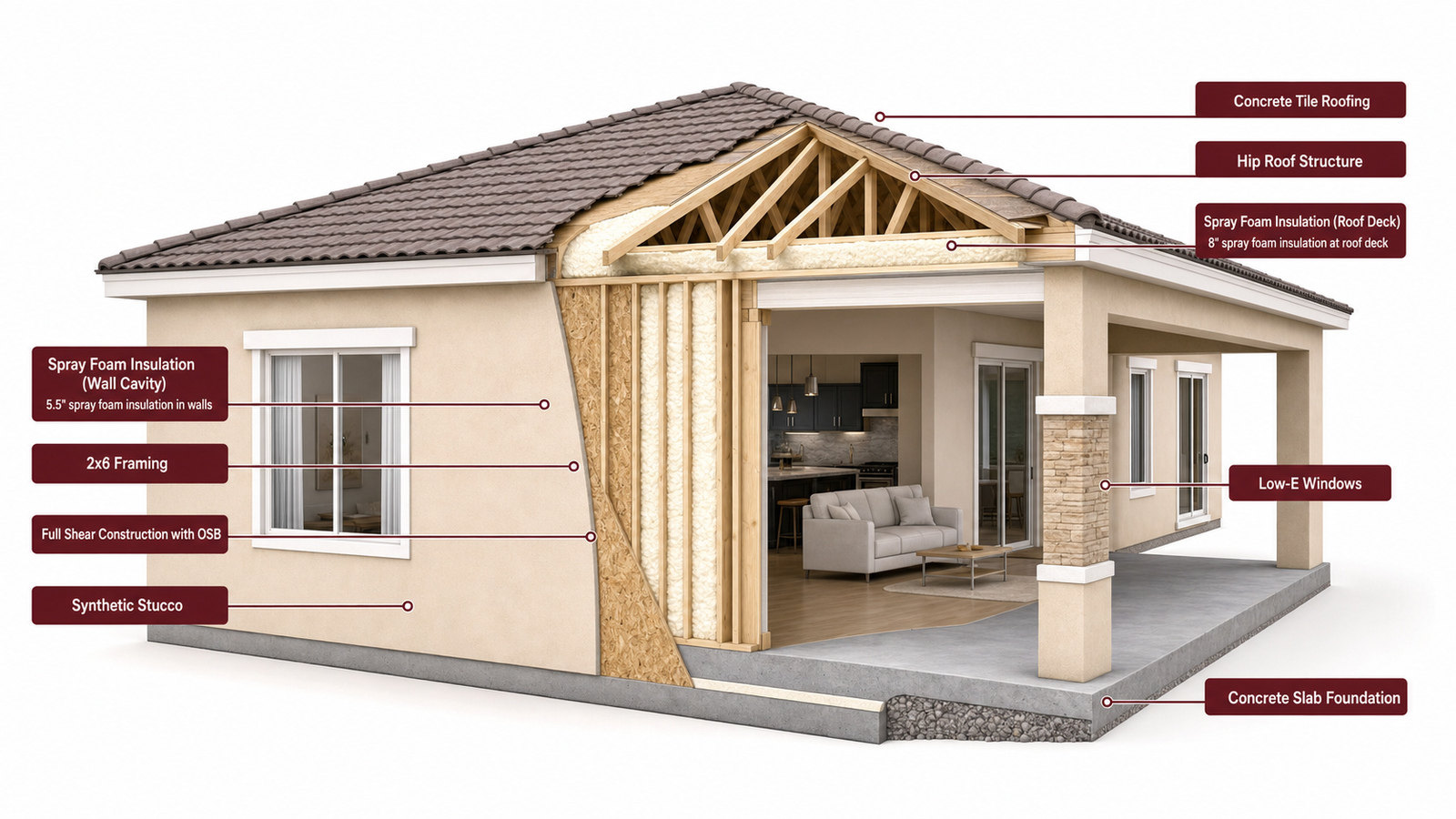

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
