Plan Overview
A One-Bedroom Casita Paired With A Gym
This plan combines an 850-square-foot one-bedroom casita with a separate gym zone, two baths, laundry, and open living.
The 34-by-59-foot overall footprint includes the patio, with the gym, service core, casita, and outdoor area organized in sequence.
Dedicated Gym
A large separate gym creates space for strength, cardio, and flexible training equipment.
Two Bathrooms
A full bath serves the living suite while a second bath supports the gym zone.
Covered Patio
The covered patio extends the open living area toward the yard.
Interior & Exterior Renderings
850 Sq Ft 34' x 59' Casita With Gym Floor Plan Renderings
Review selected exterior and interior renderings that illustrate the plan's massing, entries, room relationships, and finish possibilities.

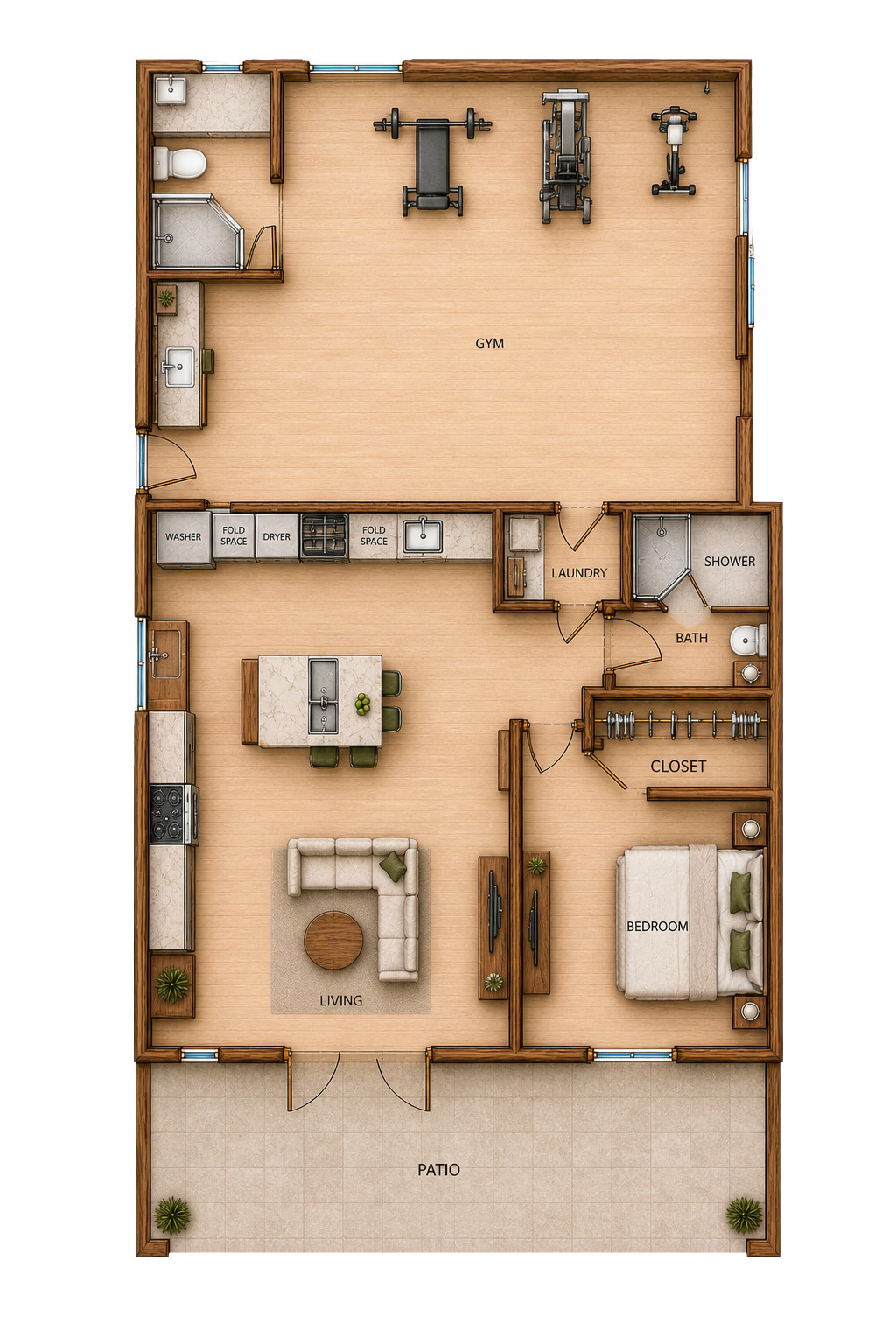

Floor Plan
Clean Layout Reference
The clean floor plan presents the 34' x 59' layout without marketing labels so room placement, circulation, doors, windows, and major fixtures are easier to review.

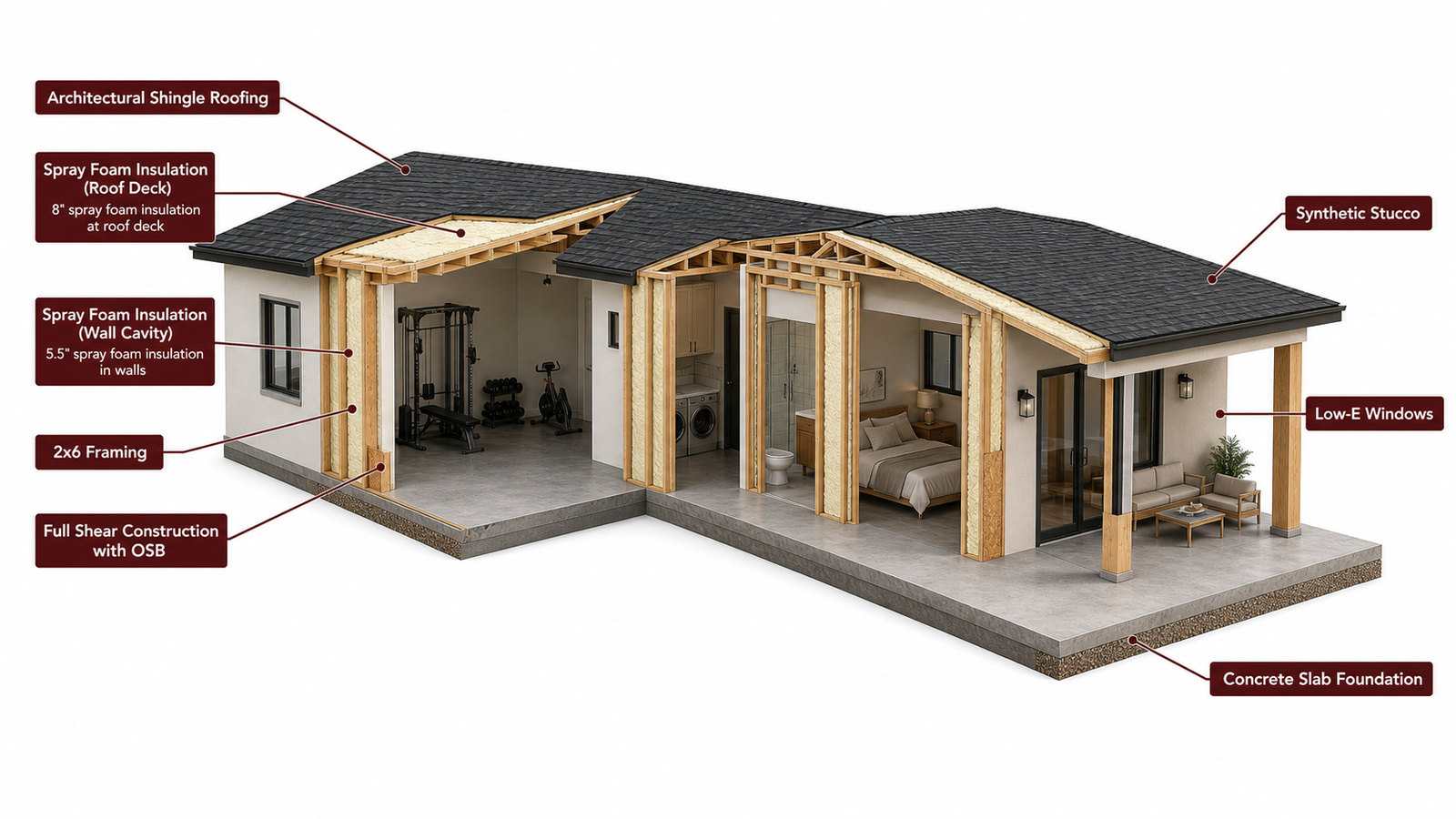

Build Quality
Designed For Arizona
The construction cutaway illustrates a representative Arizona wall, roof, window, and slab assembly. Final engineering, materials, and code details are confirmed for each project site.
