Plan Overview
A Flexible Two-Suite Casita
The 35-foot-wide plan extends 41 feet including a 10-foot-deep porch.
Two bedrooms, two baths, laundry, two walk-in closets, and a 200-square-foot porch support comfortable long-term living.
1,085 Sq FtPlan Area
35' x 41'Overall Footprint
2Bedrooms
2Bathrooms
Outdoor Living
The porch is labeled 200 square feet and measures 20 by 10 feet.
Everyday Utility
A dedicated 27-square-foot laundry room is included.

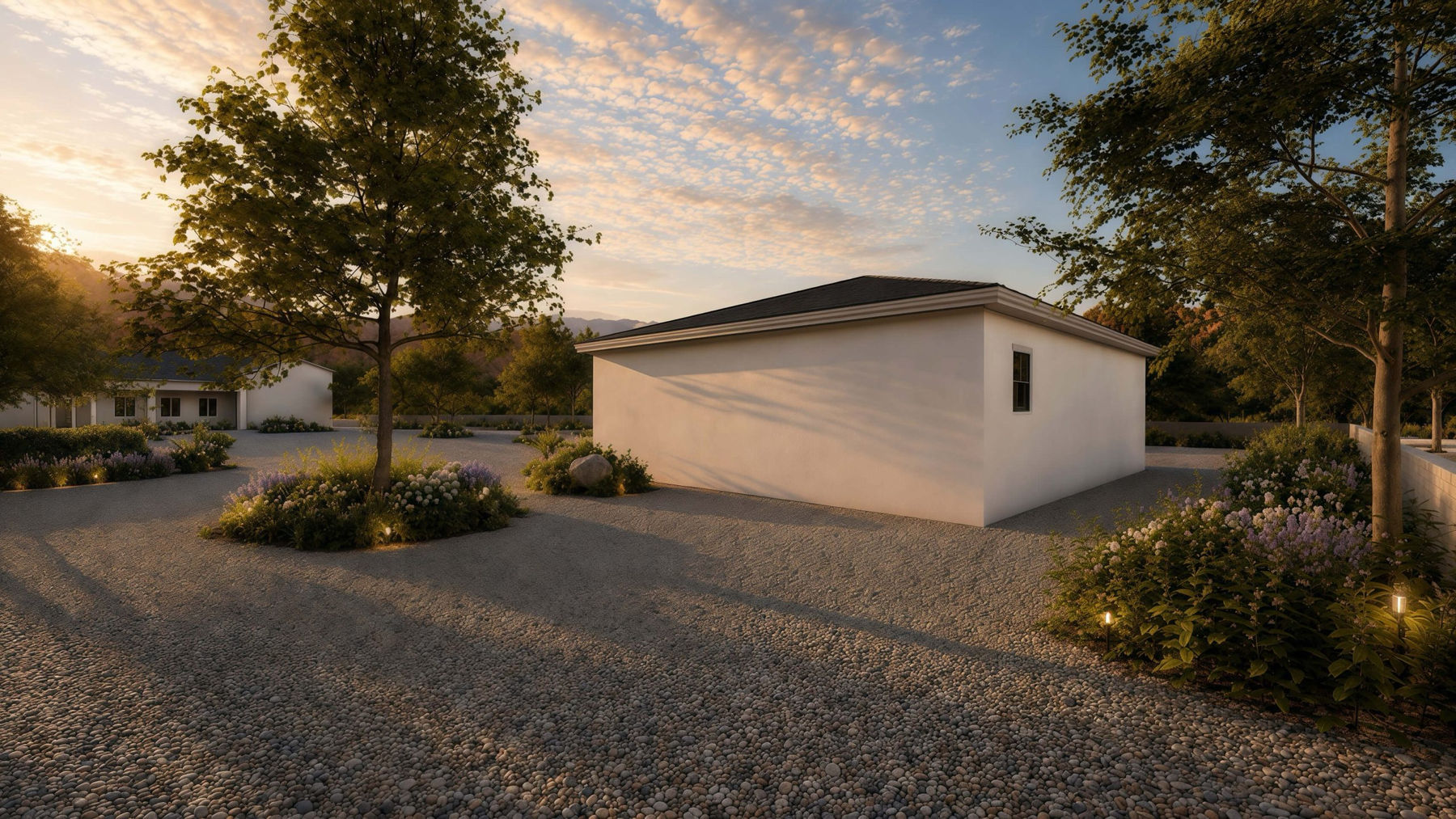

Interior & Exterior Renderings
1,085 Sq Ft 35' x 41' Two-Bedroom Casita Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.

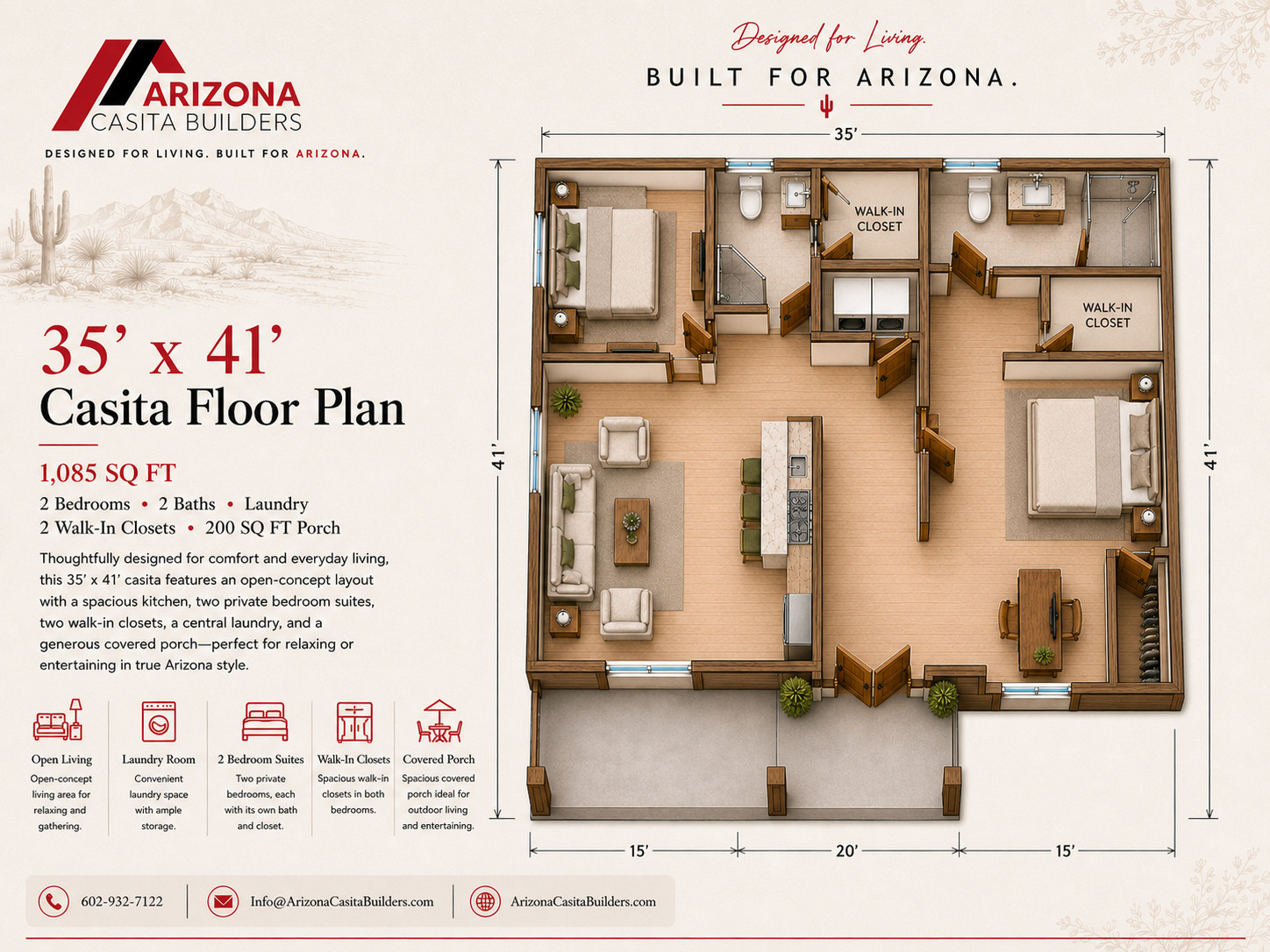

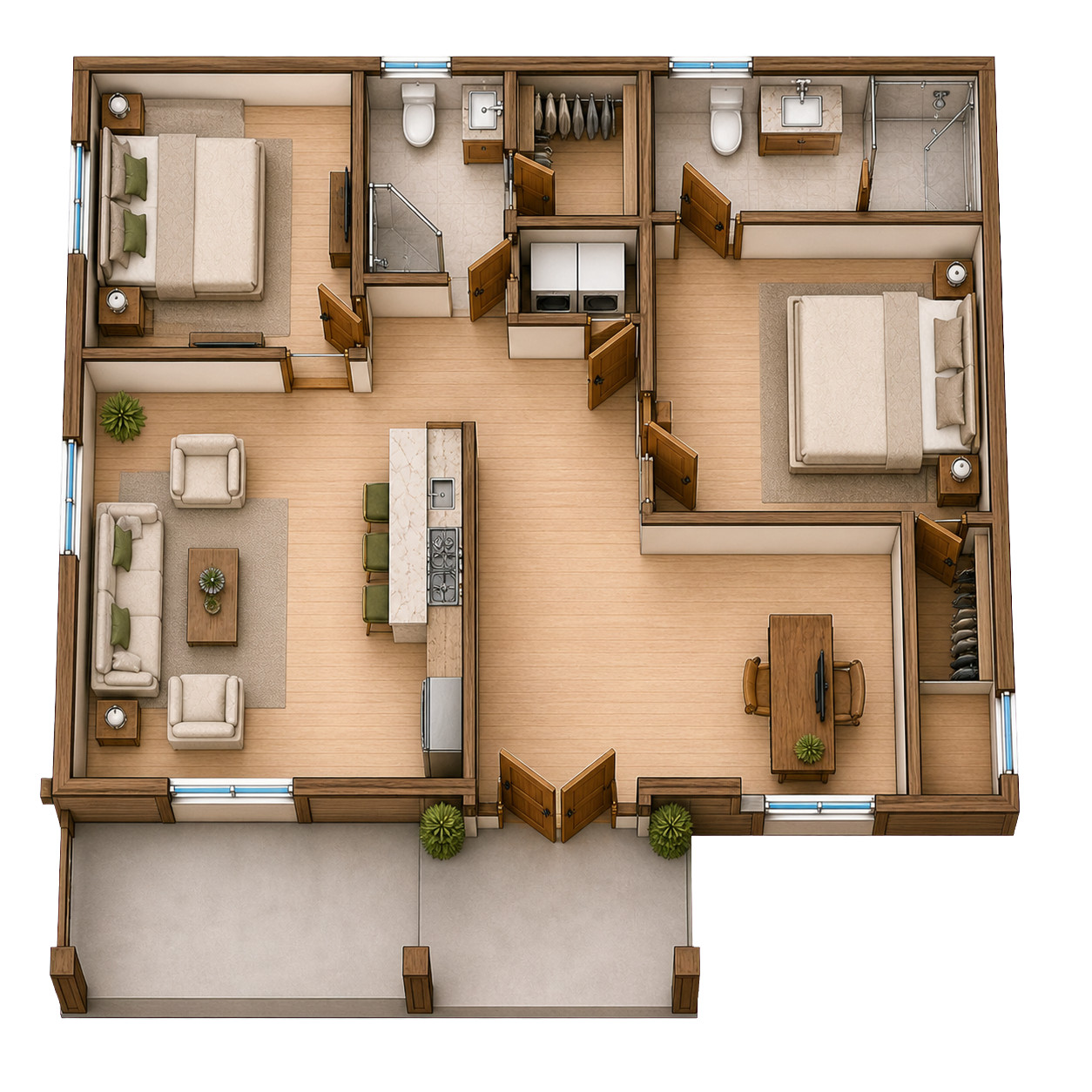

Floor Plan
Clean Layout Reference
The source layout shows a 35-foot width and 41-foot overall depth including the 10-foot porch.

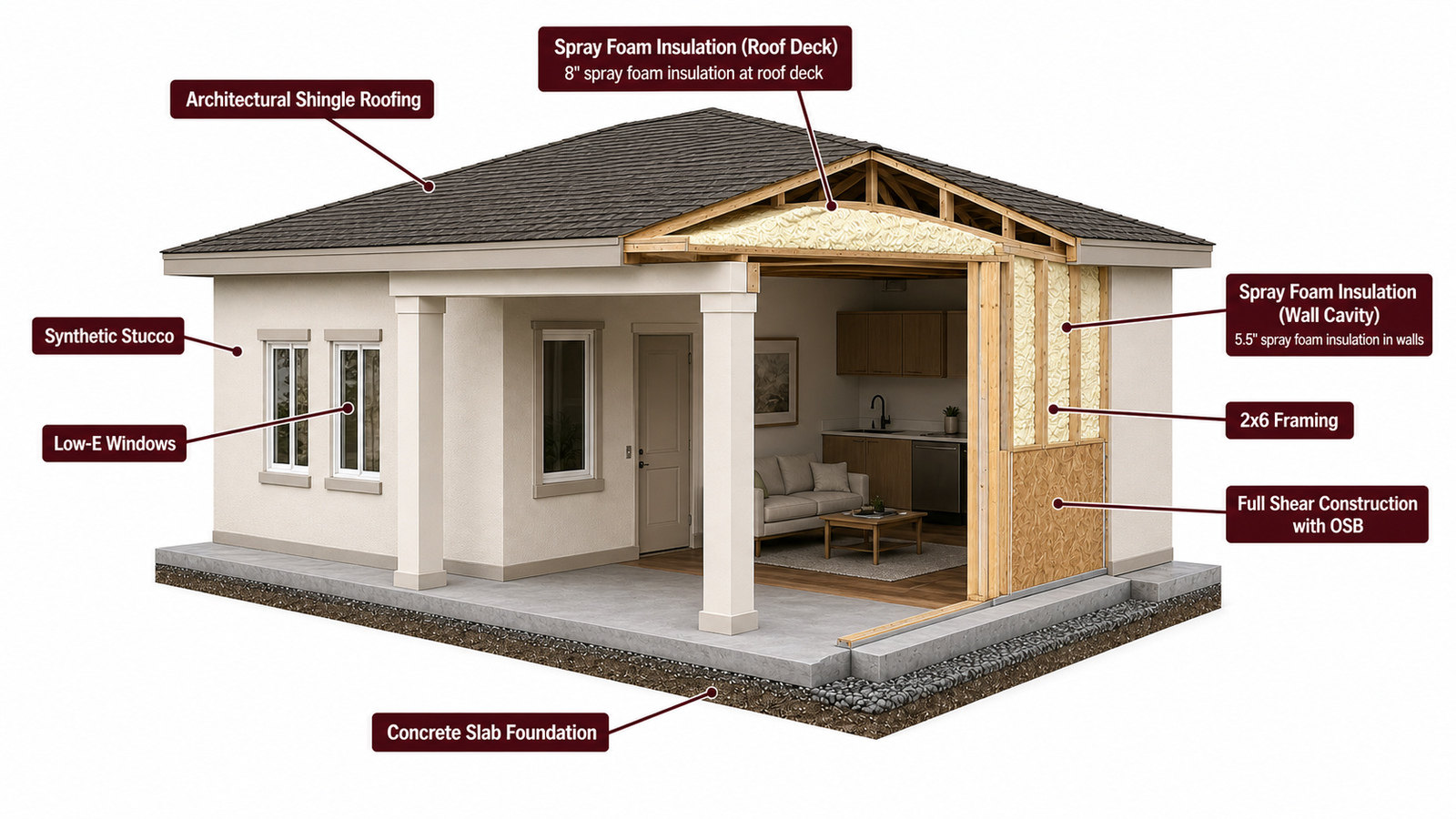

Build Quality
Designed For Arizona
Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
