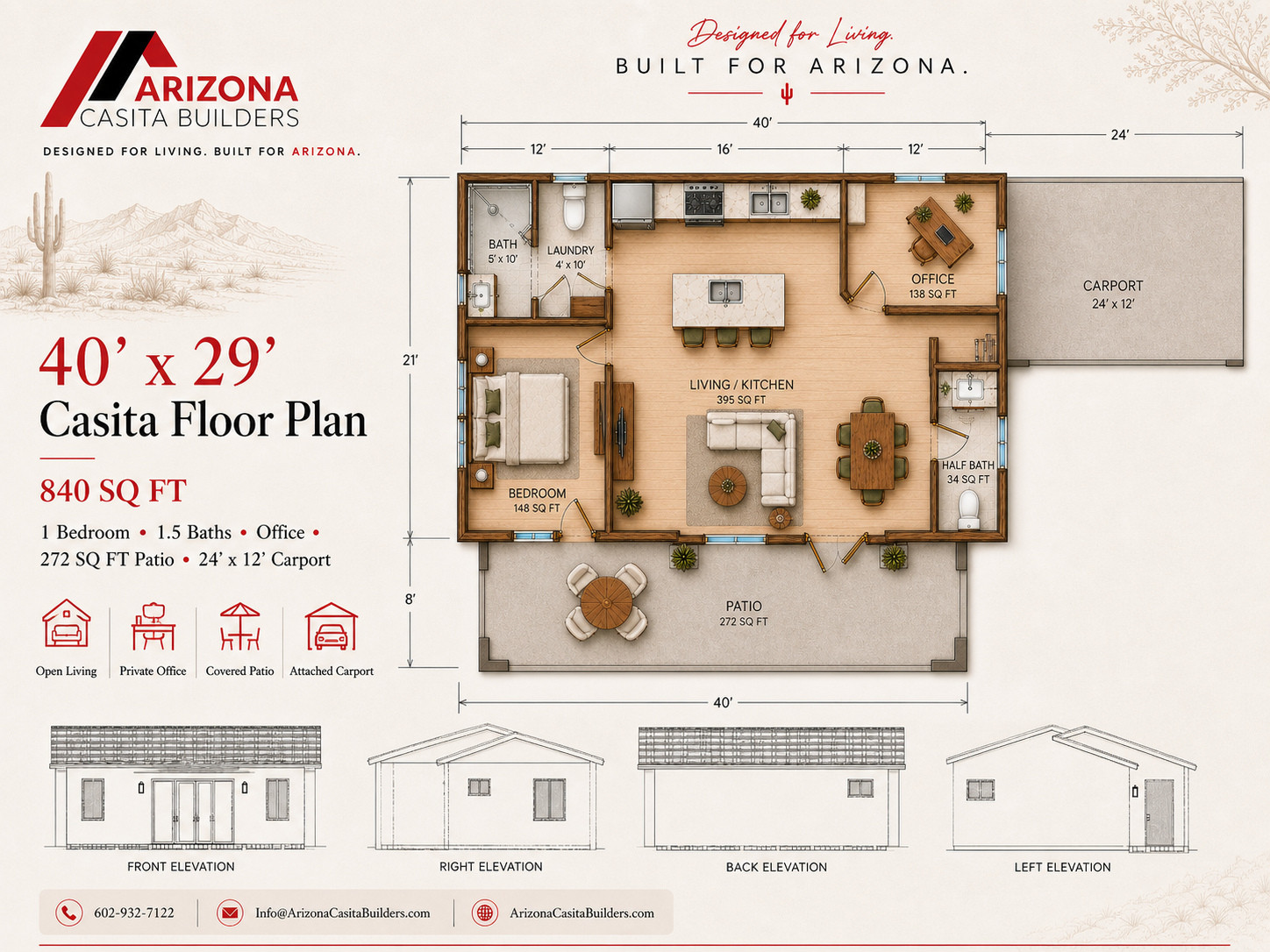

Plan Overview
Indoor-Outdoor Living With Office And Carport
This 840-square-foot plan combines a bedroom suite, office, one and a half baths, and laundry with an open living and kitchen zone.
The overall 40-by-29-foot footprint includes an eight-foot-deep patio and a 24-by-12-foot carport.
Dedicated Office
A separate office supports focused work away from the bedroom and living room.
Full-Width Patio
The eight-foot-deep patio extends the living area toward the yard.
Covered Carport
A 24-by-12-foot carport provides sheltered parking beside the casita.

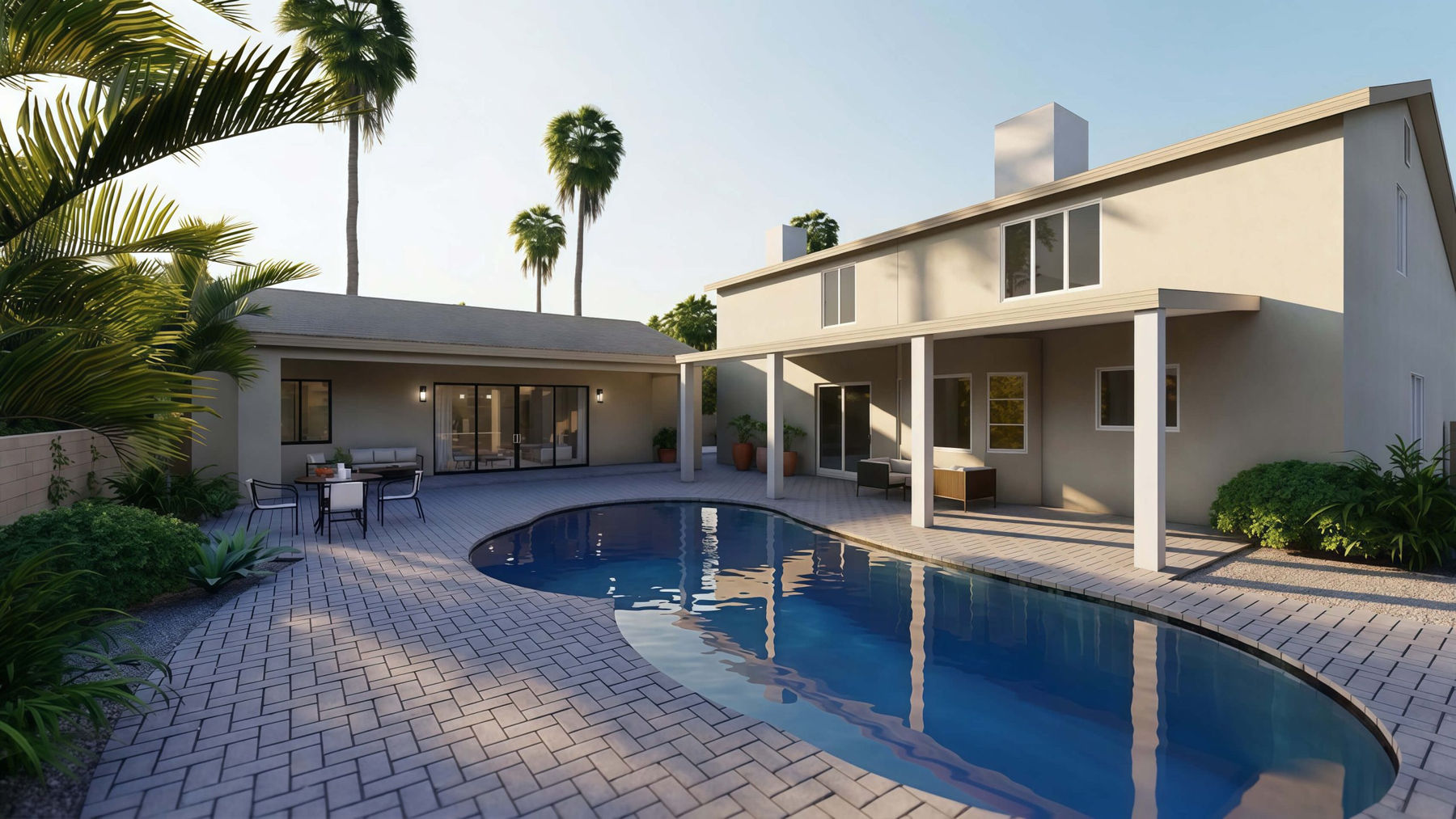

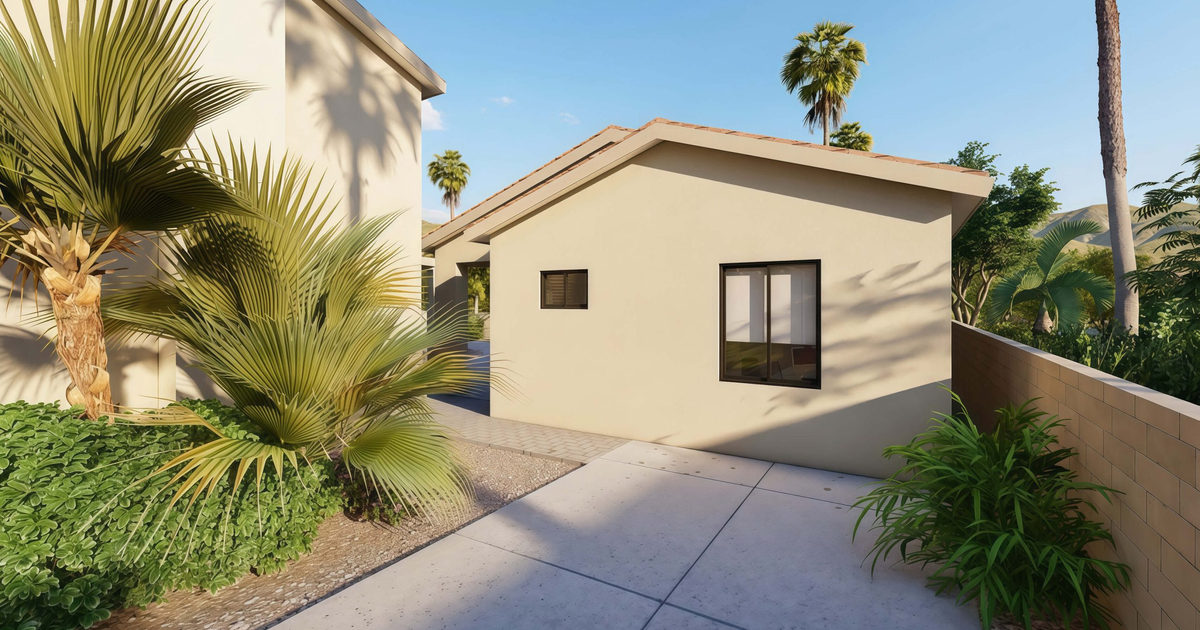

Interior & Exterior Renderings
840 Sq Ft 40' x 29' Casita With Carport Floor Plan Renderings
Review selected exterior and interior renderings that illustrate the plan's massing, entries, room relationships, and finish possibilities.

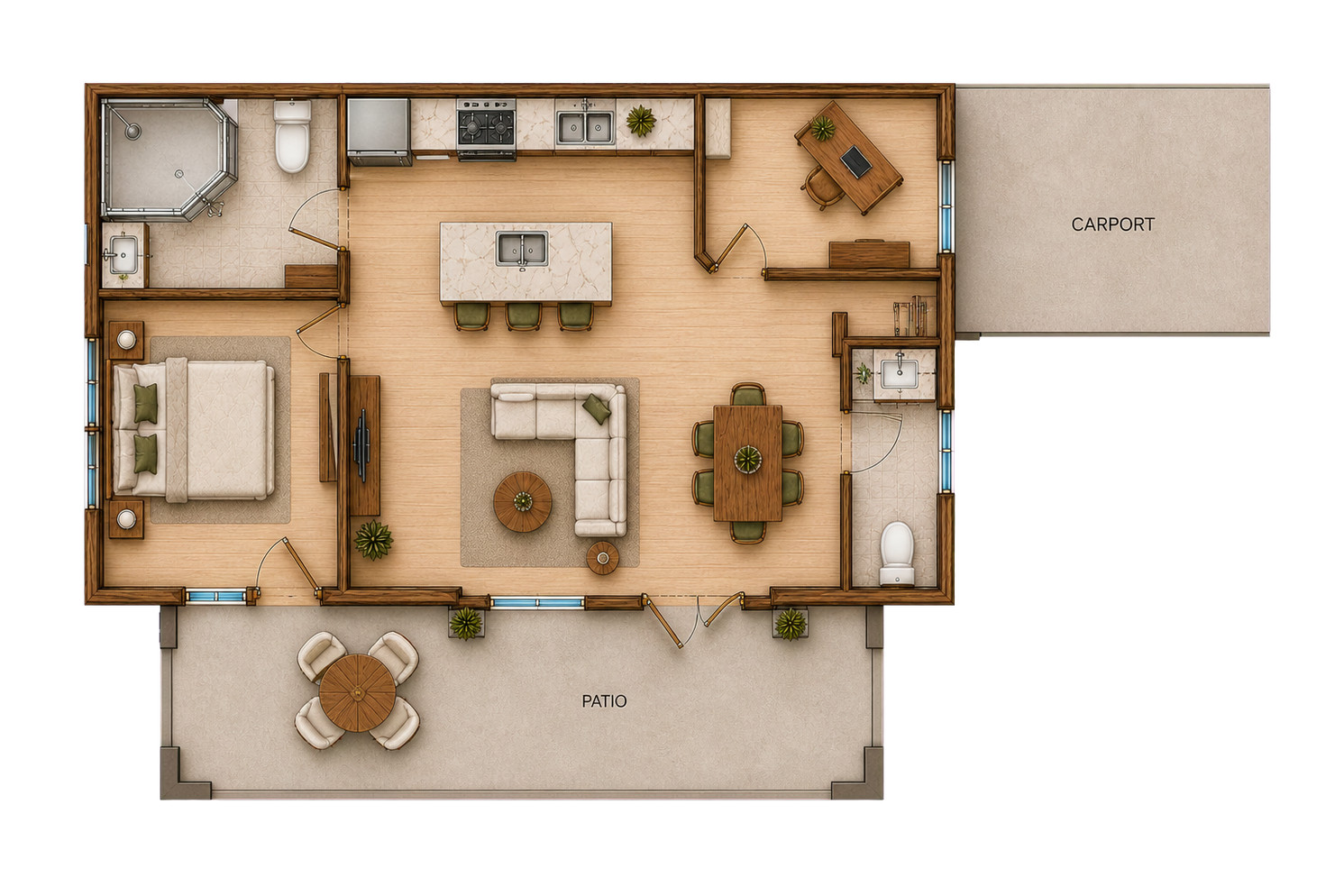

Floor Plan
Clean Layout Reference
The clean floor plan presents the 40' x 29' layout without marketing labels so room placement, circulation, doors, windows, and major fixtures are easier to review.
Build Quality
Designed For Arizona

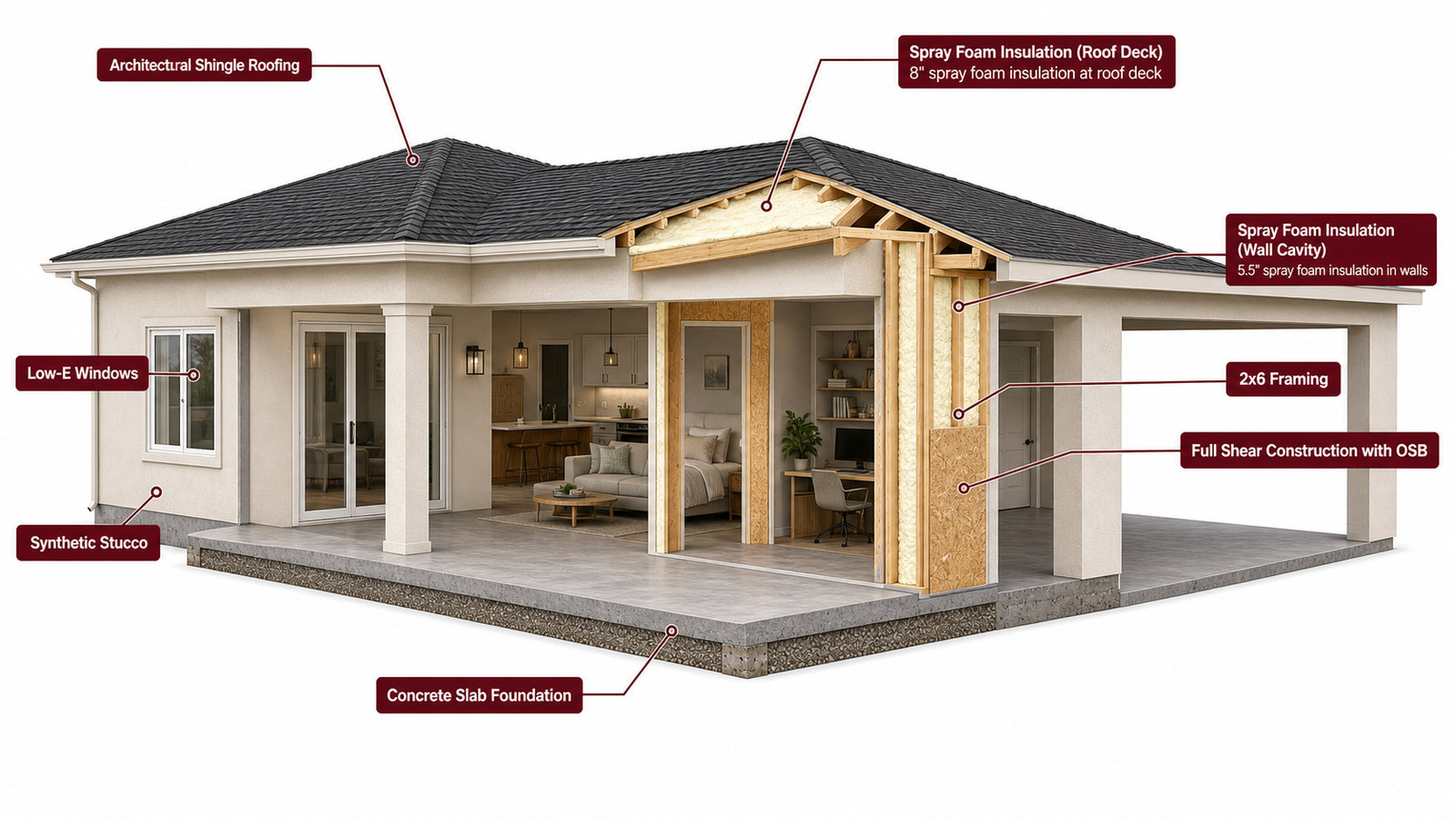

The construction cutaway illustrates a representative Arizona wall, roof, window, and slab assembly. Final engineering, materials, and code details are confirmed for each project site.
