Plan Overview
A Full-Size Three-Bedroom Casita
The source title documents 1,580 square feet, resolving older archive shorthand that differed from the drawing.
The plan is 40 feet wide and 43 feet deep including a 6-foot porch, with a 37-foot enclosed depth.
Large Great Room
Living, kitchen, and dining share a 727-square-foot open zone.
Covered Porch
The 6-foot-deep porch is labeled 240 square feet.
Interior & Exterior Renderings
1,580 Sq Ft 40' x 43' Three-Bedroom Casita Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.
Floor Plan
Clean Layout Reference

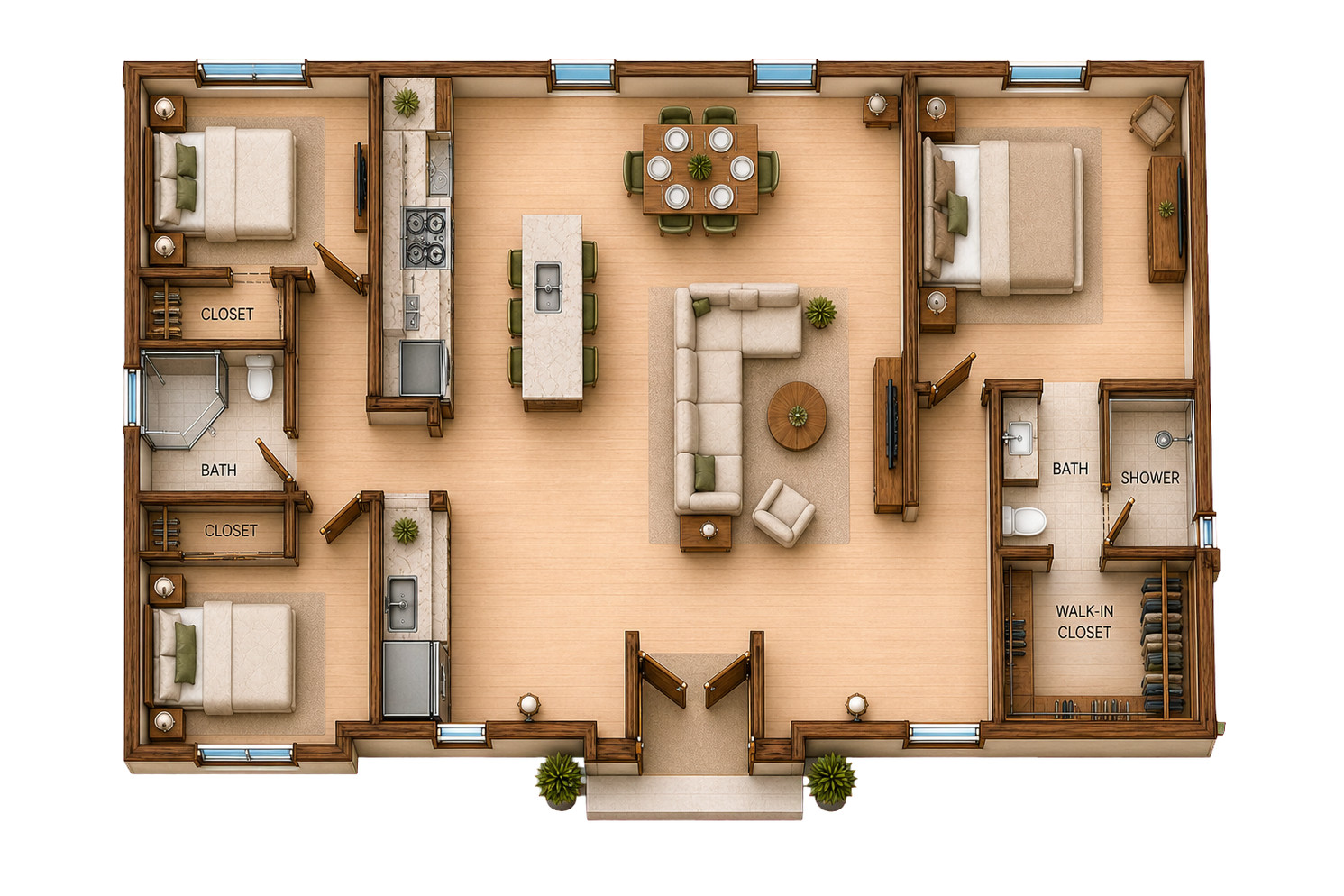

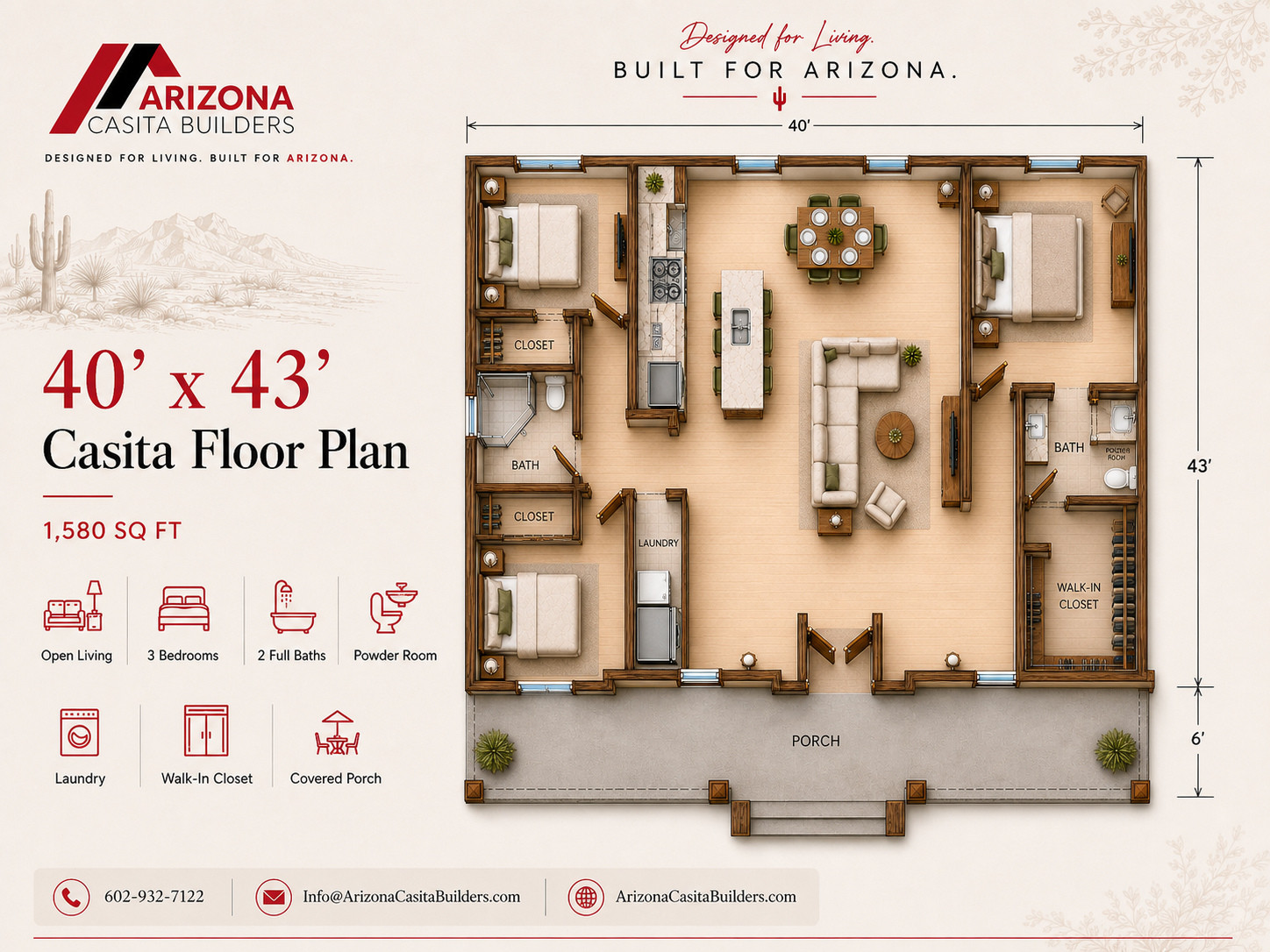

The authoritative source labels 1,580 square feet and shows a 40-foot width, 43-foot overall depth, 37-foot enclosed depth, and 6-foot porch.
Build Quality
Designed For Arizona

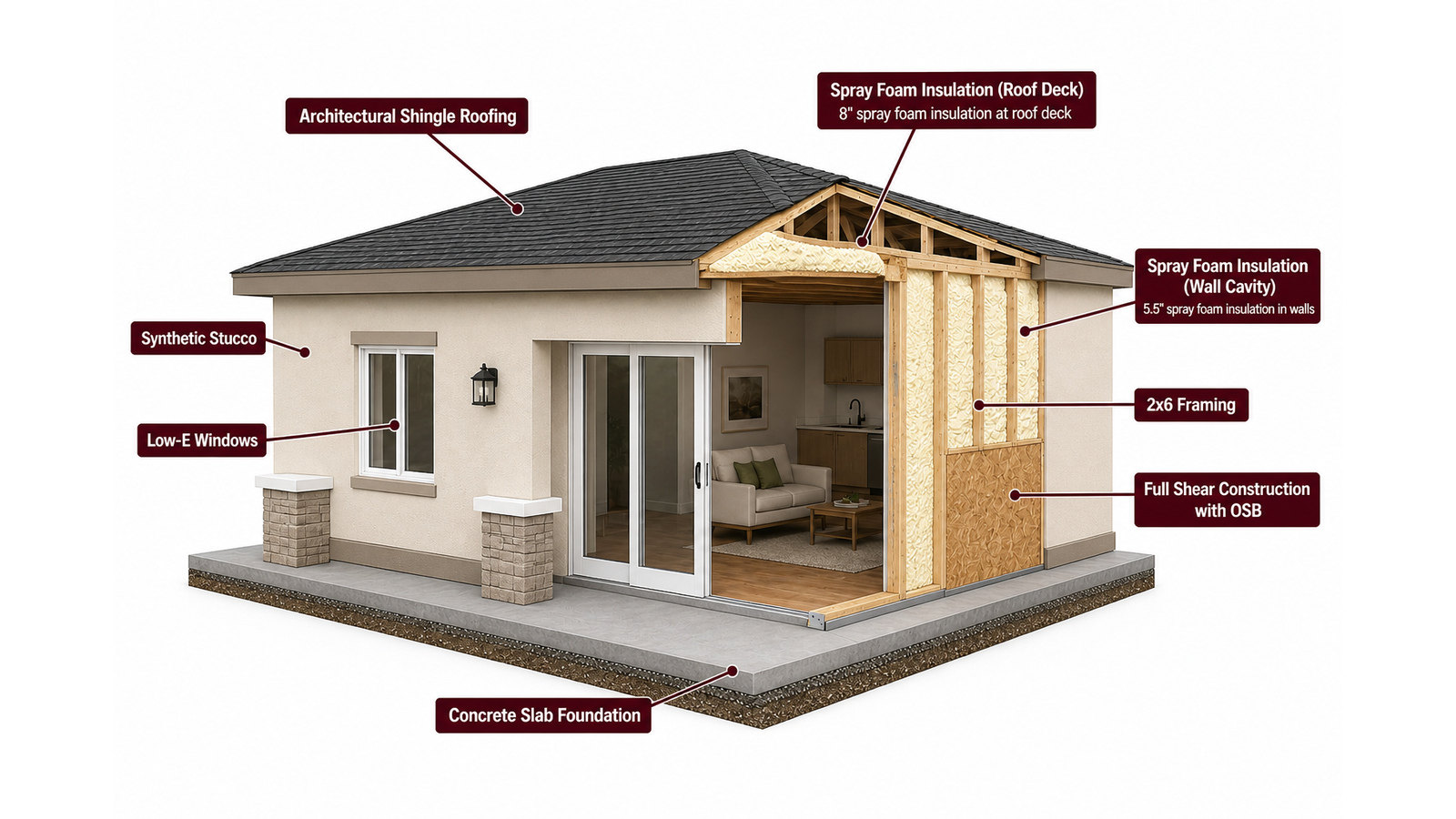

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
