Plan Overview
Compact Living Joined To A Large Garage Program
The proposal documents 689 square feet of casita area and a 1,355-square-foot attached garage.
A 31-square-foot covered porch brings the documented total build area to 2,075 square feet; the plan reaches 51 feet 10 inches in overall width.
Garage Capacity
The garage accounts for the largest share of the combined building program.
Source Geometry
The garage side reaches 46 feet deep and the garage top width is marked 38 feet 6 1/4 inches.
Interior & Exterior Renderings
689 Sq Ft 51'10" Wide Casita With Attached Garage Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.
Floor Plan
Clean Layout Reference

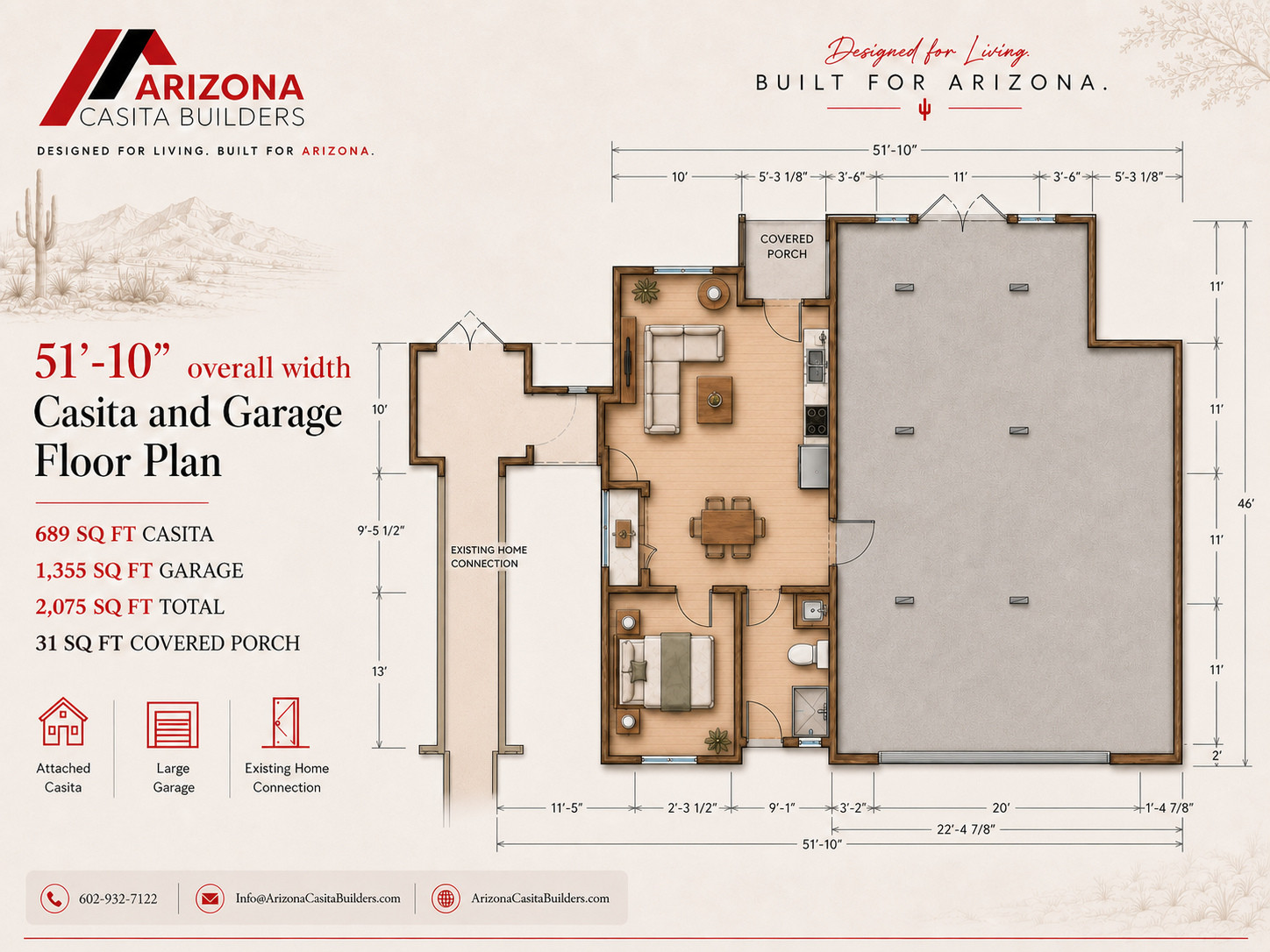

The source shows a combined casita-and-garage plan measuring 51 feet 10 inches overall, with a 46-foot garage-side depth and 31-square-foot porch.
Build Quality
Designed For Arizona

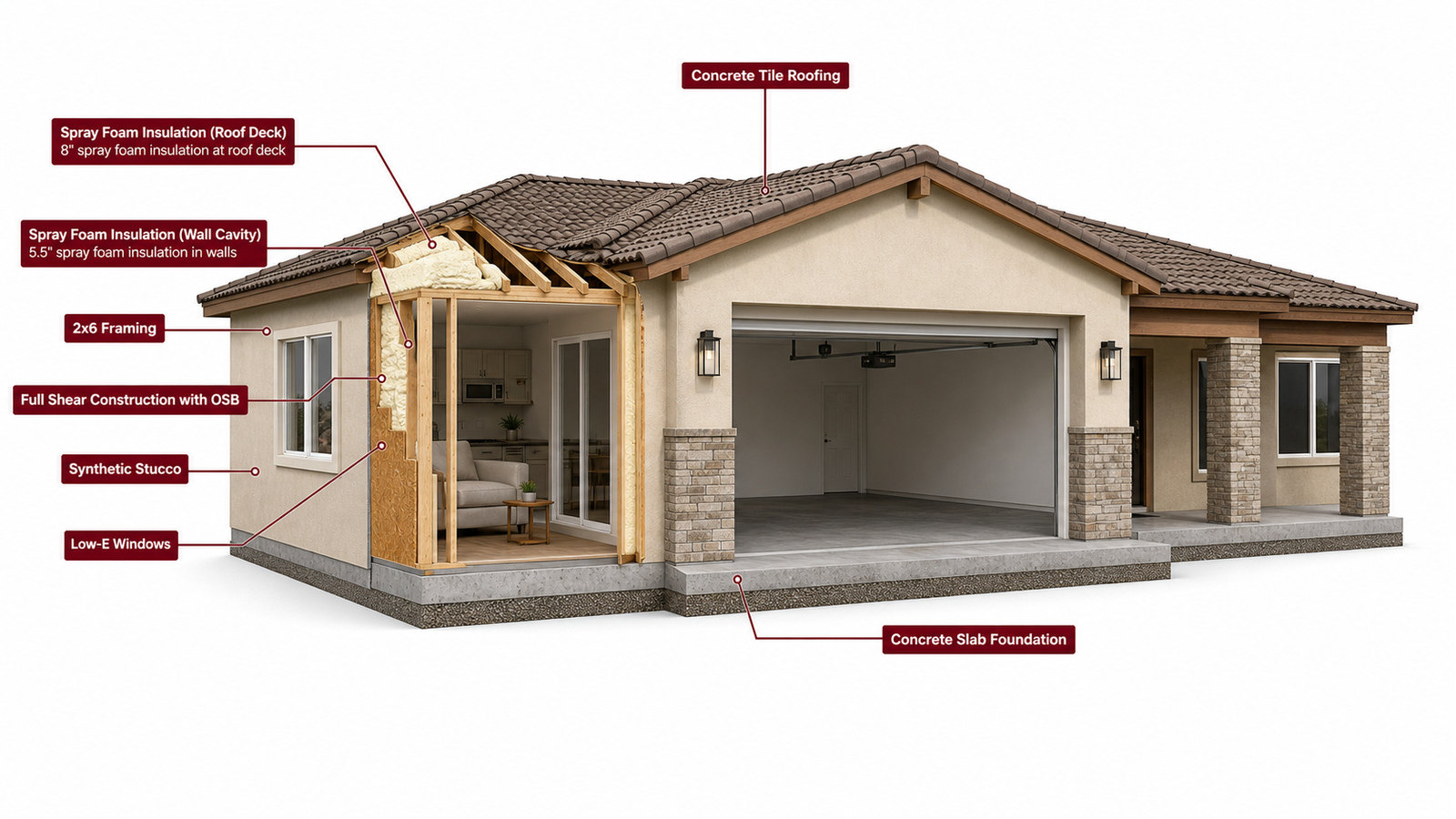

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
