Plan Overview
Casita Living With Work And Garage Space
The 70-by-34-foot composition places a 46-foot casita span beside a 24-foot-wide garage.
Two bedrooms, 2.5 baths, laundry, office, a 288-square-foot garage, and a 200-square-foot patio create a complete program.
Dedicated Office
A 50-square-foot office provides a quiet work zone.
Covered Patio
The 20-by-10-foot patio adds 200 square feet outdoors.
Interior & Exterior Renderings
1,104 Sq Ft 70' x 34' Casita With Garage Floor Plan Renderings
Selected exterior and interior renderings show the building form, arrival, and distinct living spaces without repeating room angles.
Floor Plan
Clean Layout Reference

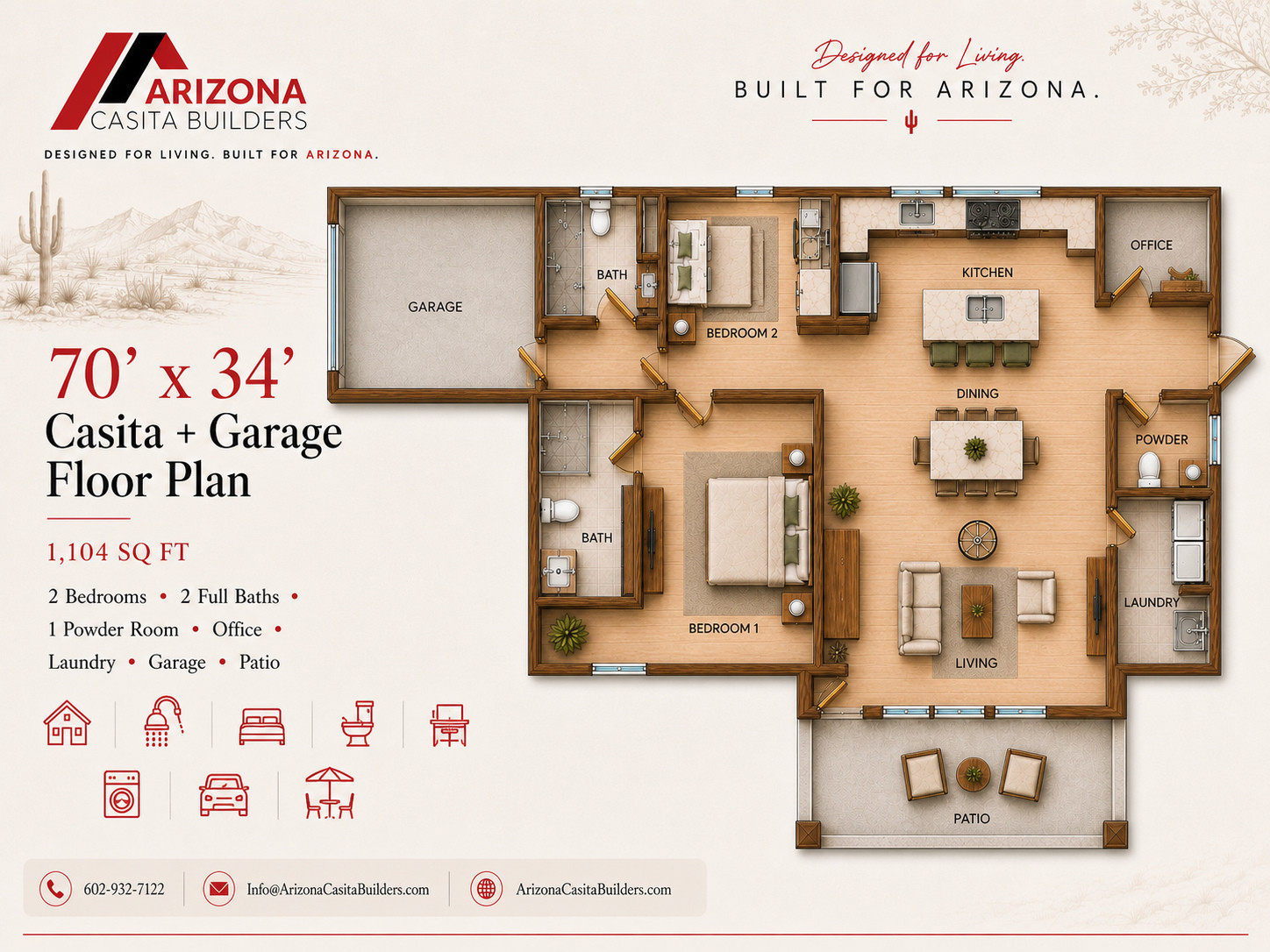

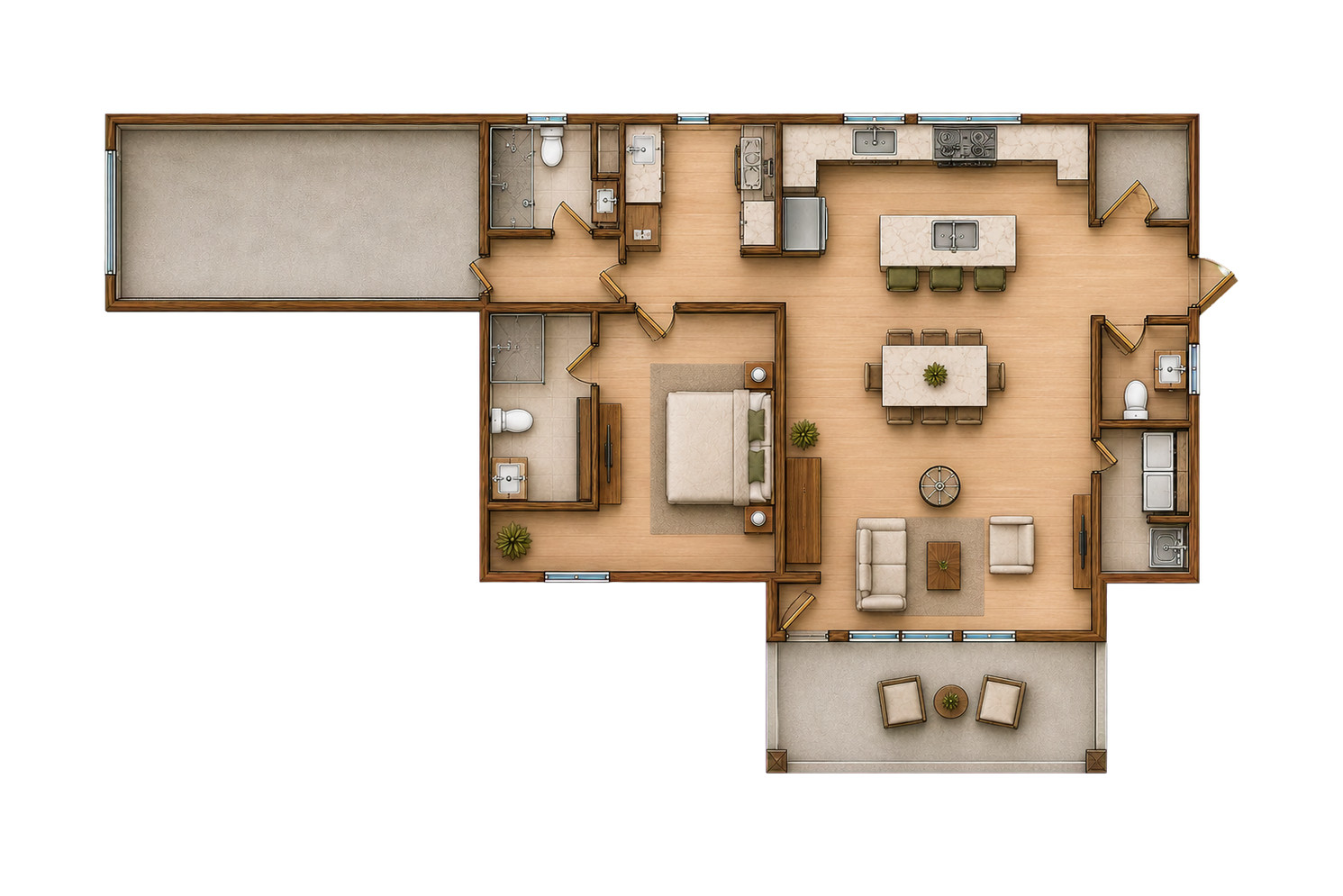

The source documents a 70-foot overall width, 34-foot depth, 46-foot casita span, 24-foot garage width, and 20-by-10-foot patio.
Build Quality
Designed For Arizona

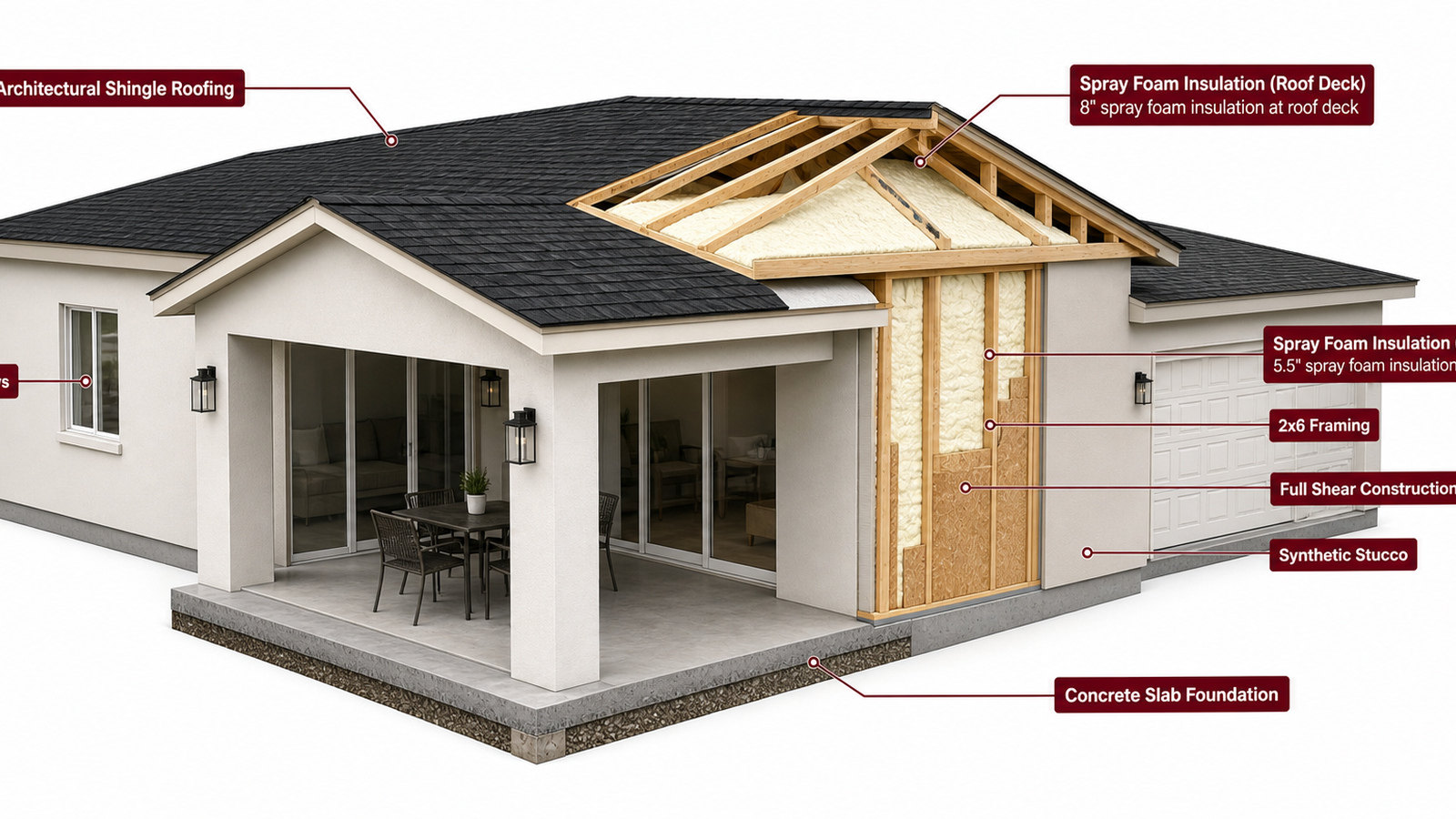

Use this cutaway as a visual guide to spatial relationships and building form. Final structure, systems, assemblies, and code details are developed during project-specific design and engineering.
